Intel Optane H10 512GB M.2 SSD
Here you will find a detailed speed, performance and benchmark test review. Tested was the M.2 NVMe SSD Optane H10 with 512GB (HBRPEKNX0202A01) from the brand Intel.
| Technical specifications (manufacturer information) | |
| Product image |
|
| Manufacturer | Intel |
| Model number | HBRPEKNX0202A01 |
| Capacity | 512 GB (27 GiB) |
| Read speed | 2300 MB/s |
| Write speed | 1300 MB/s |
| Interface | PCIe 3.0 x4 |
| Connector | M.2 2280 |
| Memory module (NAND) | QLC |
| DRAM cache | No |
| TBW (Total Bytes Written) | 150 terabyte |
| Warranty | 5 Years |
| Controller | Silicon Motion SM2263EN |
Compare product Compared to the test winner*
We put the Intel NVMe M.2 SSD through a detailed test. You can find the test result / test report here:
AS SSD Benchmark
Standard performance test
The standard test was performed with a 5 GB file. A total score of 2990 points was achieved.

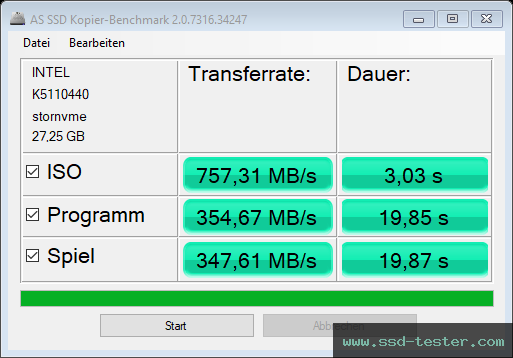

Copy performance test
A common everyday scenario is simulated here. Three test folders are created:
- ISO (folder with two large files)
- Program (folder with many small files)
- Game (folder with small and large files)
The three folders are copied using the Windows copy command (cache remains enabled). The real-world test from 08 April 2026 shows performance during simultaneous write and read operations. The lower the duration, the better.
| AS SSD Copy Benchmark | Transfer rate: | Duration: |
|---|---|---|
| ISO two large files |
757.31 MB/s |
3.03 s |
| Program typical program folder with many small files |
354.67 MB/s |
19.85 s |
| Game a game folder with small and large files |
347.61 MB/s |
19.87 s |
Compression performance test
Here, speed is measured depending on how compressible the data is.
CrystalDiskMark Benchmark
Similar to AS SSD, two sequential and two random performance tests are carried out here and the write and read speed (manufacturer specs: 2300 MB/s and 1300 MB/s) the Intel SSD is measured.
| CDM | Read [MB/s] | Write [MB/s] |
|---|---|---|
| SEQ1M Q8T1 |
1,444.67 |
368.45 |
| SEQ1M Q1T1 |
1,370.52 |
363.14 |
| RND4K Q32T16 |
1,404.26 |
349.60 |
| RND4K Q1T1 |
197.34 |
136.06 |
IOPS (Input/Output operations per second)
| CDM | Read [IOPS] | Write [IOPS] |
|---|---|---|
| SEQ1M Q8T1 |
1,377.70 |
351.40 |
| SEQ1M Q1T1 |
1,307.00 |
346.30 |
| RND4K Q32T16 |
342,836.00 |
85,350.60 |
| RND4K Q1T1 |
48,178.50 |
33,218.80 |
Average latency
| CDM | Read [µs] | Write [µs] |
|---|---|---|
| SEQ1M Q8T1 |
5,799.44 |
22,676.80 |
| SEQ1M Q1T1 |
764.63 |
2,884.63 |
| RND4K Q32T16 |
1,492.08 |
5,991.33 |
| RND4K Q1T1 |
20.61 |
29.95 |
ATTO Disk Benchmark
Here, a 256 MB file is written to the Intel NVMe M.2 SSD multiple times. The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster writing and reading usually becomes.
smartctl: Supported Power States & LBA Sizes
=== START OF INFORMATION SECTION === Model Number: INTEL HBRPEKNX0202AO Serial Number: BTTE118201CH512B-2 Firmware Version: K5110440 PCI Vendor/Subsystem ID: 0x8086 IEEE OUI Identifier: 0x5cd2e4 Controller ID: 0 NVMe Version: <1.2 Number of Namespaces: 1 Namespace 1 Size/Capacity: 29á260á513á280 [29,2 GB] Namespace 1 Formatted LBA Size: 512 Namespace 1 IEEE EUI-64: 5cd2e4 3aa15c0100 Local Time is: Wed Apr 08 10:36:36 2026 MS Firmware Updates (0x02): 1 Slot Optional Admin Commands (0x0006): Format Frmw_DL Optional NVM Commands (0x0046): Wr_Unc DS_Mngmt Timestmp Log Page Attributes (0x02): Cmd_Eff_Lg Maximum Data Transfer Size: 32 Pages Supported Power States St Op Max Active Idle RL RT WL WT Ent_Lat Ex_Lat 0 + 2.80W - - 0 0 0 0 1000000 30000 1 + 2.20W - - 0 1 0 1 1000000 30000 2 + 1.80W - - 0 2 0 2 1000000 30000 3 - 0.0080W - - 0 0 0 0 1150000 30000 Supported LBA Sizes (NSID 0x1) Id Fmt Data Metadt Rel_Perf 0 + 512 0 2
You can find information about the test system at the bottom of the homepage.
