Acer SA100 480GB SATA SSD
Here you will find a detailed speed, performance and benchmark test review. Tested was the SATA SSD SA100 with 480GB (SA100-480GB) from the brand Acer.
| Technical specifications (manufacturer information) | |
| Product image |
|
| Manufacturer | Acer |
| Model number | SA100-480GB |
| Capacity | 480 GB (447 GiB) |
| pSLC cache | 160 GB approx. |
| Read speed | 560 MB/s |
| Write speed | 493 MB/s |
| Interface | SATA 6 Gbps |
| Connector | 2.5" |
| Memory module (NAND) | TLC |
| TBW (Total Bytes Written) | 150 terabyte |
| Warranty | 3 Years |
| Controller | Silicon Motion SM2259XT |
Compare product Compared to the test winner*
v0.567a Drive: 0(ATA) OS: 10.0 build 19045 Model: Acer SSD SA100 480GB Fw : X0826A0 Size : 457862 MB [480.1 GB] From smart : [SMI2259XT] [X0826A0 00] [B58R0] Controller : SM2259XA bufferless FlashID: 0x2c,0xd3,0x8,0x32,0xe8,0x30,0x0,0x0 - Micron 232L(B58R) TLC 1024Gb/CE 1024Gb/die Channel: 2 CE : 2 TotDie : 4 Plane : 2 Die/Ce : 1 Ch map : 0x03 CE map : 0x05 Inter. : 2 First Fblock : 3 Total Fblock : 1701 Total Hblock : 7155 Fblock Per Ce : 1701 Fblock Per Die: 1701 Original Spare Block Count : 81 Vendor Marked Bad Block : 0 Bad Block From Pretest : 200
We put the Acer SATA SSD through a detailed test. You can find the test result / test report here:

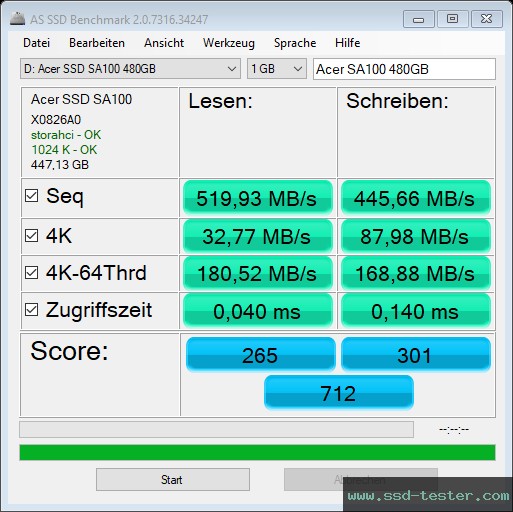

AS SSD Benchmark
Standard performance test
The standard test was performed with a 1 GB file. A total score of 712 points was achieved.
Copy performance test
A common everyday scenario is simulated here. Three test folders are created:
- ISO (folder with two large files)
- Program (folder with many small files)
- Game (folder with small and large files)
The three folders are copied using the Windows copy command (cache remains enabled). The real-world test from 25 April 2025 shows performance during simultaneous write and read operations. The lower the duration, the better.
| AS SSD Copy Benchmark | Transfer rate: | Duration: |
|---|---|---|
| ISO two large files |
923.46 MB/s |
1.16 s |
| Program typical program folder with many small files |
1,166.54 MB/s |
1.21 s |
| Game a game folder with small and large files |
1,821.49 MB/s |
0.76 s |

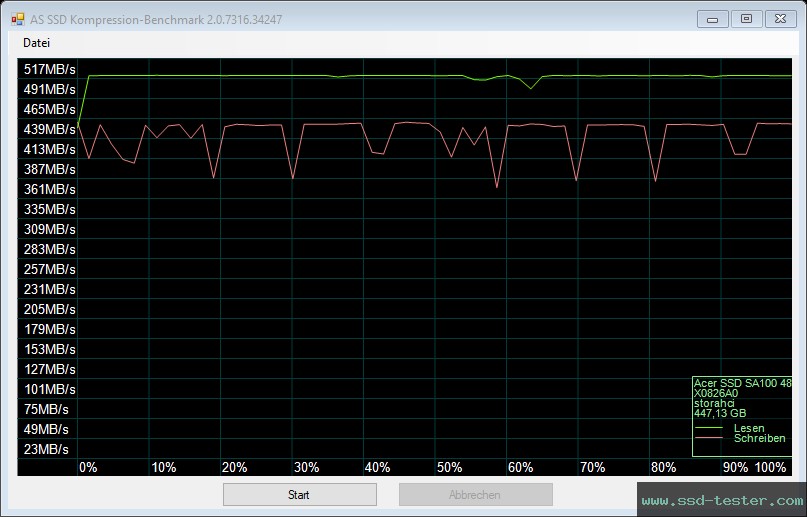

Compression performance test
Here, speed is measured depending on how compressible the data is.

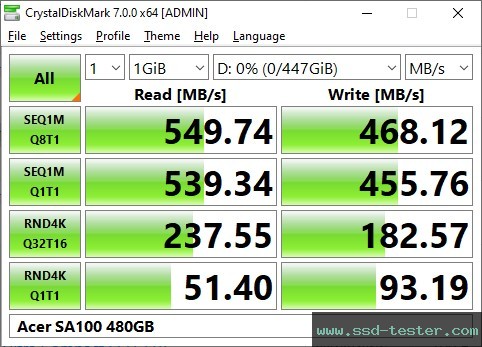

CrystalDiskMark Benchmark
Similar to AS SSD, two sequential and two random performance tests are carried out here and the write and read speed (manufacturer specs: 560 MB/s and 493 MB/s) the Acer SATA SSD is measured.
| CDM | Read [MB/s] | Write [MB/s] |
|---|---|---|
| SEQ1M Q8T1 |
549.74 |
468.12 |
| SEQ1M Q1T1 |
539.34 |
455.76 |
| RND4K Q32T16 |
237.55 |
182.57 |
| RND4K Q1T1 |
51.40 |
93.19 |
IOPS (Input/Output operations per second)
| CDM | Read [IOPS] | Write [IOPS] |
|---|---|---|
| SEQ1M Q8T1 |
524.30 |
446.40 |
| SEQ1M Q1T1 |
514.40 |
434.60 |
| RND4K Q32T16 |
57,996.60 |
44,571.80 |
| RND4K Q1T1 |
12,549.60 |
22,750.20 |
Average latency
| CDM | Read [µs] | Write [µs] |
|---|---|---|
| SEQ1M Q8T1 |
15,229.20 |
17,849.60 |
| SEQ1M Q1T1 |
1,943.88 |
2,298.85 |
| RND4K Q32T16 |
8,811.61 |
11,466.70 |
| RND4K Q1T1 |
79.56 |
43.83 |

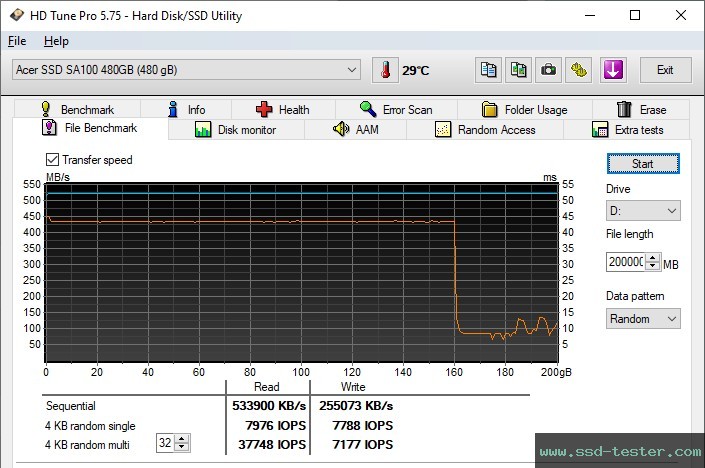

HD Tune Pro long-term test
A long-term test was performed to fully utilize the storage. You can see at what point the cache (if present) becomes full and write performance drops. A test file of 200 GB was written to the medium. After approx. 160 GB, the cache was full and performance was throttled.
The test file could at least be read with an average read speed of 534 MB/s and written at 255 MB/s.

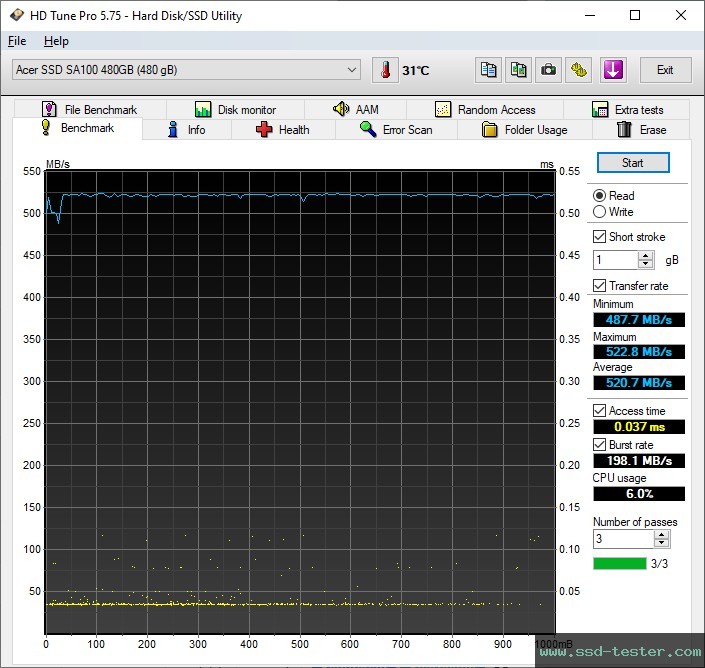

HD Tune Pro Benchmark
HD Tune writes a 1 GB file to the Acer SATA SSD. The transfer data of the read speed is displayed graphically. The minimum, maximum and average values are also determined. The measured access time and burst rate are also shown.

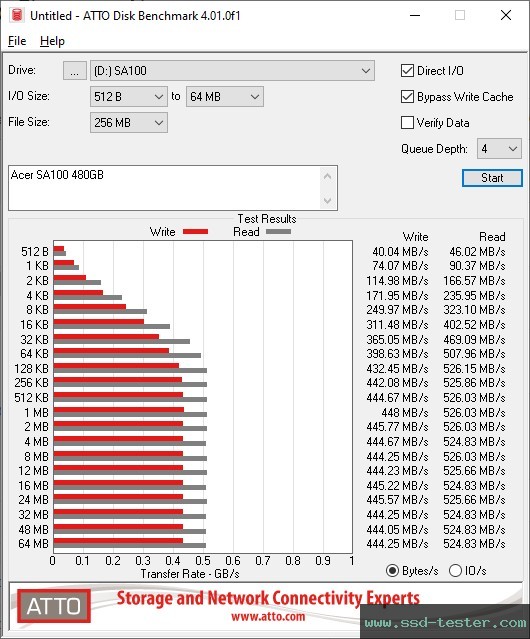

ATTO Disk Benchmark
Here, a 256 MB file is written to the Acer SATA SSD multiple times. The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster writing and reading usually becomes.

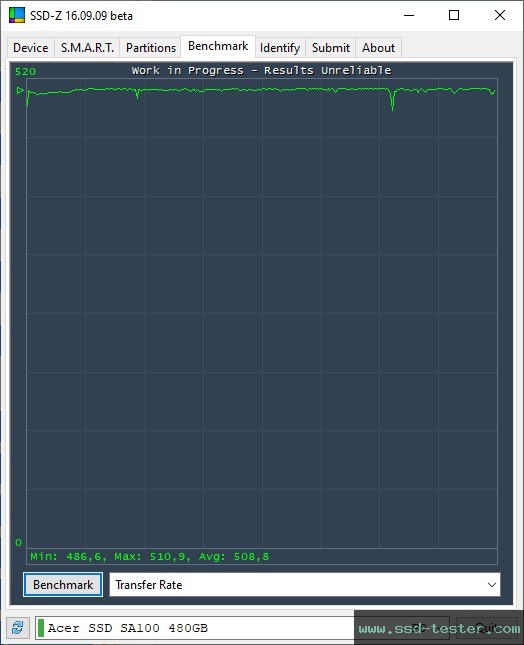

SSD-Z Benchmark
Similar to HD Tune, a 500 MB file is written to the Acer SATA SSD here. The transfer data is displayed. The more consistent the line, the better. Unfortunately, the tool no longer works correctly from around 4,000 MB/s and no line is displayed (and sometimes incorrect min/max data is shown).
You can find information about the test system at the bottom of the homepage.
