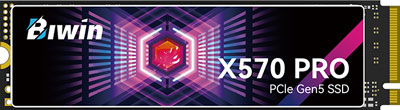

TEST: Biwin Black Opal X570 PRO 4TB M.2 SSD

Technical data
Manufacturer	Biwin
Model number	X570PRO-4TB
Storage capacity	4096 GB (3815 GiB)
pSLC-Cache	208 GB approx.
Read speed	14000 MB/s
Write speed	13000 MB/s
Interface	PCIe 5.0 x4
Connection	M.2 2280
Memory module (NAND)	TLC
DRAM Cache	✓ yes
TBW (Total Bytes Written)	3000 Terabyte
Controller	Silicon Motion SM2508
Price	ca. 290 USD (= 0,07 $ / GB)
Paid link	Buy on Amazon

Compare Product

Compared to the top performer*

Read speed

100 %

Write speed

100 %

*) Test result evaluated according to AS SSD Score within the same size.

This SSD is PS5 compatible. It can be used as expansion storage in a PlayStation 5 console.

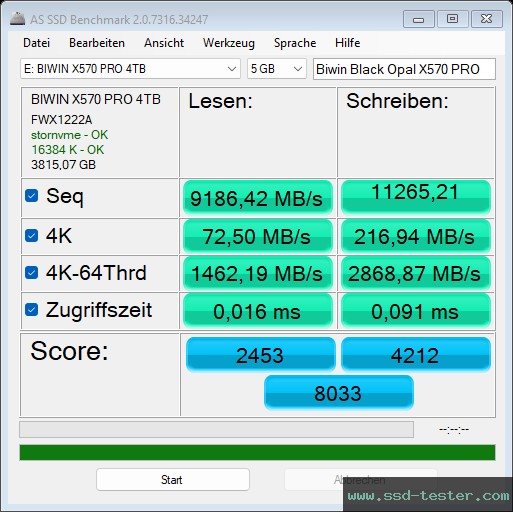

AS SSD Benchmark

Standard performance test

The standard test was performed using a 5 GB file. A total score of 8033 points was achieved.

AS SSD	Read:	Write:
Seq in megabytes per second	9186,42 MB/s	11265,20 MB/s
4K in megabytes per second	72,50 MB/s	216,94 MB/s
4K-64Thrd in megabytes per second	1462,19 MB/s	2868,87 MB/s
Access time in milliseconds	0,016 ms	0,091 ms
Score	2453	4212
Total score	8033

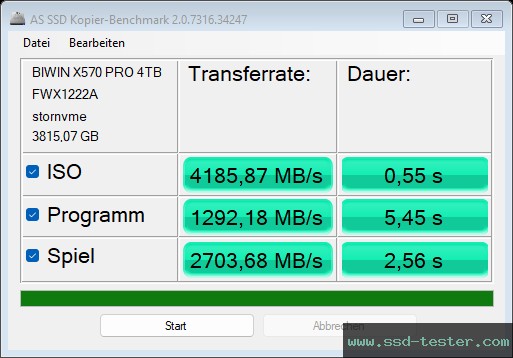

Copy Performance Test

A common everyday situation is simulated here. Three test folders are created:

• ISO (folder with two large files)
• Program (folder with many small files)
• Game (folder with small and large files)

The three folders are copied using the Windows Copy command (the cache remains enabled). The practical test of May 02, 2025 shows the performance for simultaneous write and read operations. The lower the duration, the better the performance.

AS SSD Copy-Benchmark	Transfer rate:	Duration:
ISO two large files	4185,87 MB/s	0,55 s
Program many small files	1292,18 MB/s	5,45 s
Game small and large files	2703,68 MB/s	2,56 s

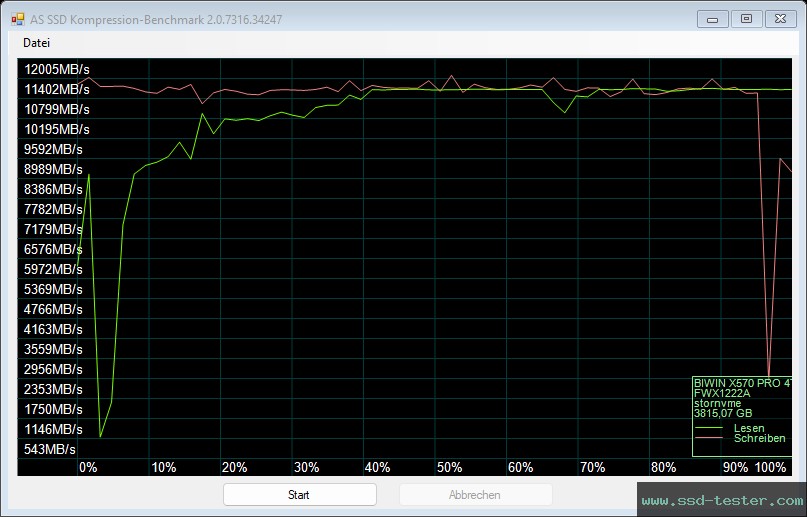

Compression Performance Test

This measures the write and read speed of the Biwin SSD, depending on the compressibility of the data (according to the manufacturer, these should be 14000 MB/s and 13000 MB/s respectively ).

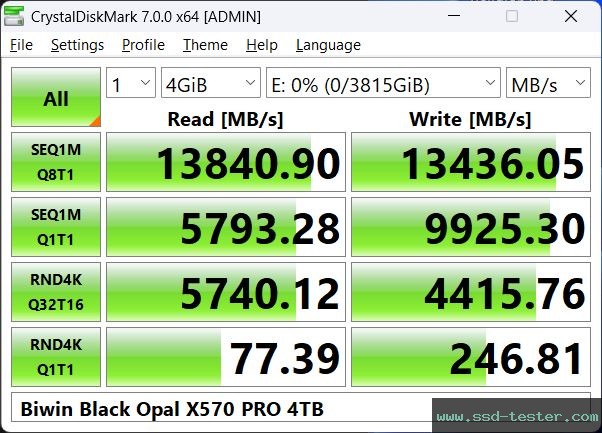

CrystalDiskMark Benchmark

Here, two sequential and two random performance tests are performed, similar to the ones performed on the AS SSD.

CDM	Read [MB/s]	Write [MB/s]
SEQ1M Q8T1	13840,90	13436,00
SEQ1M Q1T1	5793,28	9925,30
RND4K Q32T16	5740,12	4415,76
RND4K Q1T1	77,39	246,81

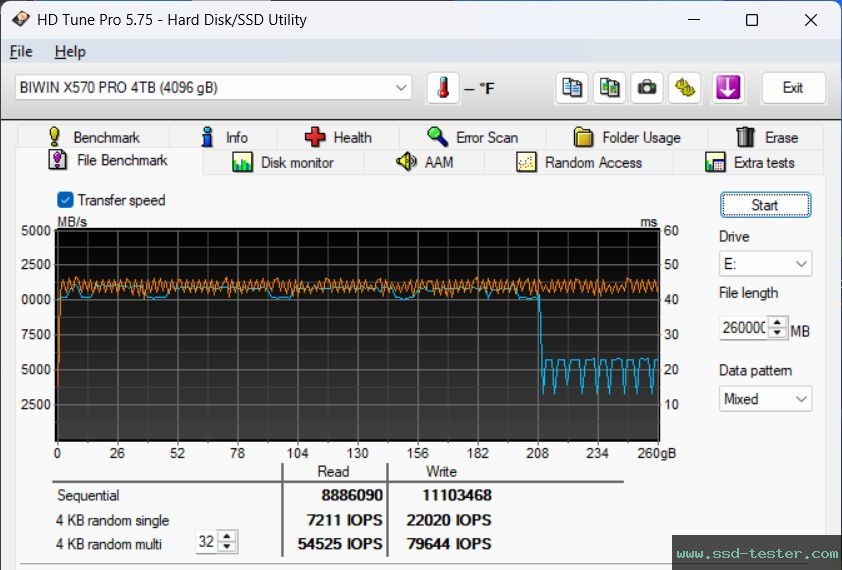

HD Tune Pro Endurance test

This is a long term test to make full use of the memory capacity. You can see when a cache is full and the writing performance decreases. A test file of 260 GB was written to the medium. After approx. 208 GB, the pSLC-Cache was full and the performance was throttled.
At least the test file could be read with an average write speed of 8886 MB/s and written with 11103 MB/s.

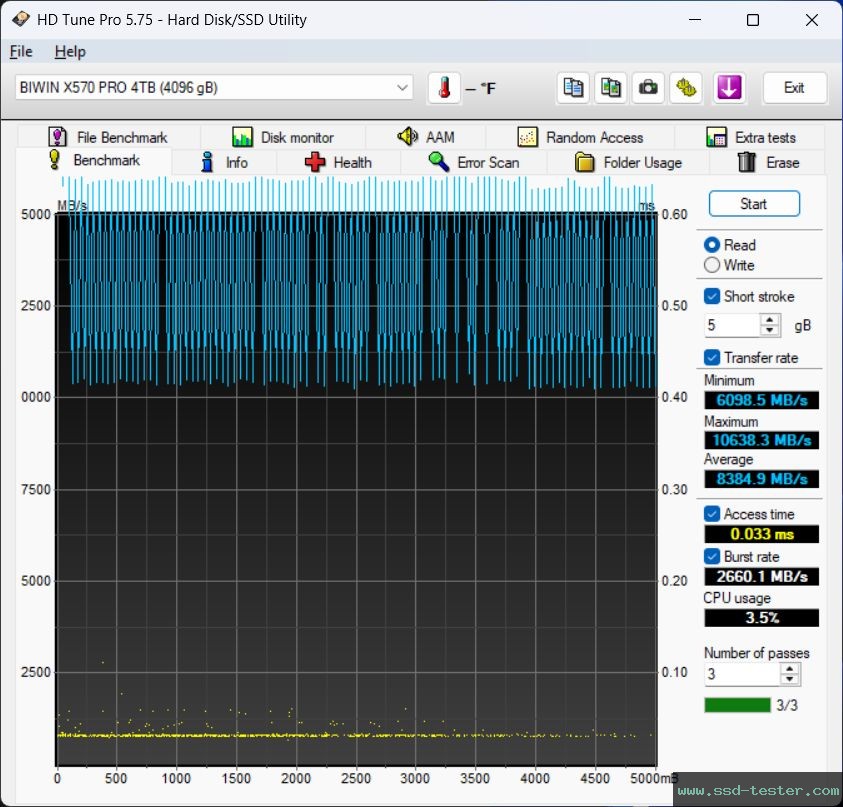

HD Tune Pro Benchmark

HD Tune writes a 5 GB file to the Biwin M.2 SSD. The transfer data of the read speed is displayed graphically. The minimum, maximum and average values are also determined. The determined access time and burst rate are also displayed.

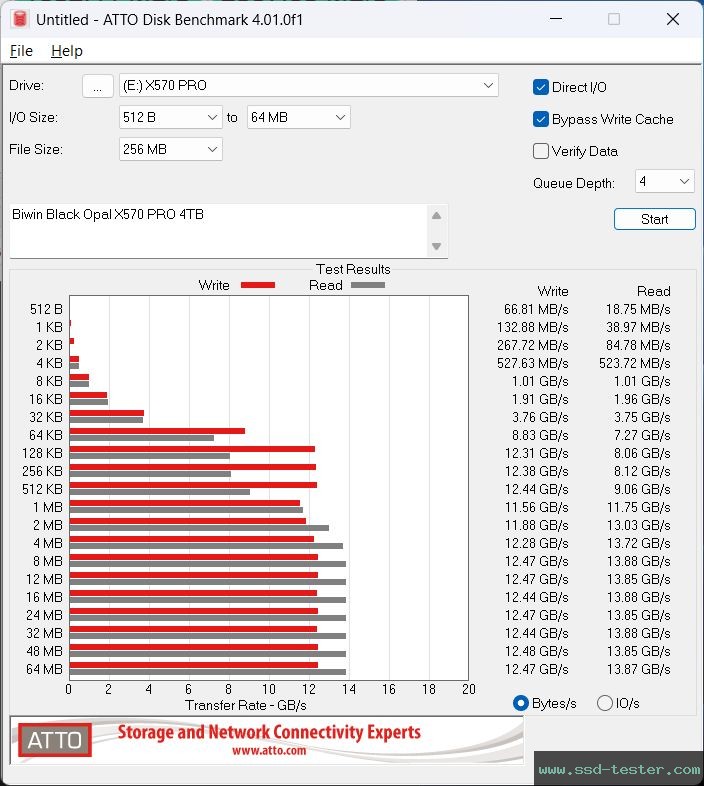

ATTO Disk Benchmark

Here, a 256 MB file is written several times to the Biwin M.2 SSD. The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster they were written and read.

SSD-Z Benchmark

Similar to HD Tune, a 500 MB file is written to the Biwin M.2 SSD here. The transfer data is displayed. The more constant the line, the better. Unfortunately, the tool does not work correctly above about 5,000 MB/s and no line (and sometimes wrong min and max data) is displayed.

The benchmark test was performed on May 02, 2025.
Information about the test system can be found at the bottom of the home page.
