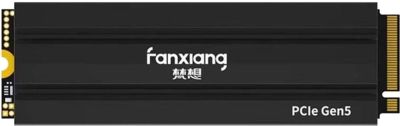

TEST: fanxiang S900 1TB M.2 SSD

Technical data
Manufacturer	fanxiang
Model number	S900-1TB
Storage capacity	1024 GB (931 GiB)
pSLC-Cache	105 GB approx.
Read speed	10000 MB/s
Write speed	10000 MB/s
Interface	PCIe 5.0 x4
Connection	M.2 2280
Memory module (NAND)	TLC
DRAM Cache	✓ yes
TBW (Total Bytes Written)	700 Terabyte
Controller	Phison PS5026-E26
Price	ca. 200 USD (= 0,20 $ / GB)
Paid link	Buy on Amazon

Compare Product

Compared to the top performer*

Read speed

82 %

Write speed

92 %

*) Test result evaluated according to AS SSD Score within the same size.

This SSD is PS5 compatible. It can be used as expansion storage in a PlayStation 5 console.

AS SSD Benchmark

Standard performance test

The standard test was performed using a 5 GB file. A total score of 9316 points was achieved.

AS SSD	Read:	Write:
Seq in megabytes per second	7676,28 MB/s	8344,69 MB/s
4K in megabytes per second	83,19 MB/s	277,44 MB/s
4K-64Thrd in megabytes per second	2966,79 MB/s	2402,20 MB/s
Access time in milliseconds	0,014 ms	0,173 ms
Score	3818	3514
Total score	9316

Copy Performance Test

A common everyday situation is simulated here. Three test folders are created:

• ISO (folder with two large files)
• Program (folder with many small files)
• Game (folder with small and large files)

The three folders are copied using the Windows Copy command (the cache remains enabled). The practical test of July 27, 2023 shows the performance for simultaneous write and read operations. The lower the duration, the better the performance.

AS SSD Copy-Benchmark	Transfer rate:	Duration:
ISO two large files	4952,82 MB/s	0,46 s
Program many small files	511,21 MB/s	13,77 s
Game small and large files	767,83 MB/s	9,00 s

Compression Performance Test

This measures the write and read speed of the the fanxiang SSDSSD is measured depending on the compressibility of the data (according to the manufacturer, these should be 10000MB/s and 10000MB/s respectively).

CrystalDiskMark Benchmark

Here, two sequential and two random performance tests are performed, similar to the ones performed on the AS SSD.

CDM	Read [MB/s]	Write [MB/s]
SEQ1M Q8T1	9633,17	8858,33
SEQ1M Q1T1	7497,73	8840,88
RND4K Q32T16	5439,25	4328,44
RND4K Q1T1	83,13	318,72

HD Tune Pro Endurance test

This is a long term test to make full use of the memory capacity. You can see when a cache is full and the writing performance decreases. A test file of 200 GB was written to the medium. After approx. 105 GB, the pSLC-Cache was full and the performance was throttled.
At least the test file could be read with an average write speed of 7713 MB/s and written with 2932 MB/s.

HD Tune Pro Benchmark

HD Tune writes a 5 GB file to the fanxiang M.2 SSD. The transfer data of the read speed is displayed graphically. The minimum, maximum and average values are also determined. The determined access time and burst rate are also displayed.

ATTO Disk Benchmark

Here, a 256 MB file is written several times to the fanxiang M.2 SSD . The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster they can be written and read.

SSD-Z Benchmark

Similar to HD Tune, a 500 MB file is written to the fanxiang M.2 SSD here. is written. The transfer data is displayed. The more constant the line, the better. Unfortunately the tool does not work correctly above about 5,000 MB/s and no line (and sometimes wrong min and max data) is displayed.

The benchmark test was performed on July 27, 2023.
Information about the test system can be found at the bottom of the home page.
