GiGimundo G3500 2TB M.2 SSD
Here you will find a detailed speed, performance and benchmark test review. Tested was the M.2 NVMe SSD G3500 with 2TB (G3500-2T-GR-EP) from the brand GiGimundo.
| Technical specifications (manufacturer information) | |
| Product image |
|
| Manufacturer | GiGimundo |
| Model number | G3500-2T-GR-EP |
| Capacity | 2048 GB (1908 GiB) |
| pSLC cache | >300 GB approx. |
| Read speed | 3600 MB/s |
| Write speed | 2400 MB/s |
| Interface | PCIe 3.0 x4 |
| Connector | M.2 2280 |
| DRAM cache | No |
| TBW (Total Bytes Written) | 600 terabyte |
| Warranty | 1 Years |
| Controller | Maxio MAP1202 |
Compare product Compared to the test winner*
v0.37a OS: 10.0 build 19045 Drive : 0(NVME) Scsi : 2 Driver : W10 Model : GGM Fw : SN19644 HMB : 16384 - 16384 KB (Enabled, 16 M) Size : 1953514 MB [2048.4 GB] LBA Size: 512 AdminCmd: 0x00 0x01 0x02 0x04 0x05 0x06 0x08 0x09 0x0A 0x0C 0x10 0x11 0x14 0x80 0x81 0x82 0x84 0xC1 0xC2 I/O Cmd : 0x00 0x01 0x02 0x04 0x05 0x08 0x09 Firmware id string[0C0] : MKSSD_101000000195153100,Mar 28 2024,12:09:51,MAP1202,KCIUCA4H Project id string[080] : r:/code/Falcon/1202-Intel-N38A-SVN17096-ECC19515 Controller : MAP1202 NAND string : PF29Fxx2AxCQKA NAND MaxPE cycles : 12177 NAND Freq : 60945 Channel number : 15 CE number : 16 Total bank : 180 Flash type : (47) Blocks/CE : 60934 Pages/Block : 9739 Page size : 0 Planes(?) : 47 Die/CE : 238 HSPD capacity : 58783 HSPD blocks : 12049 Normal blocks : 58272
We put the GiGimundo NVMe M.2 SSD through a detailed test. You can find the test result / test report here:

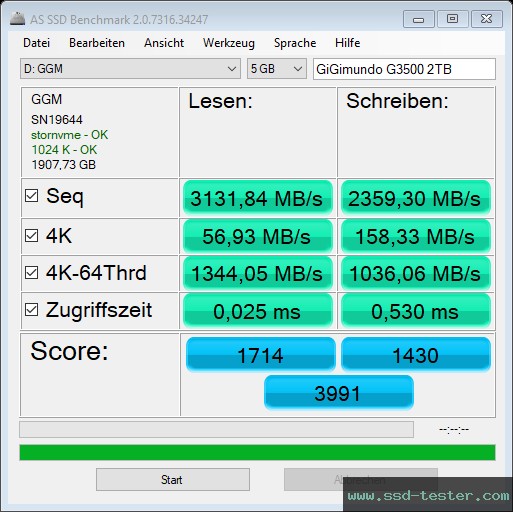

AS SSD Benchmark
Standard performance test
The standard test was performed with a 5 GB file. A total score of 3991 points was achieved.
Copy performance test
A common everyday scenario is simulated here. Three test folders are created:
- ISO (folder with two large files)
- Program (folder with many small files)
- Game (folder with small and large files)
The three folders are copied using the Windows copy command (cache remains enabled). The real-world test from 26 June 2025 shows performance during simultaneous write and read operations. The lower the duration, the better.
| AS SSD Copy Benchmark | Transfer rate: | Duration: |
|---|---|---|
| ISO two large files |
2,037.63 MB/s |
1.13 s |
| Program typical program folder with many small files |
1,101.56 MB/s |
6.39 s |
| Game a game folder with small and large files |
1,939.48 MB/s |
3.56 s |

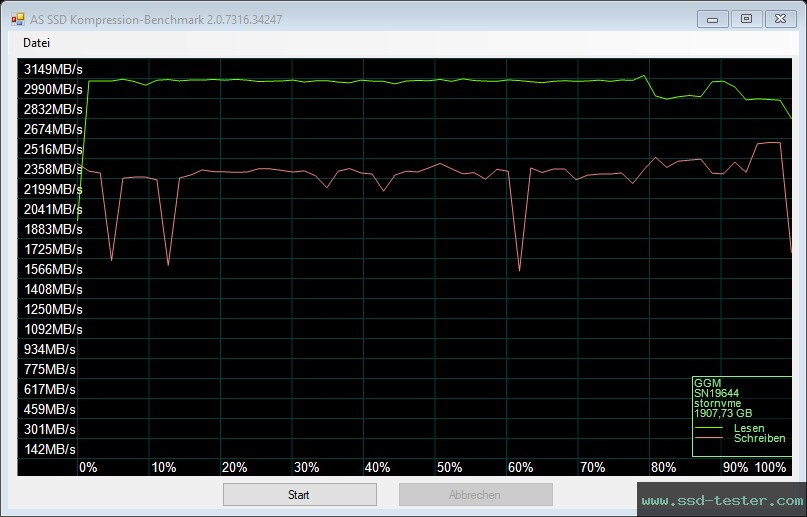

Compression performance test
Here, speed is measured depending on how compressible the data is.

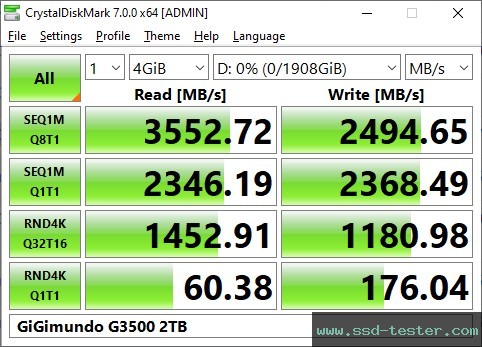

CrystalDiskMark Benchmark
Similar to AS SSD, two sequential and two random performance tests are carried out here and the write and read speed (manufacturer specs: 3600 MB/s and 2400 MB/s) the GiGimundo SSD is measured.
| CDM | Read [MB/s] | Write [MB/s] |
|---|---|---|
| SEQ1M Q8T1 |
3,552.72 |
2,494.65 |
| SEQ1M Q1T1 |
2,346.19 |
2,368.49 |
| RND4K Q32T16 |
1,452.91 |
1,180.98 |
| RND4K Q1T1 |
60.38 |
176.04 |
IOPS (Input/Output operations per second)
| CDM | Read [IOPS] | Write [IOPS] |
|---|---|---|
| SEQ1M Q8T1 |
3,388.10 |
2,379.10 |
| SEQ1M Q1T1 |
2,237.50 |
2,258.80 |
| RND4K Q32T16 |
354,714.00 |
288,325.00 |
| RND4K Q1T1 |
14,740.20 |
42,979.50 |
Average latency
| CDM | Read [µs] | Write [µs] |
|---|---|---|
| SEQ1M Q8T1 |
2,359.14 |
3,356.66 |
| SEQ1M Q1T1 |
446.71 |
442.44 |
| RND4K Q32T16 |
1,441.96 |
1,773.67 |
| RND4K Q1T1 |
67.72 |
23.16 |

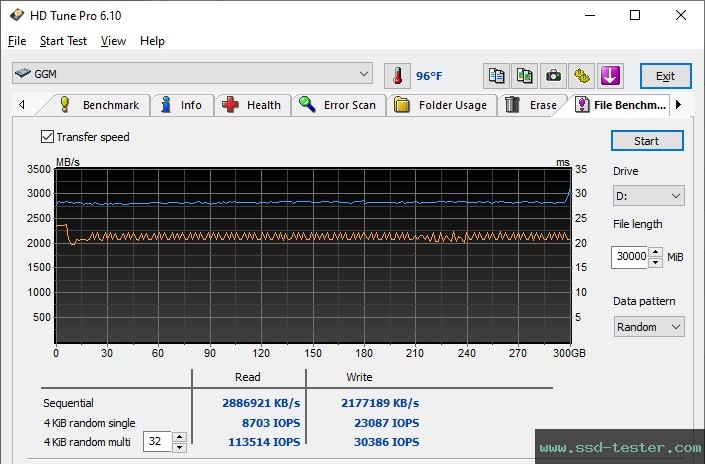

HD Tune Pro long-term test
A long-term test was performed to fully utilize the storage. You can see at what point the cache (if present) becomes full and write performance drops. A test file of 300 GB was written to the medium. The exact cache size could not be determined because the test file did not exhaust (push to the limit) the cache. The test file could at least be read with an average read speed of 2,887 MB/s and written at 2,177 MB/s.

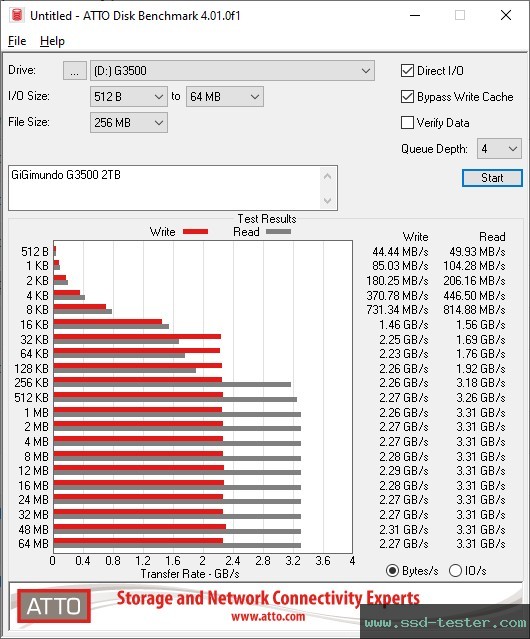

ATTO Disk Benchmark
Here, a 256 MB file is written to the GiGimundo NVMe M.2 SSD multiple times. The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster writing and reading usually becomes.

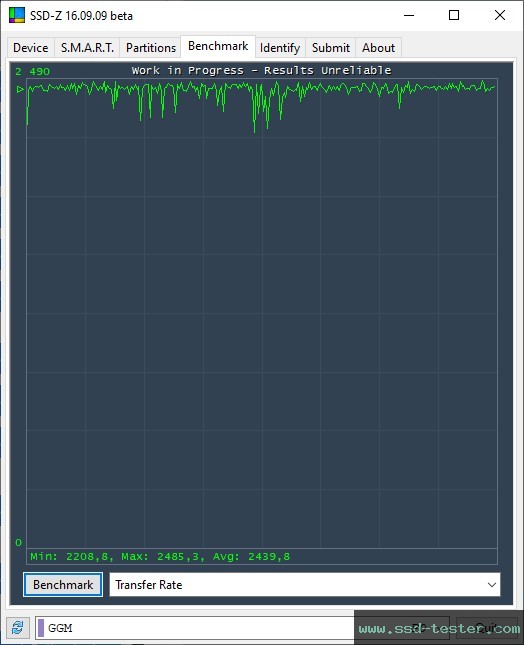

SSD-Z Benchmark
Similar to HD Tune, a 500 MB file is written to the GiGimundo NVMe M.2 SSD here. The transfer data is displayed. The more consistent the line, the better. Unfortunately, the tool no longer works correctly from around 4,000 MB/s and no line is displayed (and sometimes incorrect min/max data is shown).
You can find information about the test system at the bottom of the homepage.
