KingSpec NX 1TB M.2 SSD
Here you will find a detailed speed, performance and benchmark test review. Tested was the M.2 NVMe SSD NX with 1TB (NX-1TB 2280) from the brand KingSpec.
| Technical specifications (manufacturer information) | |
| Product image |
|
| Manufacturer | KingSpec |
| Model number | NX-1TB 2280 |
| Capacity | 1024 GB (954 GiB) |
| pSLC cache | 256 GB approx. |
| Read speed | 3500 MB/s |
| Write speed | 2500 MB/s |
| Interface | PCIe 3.0 x4 |
| Connector | M.2 2280 |
| Memory module (NAND) | TLC |
| DRAM cache | No |
| TBW (Total Bytes Written) | 1000 terabyte |
| Warranty | 3 Years |
| Controller | Realtek RL6817 |
Compare product Compared to the test winner*
v0.15a OS: 10.0 build 19045 Drive : 0(NVME) Scsi : 2 Driver : W10 Model : NX-1TB 2280 Fw : VF100C6B HMB : 32768 - 65536 KB (Enabled, 64 M) Size : 976762 MB [1024.2 GB] LBA Size: 512 Fw Str : [REALTEK_RL6817 ] [] Bank00: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0,0x0 - Intel TLC Bank08: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0,0x0 - Intel TLC Bank16: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0,0x0 - Intel TLC Bank24: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0,0x0 - Intel TLC Bank40: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0,0x0 - Intel TLC Bank56: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0,0x0 - Intel TLC
We put the KingSpec NVMe M.2 SSD through a detailed test. You can find the test result / test report here:

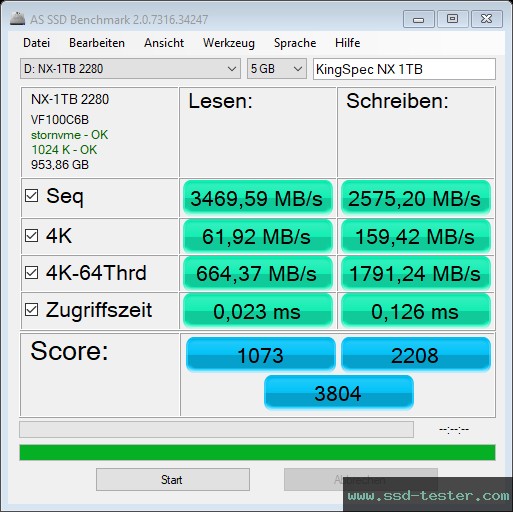

AS SSD Benchmark
Standard performance test
The standard test was performed with a 5 GB file. A total score of 3804 points was achieved.

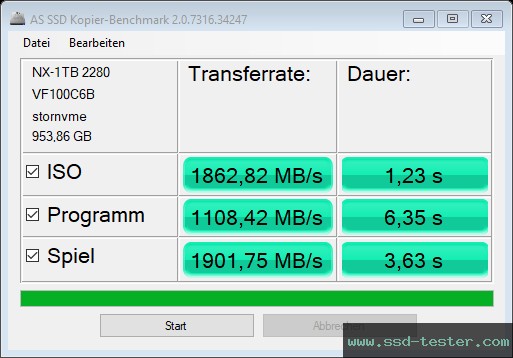

Copy performance test
A common everyday scenario is simulated here. Three test folders are created:
- ISO (folder with two large files)
- Program (folder with many small files)
- Game (folder with small and large files)
The three folders are copied using the Windows copy command (cache remains enabled). The real-world test from 17 July 2025 shows performance during simultaneous write and read operations. The lower the duration, the better.
| AS SSD Copy Benchmark | Transfer rate: | Duration: |
|---|---|---|
| ISO two large files |
1,862.82 MB/s |
1.23 s |
| Program typical program folder with many small files |
1,108.42 MB/s |
6.35 s |
| Game a game folder with small and large files |
1,901.75 MB/s |
3.63 s |

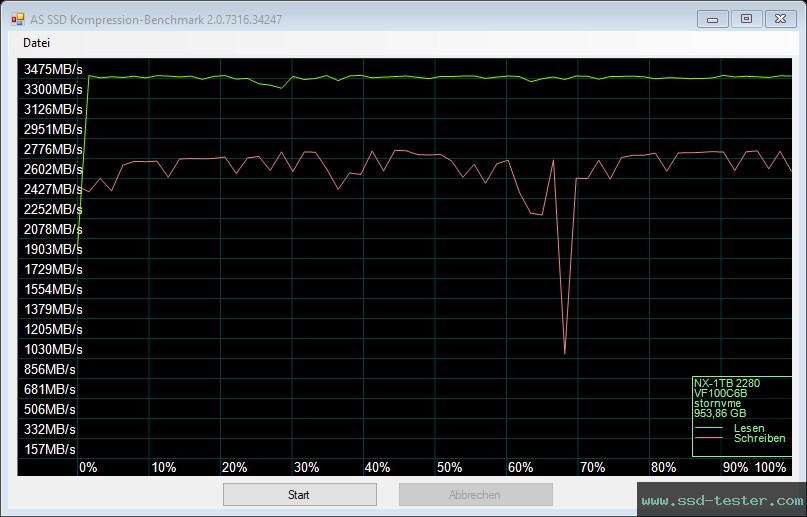

Compression performance test
Here, speed is measured depending on how compressible the data is.

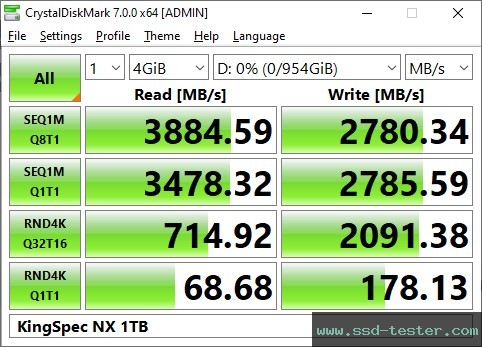

CrystalDiskMark Benchmark
Similar to AS SSD, two sequential and two random performance tests are carried out here and the write and read speed (manufacturer specs: 3500 MB/s and 2500 MB/s) the KingSpec SSD is measured.
| CDM | Read [MB/s] | Write [MB/s] |
|---|---|---|
| SEQ1M Q8T1 |
3,884.59 |
2,780.34 |
| SEQ1M Q1T1 |
3,478.32 |
2,785.59 |
| RND4K Q32T16 |
714.92 |
2,091.38 |
| RND4K Q1T1 |
68.68 |
178.13 |
IOPS (Input/Output operations per second)
| CDM | Read [IOPS] | Write [IOPS] |
|---|---|---|
| SEQ1M Q8T1 |
3,704.60 |
2,651.50 |
| SEQ1M Q1T1 |
3,317.20 |
2,656.50 |
| RND4K Q32T16 |
174,540.00 |
510,590.00 |
| RND4K Q1T1 |
16,767.80 |
43,488.50 |
Average latency
| CDM | Read [µs] | Write [µs] |
|---|---|---|
| SEQ1M Q8T1 |
2,157.80 |
3,012.20 |
| SEQ1M Q1T1 |
301.28 |
376.18 |
| RND4K Q32T16 |
2,924.13 |
1,000.55 |
| RND4K Q1T1 |
59.51 |
22.88 |

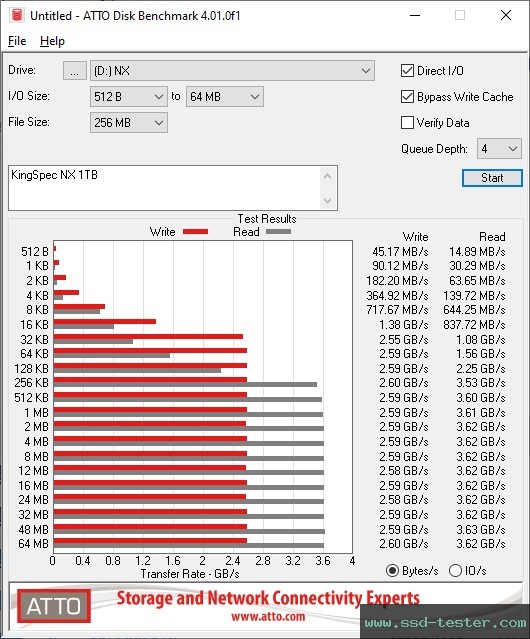

ATTO Disk Benchmark
Here, a 256 MB file is written to the KingSpec NVMe M.2 SSD multiple times. The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster writing and reading usually becomes.
SSD-Z Benchmark
Similar to HD Tune, a 500 MB file is written to the KingSpec NVMe M.2 SSD here. The transfer data is displayed. The more consistent the line, the better. Unfortunately, the tool no longer works correctly from around 4,000 MB/s and no line is displayed (and sometimes incorrect min/max data is shown).
You can find information about the test system at the bottom of the homepage.
