TEST: Kingston FURY Renegade G5 2TB M.2 SSD

Technical data
Manufacturer	Kingston
Model number	SFYR2S/2T0
Storage capacity	2048 GB (1908 GiB)
pSLC-Cache	>400 GB approx.
Read speed	14700 MB/s
Write speed	14000 MB/s
Interface	PCIe 5.0 x4
Connection	M.2 2280
Memory module (NAND)	TLC
DRAM Cache	✓ yes
TBW (Total Bytes Written)	2000 Terabyte
Controller	Silicon Motion SM2508
Price	ca. 330 USD (= 0,16 $ / GB)
Paid link	Buy on Amazon

Compare Product

Compared to the top performer*

Read speed

100 %

Write speed

100 %

*) Test result evaluated according to AS SSD Score within the same size.

This SSD is PS5 compatible. It can be used as expansion storage in a PlayStation 5 console.

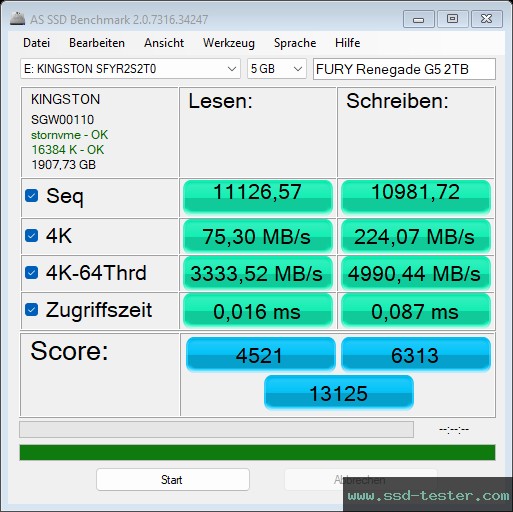

AS SSD Benchmark

Standard performance test

The standard test was performed using a 5 GB file. A total score of 13125 points was achieved.

AS SSD	Read:	Write:
Seq in megabytes per second	11126,60 MB/s	10981,70 MB/s
4K in megabytes per second	75,30 MB/s	224,07 MB/s
4K-64Thrd in megabytes per second	3333,52 MB/s	4990,44 MB/s
Access time in milliseconds	0,016 ms	0,087 ms
Score	4521	6313
Total score	13125

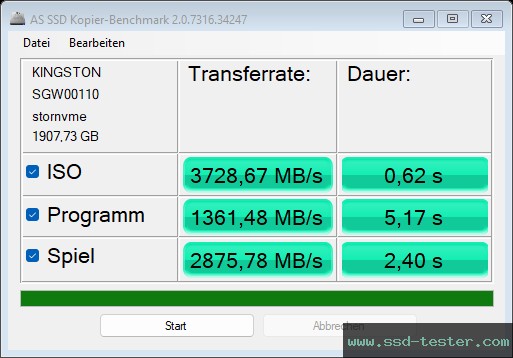

Copy Performance Test

A common everyday situation is simulated here. Three test folders are created:

• ISO (folder with two large files)
• Program (folder with many small files)
• Game (folder with small and large files)

The three folders are copied using the Windows Copy command (the cache remains enabled). The practical test of June 05, 2025 shows the performance for simultaneous write and read operations. The lower the duration, the better the performance.

AS SSD Copy-Benchmark	Transfer rate:	Duration:
ISO two large files	3728,67 MB/s	0,62 s
Program many small files	1361,48 MB/s	5,17 s
Game small and large files	2875,78 MB/s	2,40 s

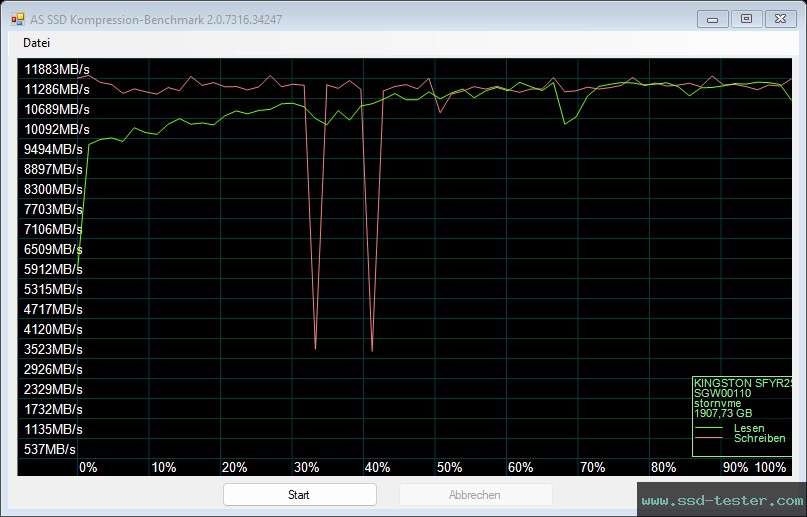

Compression Performance Test

This measures the write and read speed of the Kingston SSD, depending on the compressibility of the data (according to the manufacturer, these should be 14700 MB/s and 14000 MB/s respectively ).

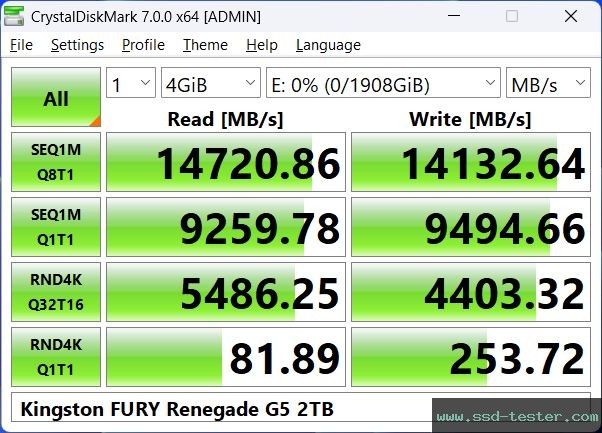

CrystalDiskMark Benchmark

Here, two sequential and two random performance tests are performed, similar to the ones performed on the AS SSD.

CDM	Read [MB/s]	Write [MB/s]
SEQ1M Q8T1	14720,90	14132,60
SEQ1M Q1T1	9259,78	9494,66
RND4K Q32T16	5486,25	4403,32
RND4K Q1T1	81,89	253,72

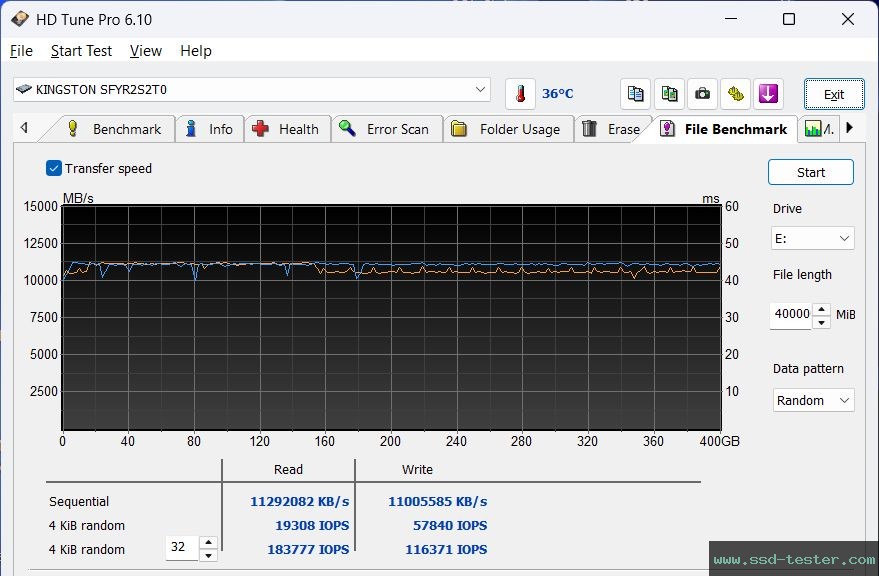

HD Tune Pro Endurance test

This is a long term test to make full use of the memory capacity. You can see when a cache is full and the writing performance decreases. A test file of 400 GB was written to the medium. The exact cache size could not be determined, because the test file did not exhaust the cache (brought it to the limit). At least the test file could be read with an average write speed of 11292 MB/s and written with 11006 MB/s.

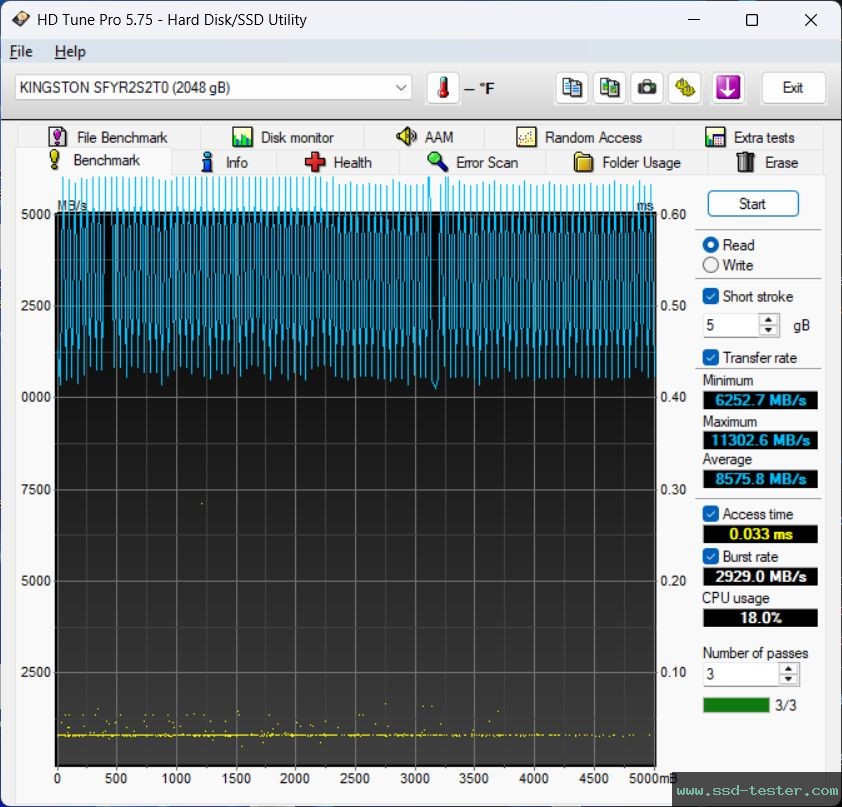

HD Tune Pro Benchmark

HD Tune writes a 5 GB file to the Kingston M.2 SSD. The transfer data of the read speed is displayed graphically. The minimum, maximum and average values are also determined. The determined access time and burst rate are also displayed.

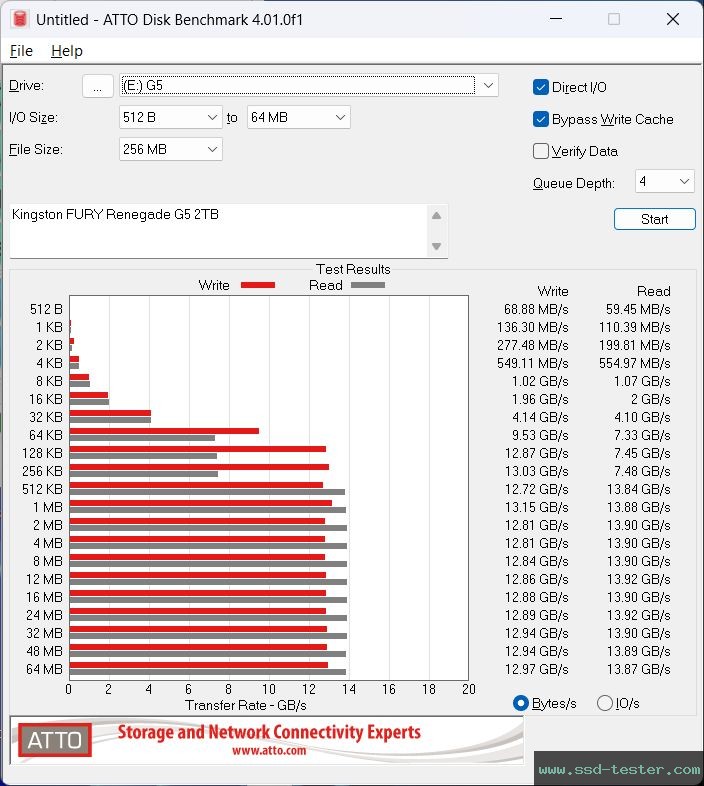

ATTO Disk Benchmark

Here, a 256 MB file is written several times to the Kingston M.2 SSD. The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster they were written and read.

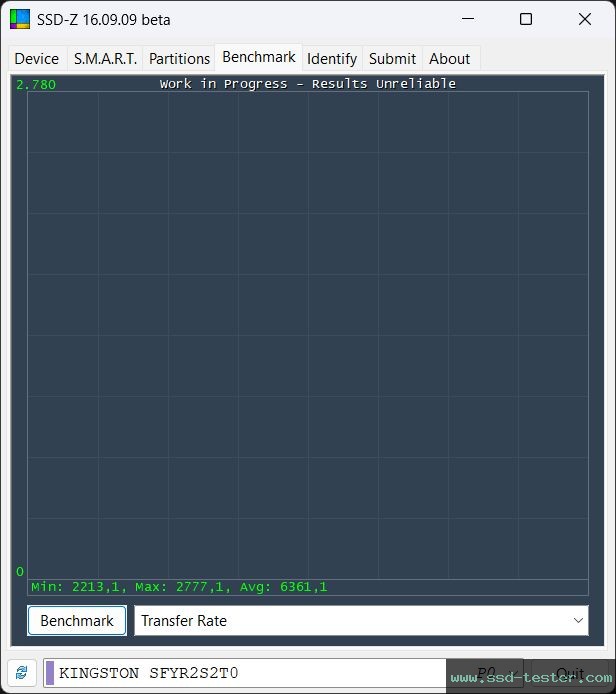

SSD-Z Benchmark

Similar to HD Tune, a 500 MB file is written to the Kingston M.2 SSD here. The transfer data is displayed. The more constant the line, the better. Unfortunately, the tool does not work correctly above about 5,000 MB/s and no line (and sometimes wrong min and max data) is displayed.

The benchmark test was performed on June 05, 2025.
Information about the test system can be found at the bottom of the home page.
