KIOXIA EXCERIA Plus G4 2TB M.2 SSD
Here you will find a detailed speed, performance and benchmark test review. Tested was the M.2 NVMe SSD EXCERIA Plus G4 with 2TB (LVD10Z002TG8) from the brand KIOXIA.
| Technical specifications (manufacturer information) | |
| Product image |
|
| Manufacturer | KIOXIA |
| Model number | LVD10Z002TG8 |
| Capacity | 2048 GB (1863 GiB) |
| pSLC cache | >400 GB approx. |
| Read speed | 10000 MB/s |
| Write speed | 8200 MB/s |
| Interface | PCIe 5.0 x4 |
| Connector | M.2 2280 |
| Memory module (NAND) | TLC |
| DRAM cache | No |
| TBW (Total Bytes Written) | 1200 terabyte |
| Warranty | 5 Years |
| Controller | Phison PS5031-E31T |
Compare product Compared to the test winner*
We put the KIOXIA NVMe M.2 SSD through a detailed test. You can find the test result / test report here:

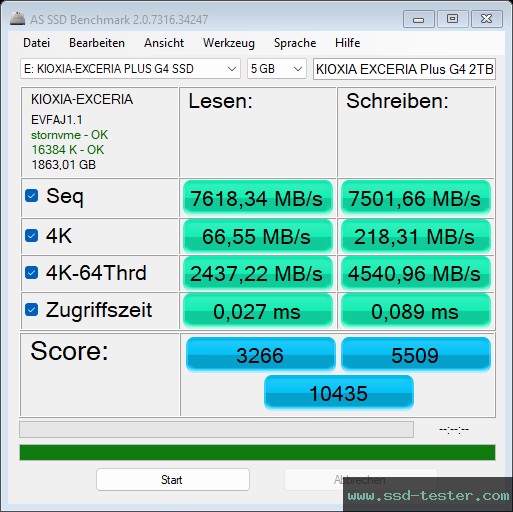

AS SSD Benchmark
Standard performance test
The standard test was performed with a 5 GB file. A total score of 10435 points was achieved.
Copy performance test
A common everyday scenario is simulated here. Three test folders are created:
- ISO (folder with two large files)
- Program (folder with many small files)
- Game (folder with small and large files)
The three folders are copied using the Windows copy command (cache remains enabled). The real-world test from 30 June 2025 shows performance during simultaneous write and read operations. The lower the duration, the better.
| AS SSD Copy Benchmark | Transfer rate: | Duration: |
|---|---|---|
| ISO two large files |
3,885.33 MB/s |
0.59 s |
| Program typical program folder with many small files |
1,266.89 MB/s |
5.56 s |
| Game a game folder with small and large files |
2,405.50 MB/s |
2.87 s |

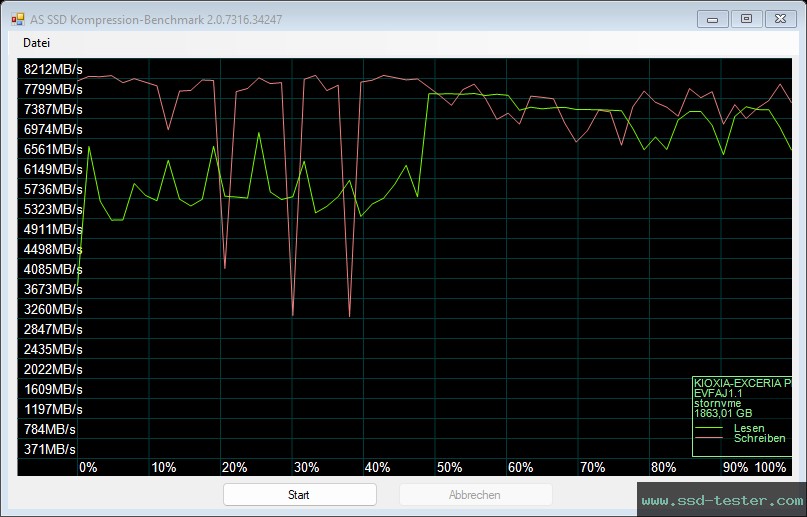

Compression performance test
Here, speed is measured depending on how compressible the data is.

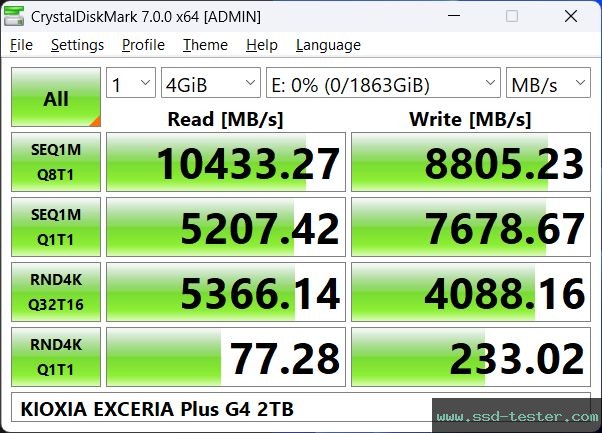

CrystalDiskMark Benchmark
Similar to AS SSD, two sequential and two random performance tests are carried out here and the write and read speed (manufacturer specs: 10000 MB/s and 8200 MB/s) the KIOXIA SSD is measured.
| CDM | Read [MB/s] | Write [MB/s] |
|---|---|---|
| SEQ1M Q8T1 |
10,433.30 |
8,805.23 |
| SEQ1M Q1T1 |
5,207.42 |
7,678.67 |
| RND4K Q32T16 |
5,366.14 |
4,088.16 |
| RND4K Q1T1 |
77.28 |
233.02 |
IOPS (Input/Output operations per second)
| CDM | Read [IOPS] | Write [IOPS] |
|---|---|---|
| SEQ1M Q8T1 |
9,949.90 |
8,397.30 |
| SEQ1M Q1T1 |
4,966.20 |
7,323.00 |
| RND4K Q32T16 |
1,310,090.00 |
998,087.00 |
| RND4K Q1T1 |
18,867.70 |
56,890.40 |
Average latency
| CDM | Read [µs] | Write [µs] |
|---|---|---|
| SEQ1M Q8T1 |
803.50 |
951.32 |
| SEQ1M Q1T1 |
201.23 |
136.42 |
| RND4K Q32T16 |
378.30 |
512.55 |
| RND4K Q1T1 |
52.91 |
17.49 |

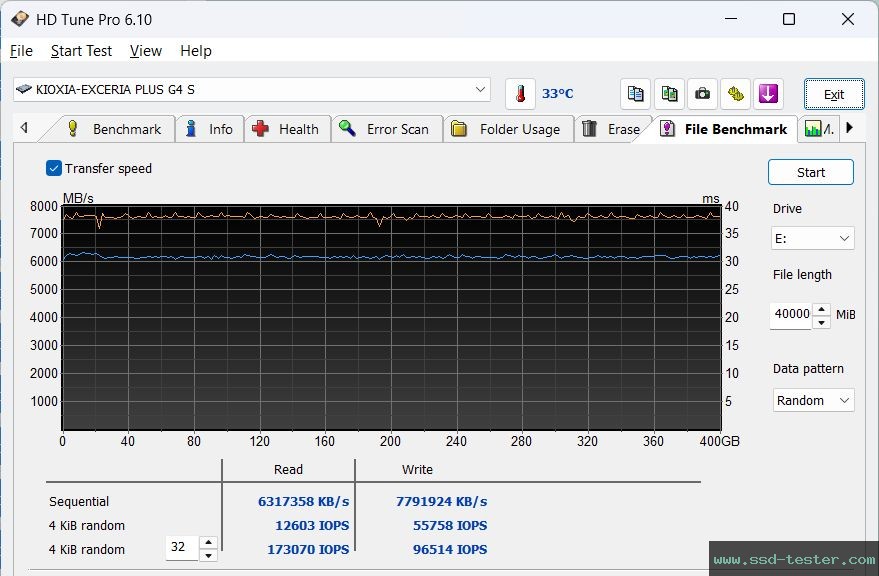

HD Tune Pro long-term test
A long-term test was performed to fully utilize the storage. You can see at what point the cache (if present) becomes full and write performance drops. A test file of 400 GB was written to the medium. The exact cache size could not be determined because the test file did not exhaust (push to the limit) the cache. The test file could at least be read with an average read speed of 6,163 MB/s and written at 7,764 MB/s.

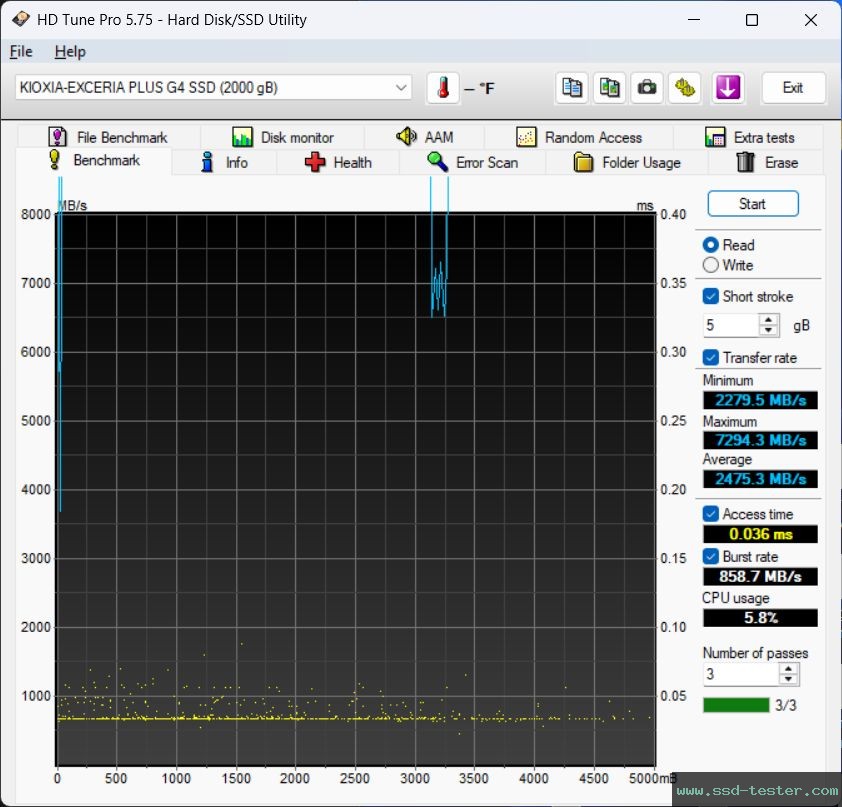

HD Tune Pro Benchmark
HD Tune writes a 5 GB file to the KIOXIA NVMe M.2 SSD. The transfer data of the read speed is displayed graphically. The minimum, maximum and average values are also determined. The measured access time and burst rate are also shown.

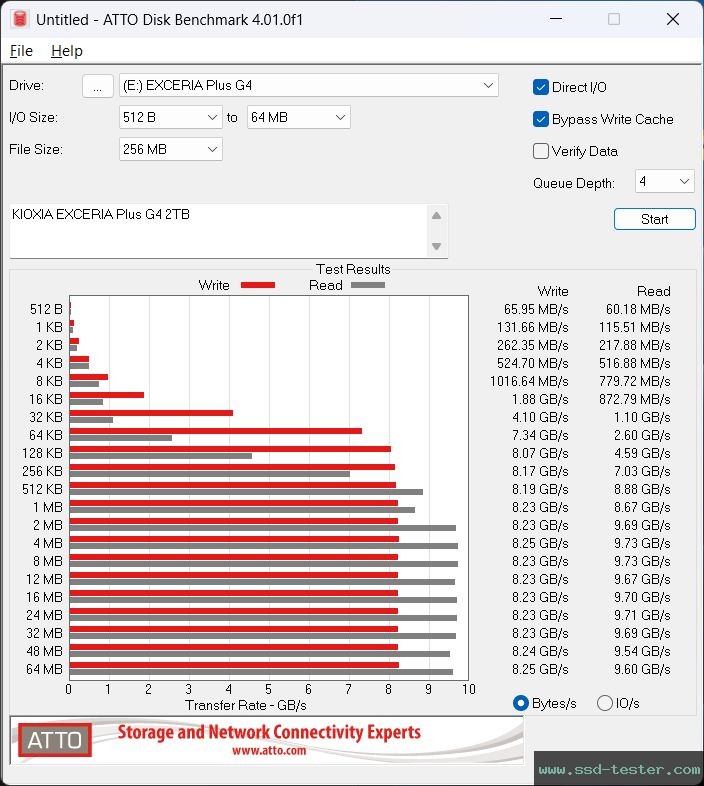

ATTO Disk Benchmark
Here, a 256 MB file is written to the KIOXIA NVMe M.2 SSD multiple times. The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster writing and reading usually becomes.
You can find information about the test system at the bottom of the homepage.
