ORICO J-10 1TB M.2 SSD

Here you will find a detailed speed, performance and benchmark test review. Tested was the M.2 NVMe SSD J-10 with 1TB (NEWJ10-1TB-BL-BP) from the brand ORICO.

Performance score
3057
Price/GB
n/a
Read
3,100 MB/s
Write
1,900 MB/s
Connector
M.2 2280
Interface
PCIe 3.0 x4
Technical specifications (manufacturer information)

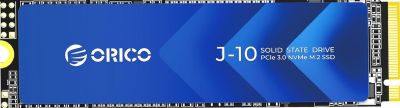

Product image Product image J-10
Manufacturer ORICO
Model number NEWJ10-1TB-BL-BP
Capacity 1024 GB (954 GiB)
pSLC cache 226 GB approx.
Read speed 3100 MB/s
Write speed 1900 MB/s
Interface PCIe 3.0 x4
Connector M.2 2280
Memory module (NAND) TLC
DRAM cache No
TBW (Total Bytes Written) 300 terabyte
Warranty 3 Years
Controller Maxio MAP1202

Product
Score
Price
ORICO J-10 2TB
3267
n/a
ORICO J-10 512GB
1886
n/a
ORICO J-10 256GB
1957
n/a
  Current price
n/a
(= n/a / GB)
Stock status unknown
Buy now
Retailer     #ad
Compare product Compared to the test winner*
Read speed
88 %
Write speed
69 %
*) Test result rated by AS SSD score within the same capacity.
   v0.35a
OS: 10.0 build 19045
Drive   : 0(NVME)
Scsi    : 2
Driver  : W10
Model   : ORICO
Fw      : SN26904
HMB     : 16384 - 16384 KB (Enabled, 16 M)
Size    : 976762 MB [1024.2 GB]
LBA Size: 512
AdminCmd: 0x00 0x01 0x02 0x04 0x05 0x06 0x08 0x09 0x0A 0x0C 0x10 0x11 0x14 0x80 0x81 0x82 0x84 0xC1 0xC2
I/O Cmd : 0x00 0x01 0x02 0x04 0x05 0x08 0x09
Firmware id string[0C0]	: MKSSD_101000000269043100,Dec 13 2024,02:33:07,MAP1202,MCB6AA3H
Project id string[080]	: e:/1202_Q5171a_Base_SVN26845_26904
Controller		: MAP1202
NAND string		: PF29Fxx2AxCQL1
NAND MaxPE cycles	: 9008
NAND Freq		: 60929
Channel number		: 16
CE number		: 129
Total bank		: 11
Flash type		: (4)
Blocks/CE		: 57760
Pages/Block		: 255
Page size		: 0
Planes(?)		: 32
Die/CE			: 226
Ch0CE0: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0 - Intel TLC
Ch1CE0: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0 - Intel TLC
Ch2CE0: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0 - Intel TLC
Ch3CE0: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0 - Intel TLC
Ch0CE1: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0 - Intel TLC
Ch3CE1: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0 - Intel TLC

We put the ORICO NVMe M.2 SSD through a detailed test. You can find the test result / test report here:

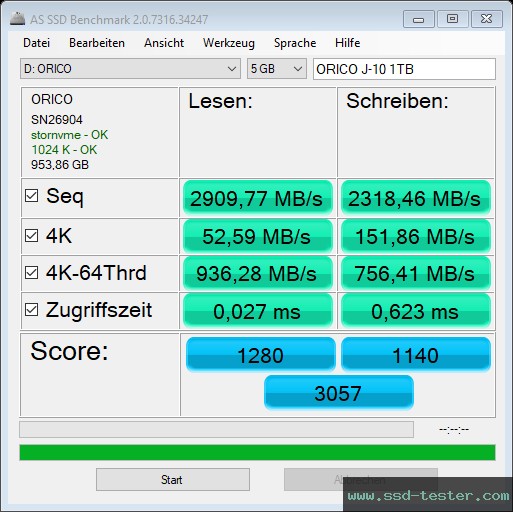

AS SSD Benchmark

Standard performance test

The standard test was performed with a 5 GB file. A total score of 3057 points was achieved.

AS SSD Benchmark Screenshot: TEST: ORICO J-10 1TB
AS SSD Read: Write:
Seq
in megabytes per second
2,909.77 MB/s
2,318.46 MB/s
4K
in megabytes per second
52.59 MB/s
151.86 MB/s
4K-64Thrd
in megabytes per second
936.28 MB/s
756.41 MB/s
Access time
in milliseconds
0.027 ms
0.623 ms
Score
1280
1140
Total score
3057

Copy performance test

A common everyday scenario is simulated here. Three test folders are created:

  • ISO (folder with two large files)
  • Program (folder with many small files)
  • Game (folder with small and large files)

The three folders are copied using the Windows copy command (cache remains enabled). The real-world test from 16 May 2025 shows performance during simultaneous write and read operations. The lower the duration, the better.

AS SSD TEST: ORICO J-10 1TB
AS SSD Copy Benchmark Transfer rate: Duration:
ISO
two large files
1,917.78 MB/s
1.20 s
Program
typical program folder with many small files
1,109.99 MB/s
6.34 s
Game
a game folder with small and large files
1,892.68 MB/s
3.65 s

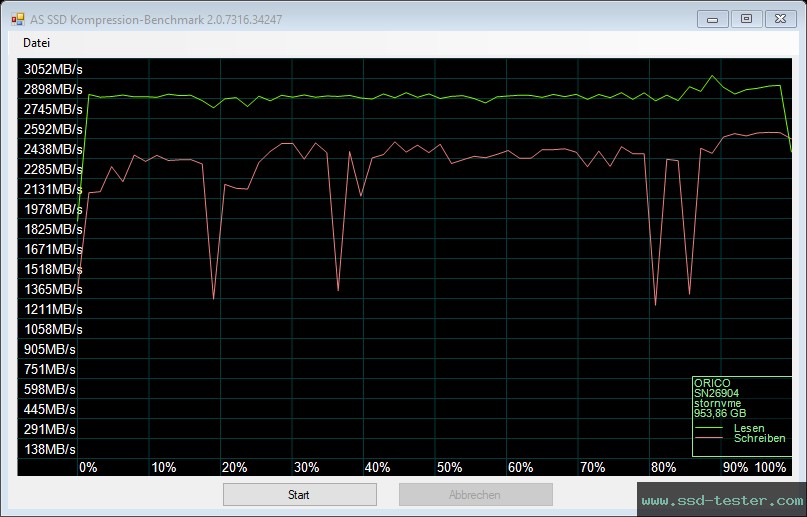

Compression performance test

Here, speed is measured depending on how compressible the data is.

AS SSD TEST: ORICO J-10 1TB

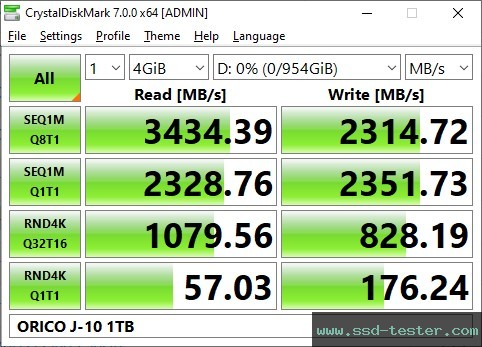

CrystalDiskMark Benchmark

Similar to AS SSD, two sequential and two random performance tests are carried out here and the write and read speed (manufacturer specs: 3100 MB/s and 1900 MB/s) the ORICO SSD is measured.

CrystalDiskMark Benchmark Screenshot: TEST: ORICO J-10 1TB
CDM Read [MB/s] Write [MB/s]
SEQ1M
Q8T1
3,434.39
2,314.72
SEQ1M
Q1T1
2,328.76
2,351.73
RND4K
Q32T16
1,079.56
828.19
RND4K
Q1T1
57.03
176.24

IOPS (Input/Output operations per second)

CDM Read [IOPS] Write [IOPS]
SEQ1M
Q8T1
3,275.30
2,207.50
SEQ1M
Q1T1
2,220.90
2,242.80
RND4K
Q32T16
263,563.00
202,196.00
RND4K
Q1T1
13,923.60
43,027.30

Average latency

CDM Read [µs] Write [µs]
SEQ1M
Q8T1
2,438.83
3,616.91
SEQ1M
Q1T1
449.96
445.57
RND4K
Q32T16
1,939.46
2,530.02
RND4K
Q1T1
71.66
23.10

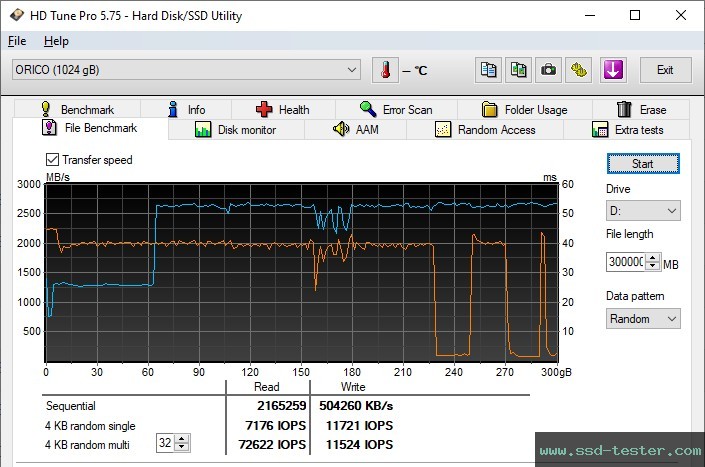

HD Tune Pro long-term test

A long-term test was performed to fully utilize the storage. You can see at what point the cache (if present) becomes full and write performance drops. A test file of 300 GB was written to the medium. After approx. 226 GB, the cache was full and performance was throttled.
The test file could at least be read with an average read speed of 2,165 MB/s and written at 504 MB/s.

HD Tune endurance test TEST: ORICO J-10 1TB

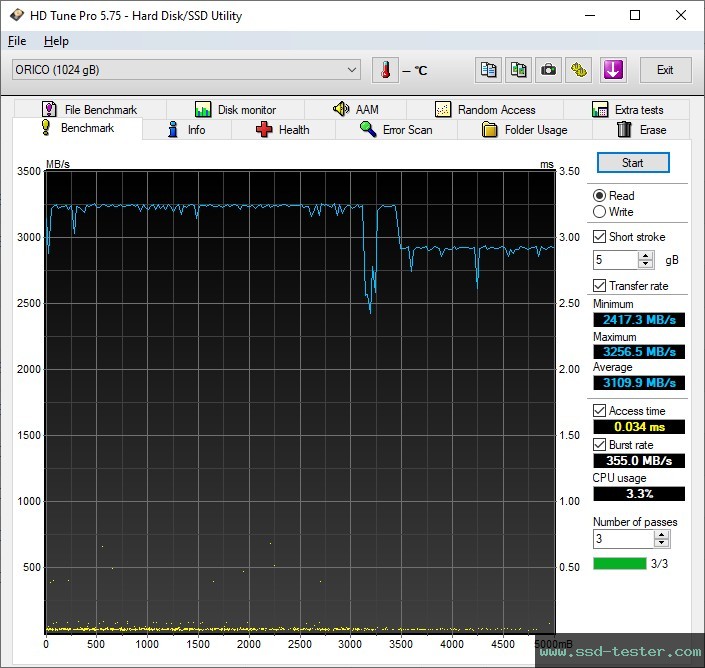

HD Tune Pro Benchmark

HD Tune writes a 5 GB file to the ORICO NVMe M.2 SSD. The transfer data of the read speed is displayed graphically. The minimum, maximum and average values are also determined. The measured access time and burst rate are also shown.

HD Tune TEST: ORICO J-10 1TB

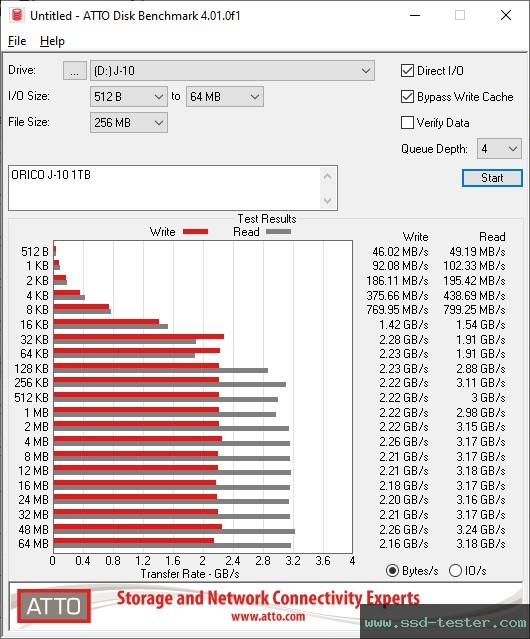

ATTO Disk Benchmark

Here, a 256 MB file is written to the ORICO NVMe M.2 SSD multiple times. The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster writing and reading usually becomes.

ATTO Disk Benchmark TEST: ORICO J-10 1TB

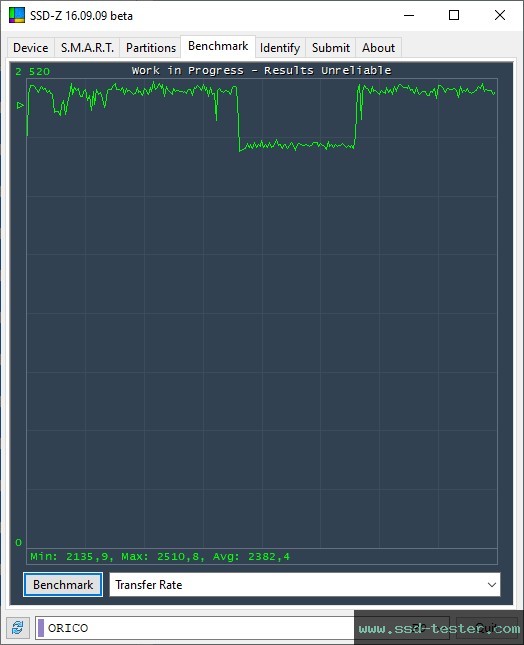

SSD-Z Benchmark

Similar to HD Tune, a 500 MB file is written to the ORICO NVMe M.2 SSD here. The transfer data is displayed. The more consistent the line, the better. Unfortunately, the tool no longer works correctly from around 4,000 MB/s and no line is displayed (and sometimes incorrect min/max data is shown).

SSD-Z TEST: ORICO J-10 1TB


You can find information about the test system at the bottom of the homepage.
