ORICO J-10 2TB M.2 SSD

Here you will find a detailed speed, performance and benchmark test review. Tested was the M.2 NVMe SSD J-10 with 2TB (NEWJ10-2TB-BL-BP) from the brand ORICO.

Performance score
3267
Price/GB
n/a
Read
3,100 MB/s
 Write
1,600 MB/s
Connector
M.2 2280
Interface
PCIe 3.0 x4
Technical specifications (manufacturer information)

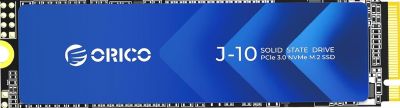

Product image Product image J-10
Manufacturer ORICO
Model number NEWJ10-2TB-BL-BP
Capacity 2048 GB (1908 GiB)
pSLC cache >400 GB approx.
Read speed 3100 MB/s
Write speed 1600 MB/s
Interface PCIe 3.0 x4
Connector M.2 2280
Memory module (NAND) QLC
DRAM cache No
TBW (Total Bytes Written) 600 terabyte
Warranty 3 Years
Controller Maxio MAP1202

Product
Score
Price
ORICO J-10 1TB
3057
n/a
ORICO J-10 512GB
1886
n/a
ORICO J-10 256GB
1957
n/a
  Current price
n/a
(= n/a / GB)
 Stock status unknown
Buy now
Retailer     #ad
Compare product Compared to the test winner*
Read speed
58 %
Write speed
40 %
*) Test result rated by AS SSD score within the same capacity.
v0.37a
OS: 10.0 build 19045
Drive   : 0(NVME)
Scsi    : 2
Driver  : W10
Model   : ORICO
Fw      : SN26904
HMB     : 16384 - 16384 KB (Enabled, 16 M)
Size    : 1953514 MB [2048.4 GB]
LBA Size: 512
AdminCmd: 0x00 0x01 0x02 0x04 0x05 0x06 0x08 0x09 0x0A 0x0C 0x10 0x11 0x14 0x80 0x81 0x82 0x84 0xC1 0xC2
I/O Cmd : 0x00 0x01 0x02 0x04 0x05 0x08 0x09
Firmware id string[0C0]	: MKSSD_101000000269043100,Dec 13 2024,02:37:27,MAP1202,MCB6BA4H
Project id string[080]	: e:/1202_Q5171a_Base_SVN26845_26904
Controller		: MAP1202
NAND string		: PF29Fxx2AxCQL1
NAND MaxPE cycles	: 9008
NAND Freq		: 60929
Channel number		: 16
CE number		: 129
Total bank		: 11
Flash type		: (4)
Blocks/CE		: 57760
Pages/Block		: 255
Page size		: 0
Planes(?)		: 32
Die/CE			: 226
HSPD capacity		: 58113
HSPD blocks		: 12177
Normal blocks		: 57985
Ch0CE0: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0 - Intel 192L(Q5171A) QLC 1.33Tb/CE 1.33Tb/die
Ch1CE0: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0 - Intel 192L(Q5171A) QLC 1.33Tb/CE 1.33Tb/die
Ch2CE0: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0 - Intel 192L(Q5171A) QLC 1.33Tb/CE 1.33Tb/die
Ch3CE0: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0 - Intel 192L(Q5171A) QLC 1.33Tb/CE 1.33Tb/die
Ch0CE1: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0 - Intel 192L(Q5171A) QLC 1.33Tb/CE 1.33Tb/die
Ch1CE1: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0 - Intel 192L(Q5171A) QLC 1.33Tb/CE 1.33Tb/die
Ch2CE1: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0 - Intel 192L(Q5171A) QLC 1.33Tb/CE 1.33Tb/die
Ch3CE1: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0 - Intel 192L(Q5171A) QLC 1.33Tb/CE 1.33Tb/die

We put the ORICO NVMe M.2 SSD through a detailed test. You can find the test result / test report here:

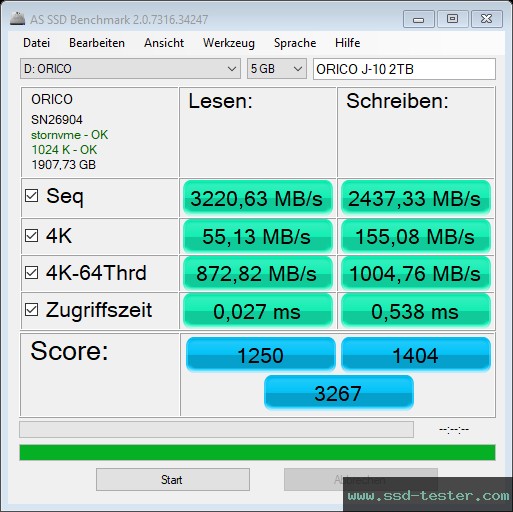

AS SSD Benchmark

Standard performance test

The standard test was performed with a 5 GB file. A total score of 3267 points was achieved.

AS SSD Benchmark Screenshot: TEST: ORICO J-10 2TB M.2 SSD
AS SSD Read: Write:
Seq
in megabytes per second
3,220.63 MB/s
2,437.33 MB/s
4K
in megabytes per second
55.13 MB/s
155.08 MB/s
4K-64Thrd
in megabytes per second
872.82 MB/s
1,004.76 MB/s
Access time
in milliseconds
0.027 ms
0.538 ms
Score
1250
1404
Total score
3267

Copy performance test

A common everyday scenario is simulated here. Three test folders are created:

  • ISO (folder with two large files)
  • Program (folder with many small files)
  • Game (folder with small and large files)

The three folders are copied using the Windows copy command (cache remains enabled). The real-world test from 26 June 2025 shows performance during simultaneous write and read operations. The lower the duration, the better.

AS SSD TEST: ORICO J-10 2TB M.2 SSD
AS SSD Copy Benchmark Transfer rate: Duration:
ISO
two large files
1,805.58 MB/s
1.27 s
Program
typical program folder with many small files
1,123.89 MB/s
6.26 s
Game
a game folder with small and large files
1,886.59 MB/s
3.66 s

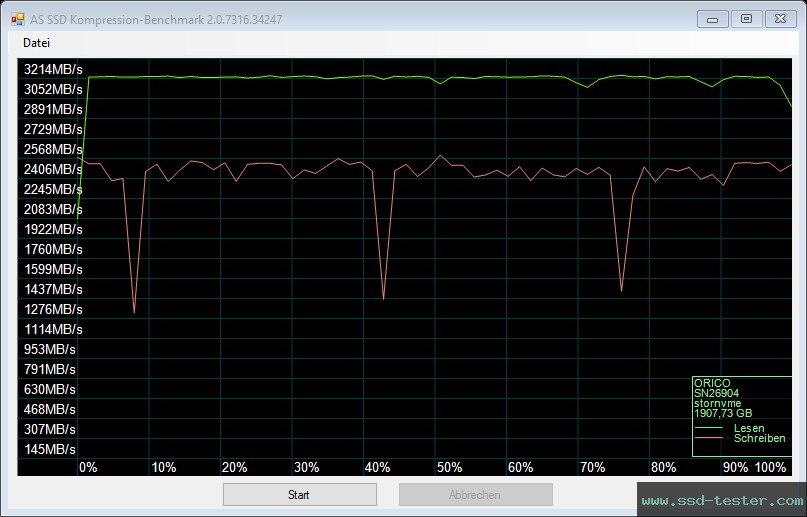

Compression performance test

Here, speed is measured depending on how compressible the data is.

AS SSD TEST: ORICO J-10 2TB M.2 SSD

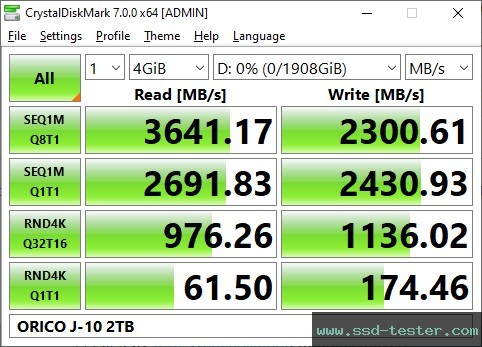

CrystalDiskMark Benchmark

Similar to AS SSD, two sequential and two random performance tests are carried out here and the write and read speed (manufacturer specs: 3100 MB/s and 1600 MB/s) the ORICO SSD is measured.

CrystalDiskMark Benchmark Screenshot: TEST: ORICO J-10 2TB M.2 SSD
CDM Read [MB/s] Write [MB/s]
SEQ1M
Q8T1
3,641.17
2,300.61
SEQ1M
Q1T1
2,691.83
2,430.93
RND4K
Q32T16
976.26
1,136.02
RND4K
Q1T1
61.50
174.46

IOPS (Input/Output operations per second)

CDM Read [IOPS] Write [IOPS]
SEQ1M
Q8T1
3,472.50
2,194.00
SEQ1M
Q1T1
2,567.10
2,318.30
RND4K
Q32T16
238,345.00
277,349.00
RND4K
Q1T1
15,015.60
42,593.50

Average latency

CDM Read [µs] Write [µs]
SEQ1M
Q8T1
2,302.35
3,639.70
SEQ1M
Q1T1
389.37
431.11
RND4K
Q32T16
2,144.97
1,844.56
RND4K
Q1T1
66.47
23.36

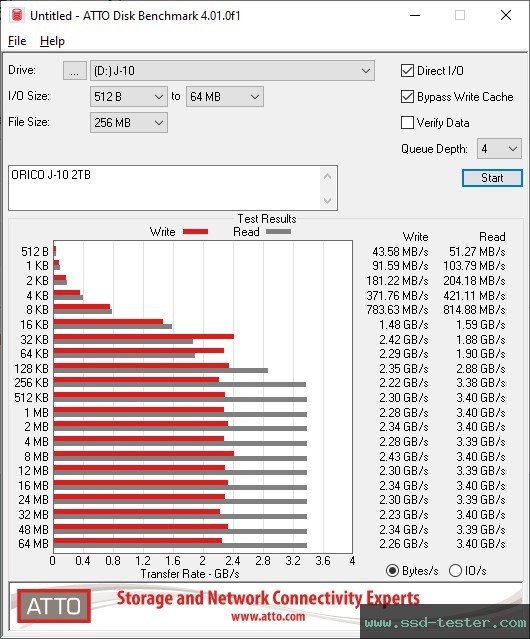

ATTO Disk Benchmark

Here, a 256 MB file is written to the ORICO NVMe M.2 SSD multiple times. The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster writing and reading usually becomes.

ATTO Disk Benchmark TEST: ORICO J-10 2TB M.2 SSD

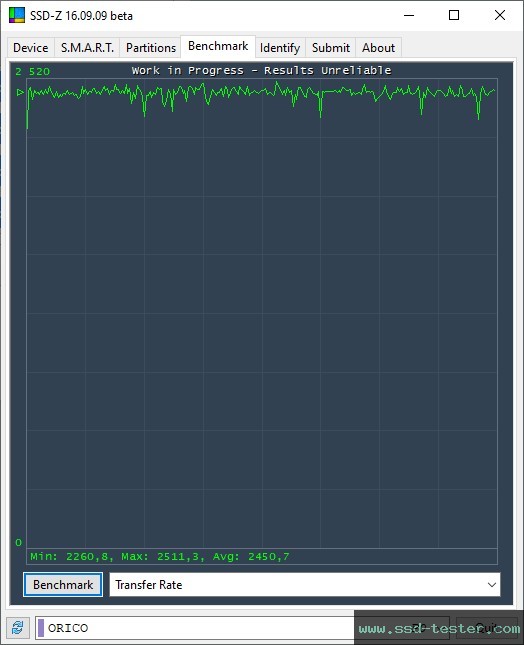

SSD-Z Benchmark

Similar to HD Tune, a 500 MB file is written to the ORICO NVMe M.2 SSD here. The transfer data is displayed. The more consistent the line, the better. Unfortunately, the tool no longer works correctly from around 4,000 MB/s and no line is displayed (and sometimes incorrect min/max data is shown).

SSD-Z TEST: ORICO J-10 2TB M.2 SSD


You can find information about the test system at the bottom of the homepage.
