TEST: Patriot Rage R550 512GB USB flash drive
Here you can find a detailed performance and benchmark test of the USB flash drive Rage R550 with 512GB (PE512GR550DSAD) from Patriot.51
0,06 €
| Technical data | |
| Image |
|
| Manufacturer | Patriot |
| Model number | PE512GR550DSAD |
| Storage capacity | 512 GB (469 GiB) |
| Read speed | 100 MB/s |
| Write speed | not specified |
| Connection | USB Typ A+C |
| Price | ca. 30 USD (= 0,06 $ / GB) |
| Paid link | Buy on Amazon |
Compared to the top performer*
*) Test result evaluated according to AS SSD Score within the same size.

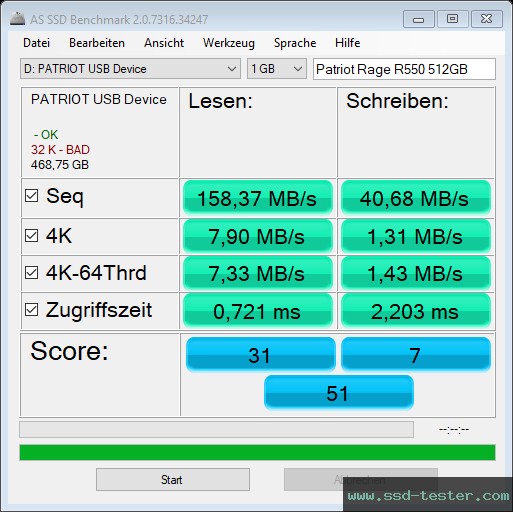

AS SSD Benchmark
Standard performance test
The standard test was performed using a 1 GB file. A total score of 51 points was achieved.
| AS SSD | Read: | Write: |
|---|---|---|
| Seq in megabytes per second |
158,37 MB/s |
40,68 MB/s |
| 4K in megabytes per second |
7,90 MB/s |
1,31 MB/s |
| 4K-64Thrd in megabytes per second |
7,33 MB/s |
1,43 MB/s |
| Access time in milliseconds |
0,721 ms |
2,203 ms |
| Score | 31 |
7 |
| Total score | 51 |
|

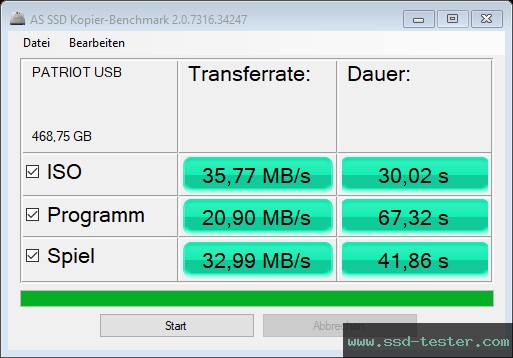

Copy Performance Test
A common everyday situation is simulated here. Three test folders are created:
- ISO (folder with two large files)
- Program (folder with many small files)
- Game (folder with small and large files)
The three folders are copied using the Windows Copy command (the cache remains enabled). The practical test of June 03, 2025 shows the performance for simultaneous write and read operations. The lower the duration, the better the performance.
| AS SSD Copy-Benchmark | Transfer rate: | Duration: |
|---|---|---|
| ISO two large files |
35,77 MB/s |
30,02 s |
| Program many small files |
20,90 MB/s |
67,32 s |
| Game small and large files |
32,99 MB/s |
41,86 s |

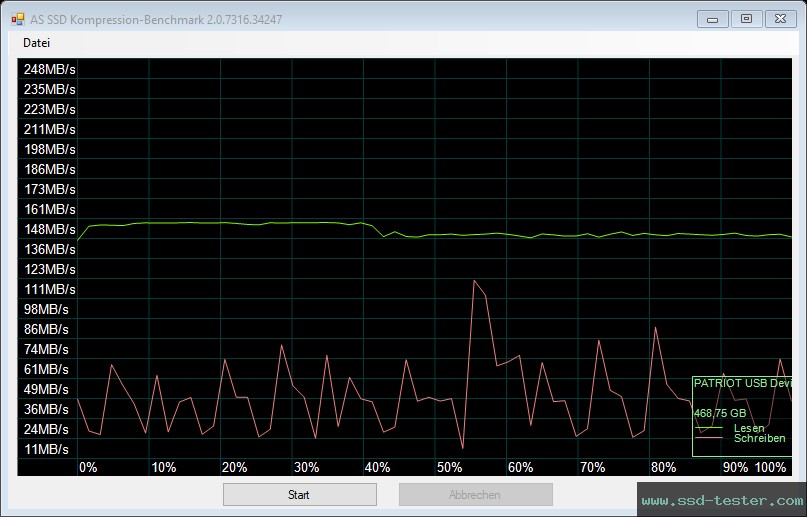

Compression Performance Test
This measures the write and read speed of the Patriot USB flash drive, depending on the compressibility of the data (according to the manufacturer, these should be 100 MB/s).

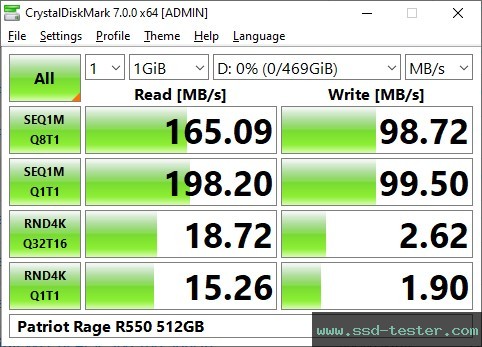

CrystalDiskMark Benchmark
Here, two sequential and two random performance tests are performed, similar to the ones performed on the AS SSD.
| CDM | Read [MB/s] | Write [MB/s] |
|---|---|---|
| SEQ1M Q8T1 |
165,09 |
98,72 |
| SEQ1M Q1T1 |
198,20 |
99,50 |
| RND4K Q32T16 |
18,72 |
2,62 |
| RND4K Q1T1 |
15,26 |
1,90 |
Input/Output operations per second
| CDM | Read [IOPS] | Write [IOPS] |
|---|---|---|
| SEQ1M Q8T1 |
157,40 |
94,10 |
| SEQ1M Q1T1 |
189,00 |
94,90 |
| RND4K Q32T16 |
4.569,30 |
638,40 |
| RND4K Q1T1 |
3.726,10 |
463,10 |
Average latency
| CDM | Read [µs] | Write [µs] |
|---|---|---|
| SEQ1M Q8T1 |
50.515,10 |
84.097,40 |
| SEQ1M Q1T1 |
5.286,95 |
10.524,50 |
| RND4K Q32T16 |
88.117,20 |
253.384,00 |
| RND4K Q1T1 |
268,20 |
2.157,14 |
HD Tune Pro Endurance test
This is a long term test to make full use of the memory capacity. You can see when a cache is full and the writing performance decreases. A test file of 10 GB was written to the medium.

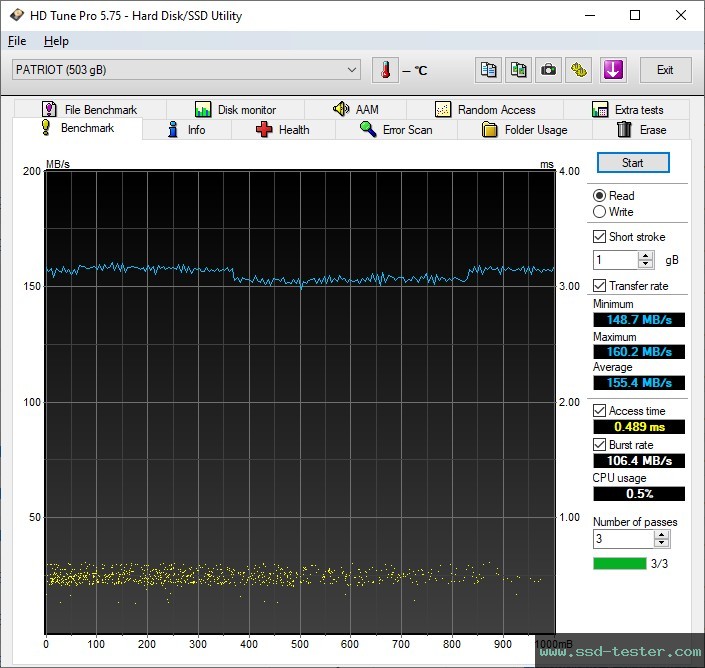

HD Tune Pro Benchmark
HD Tune writes a 1 GB file to the 512 GB Patriot USB flash drive. The transfer data of the read speed is displayed graphically. The minimum, maximum and average values are also determined. The determined access time and burst rate are also displayed.

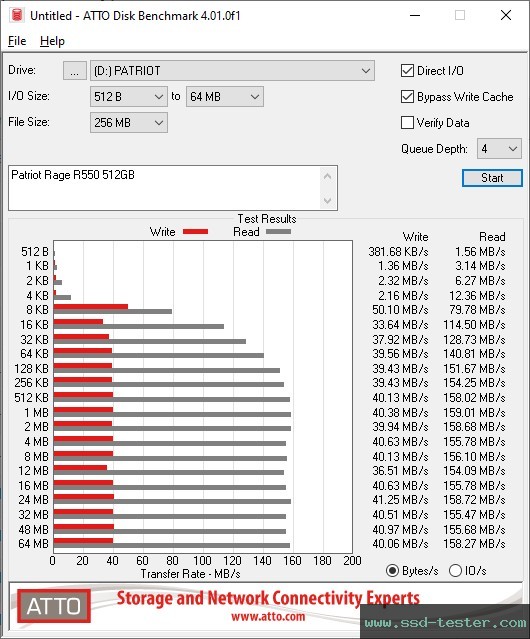

ATTO Disk Benchmark
Here, a 256 MB file is written several times to the 512 GB Patriot USB flash drive. The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster they were written and read.

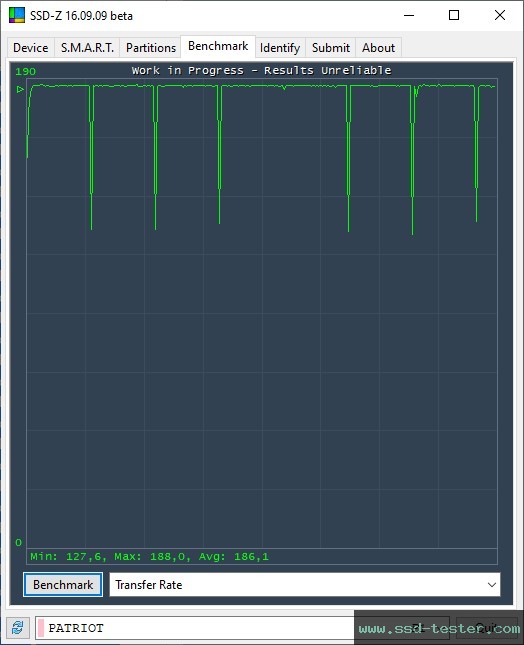

SSD-Z Benchmark
Similar to HD Tune, a 500 MB file is written to the 512 GB Patriot USB flash drive here. The transfer data is displayed. The more constant the line, the better.
Information about the test system can be found at the bottom of the home page.
