PHIXERO P3000 1TB M.2 SSD
Here you will find a detailed speed, performance and benchmark test review. Tested was the M.2 NVMe SSD P3000 with 1TB (P3000-1TB-GR-BP) from the brand PHIXERO.
| Technical specifications (manufacturer information) | |
| Product image |
|
| Manufacturer | PHIXERO |
| Model number | P3000-1TB-GR-BP |
| Capacity | 1024 GB (954 GiB) |
| pSLC cache | 226 GB approx. |
| Read speed | 3000 MB/s |
| Write speed | 1700 MB/s |
| Interface | PCIe 3.0 x4 |
| Connector | M.2 2280 |
| Memory module (NAND) | QLC |
| DRAM cache | No |
| Controller | Maxio MAP1202 |
Compare product Compared to the test winner*
v0.37a OS: 10.0 build 19045 Drive : 0(NVME) Scsi : 2 Driver : W10 Model : PHIXERO Fw : SN26904 HMB : 16384 - 16384 KB (Enabled, 16 M) Size : 976762 MB [1024.2 GB] LBA Size: 512 AdminCmd: 0x00 0x01 0x02 0x04 0x05 0x06 0x08 0x09 0x0A 0x0C 0x10 0x11 0x14 0x80 0x81 0x82 0x84 0xC1 0xC2 I/O Cmd : 0x00 0x01 0x02 0x04 0x05 0x08 0x09 Firmware id string[0C0] : MKSSD_101000000269043100,Dec 13 2024,02:33:07,MAP1202,MCB6AA3H Project id string[080] : e:/1202_Q5171a_Base_SVN26845_26904 Controller : MAP1202 NAND string : PF29Fxx2AxCQL1 NAND MaxPE cycles : 9008 NAND Freq : 60929 Channel number : 16 CE number : 129 Total bank : 11 Flash type : (4) Blocks/CE : 57760 Pages/Block : 255 Page size : 0 Planes(?) : 32 Die/CE : 226 HSPD capacity : 58113 HSPD blocks : 12177 Normal blocks : 57985 Ch0CE0: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0 - Intel 192L(Q5171A) QLC 1.33Tb/CE 1.33Tb/die Ch1CE0: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0 - Intel 192L(Q5171A) QLC 1.33Tb/CE 1.33Tb/die Ch2CE0: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0 - Intel 192L(Q5171A) QLC 1.33Tb/CE 1.33Tb/die Ch3CE0: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0 - Intel 192L(Q5171A) QLC 1.33Tb/CE 1.33Tb/die Ch0CE1: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0 - Intel 192L(Q5171A) QLC 1.33Tb/CE 1.33Tb/die Ch3CE1: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0 - Intel 192L(Q5171A) QLC 1.33Tb/CE 1.33Tb/die
We put the PHIXERO NVMe M.2 SSD through a detailed test. You can find the test result / test report here:

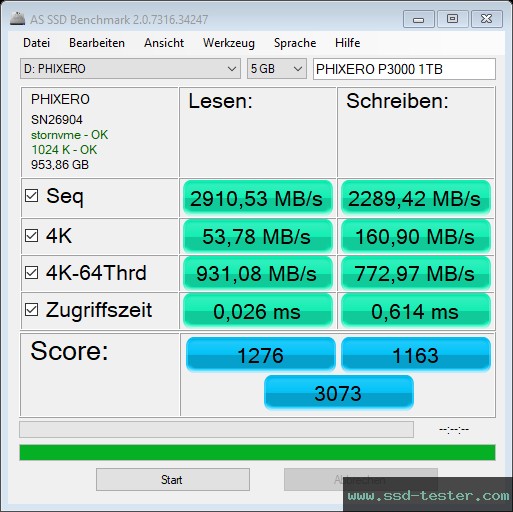

AS SSD Benchmark
Standard performance test
The standard test was performed with a 5 GB file. A total score of 3073 points was achieved.
Copy performance test
A common everyday scenario is simulated here. Three test folders are created:
- ISO (folder with two large files)
- Program (folder with many small files)
- Game (folder with small and large files)
The three folders are copied using the Windows copy command (cache remains enabled). The real-world test from 26 September 2025 shows performance during simultaneous write and read operations. The lower the duration, the better.
| AS SSD Copy Benchmark | Transfer rate: | Duration: |
|---|---|---|
| ISO two large files |
1,916.72 MB/s |
1.20 s |
| Program typical program folder with many small files |
1,111.54 MB/s |
6.33 s |
| Game a game folder with small and large files |
1,870.71 MB/s |
3.69 s |

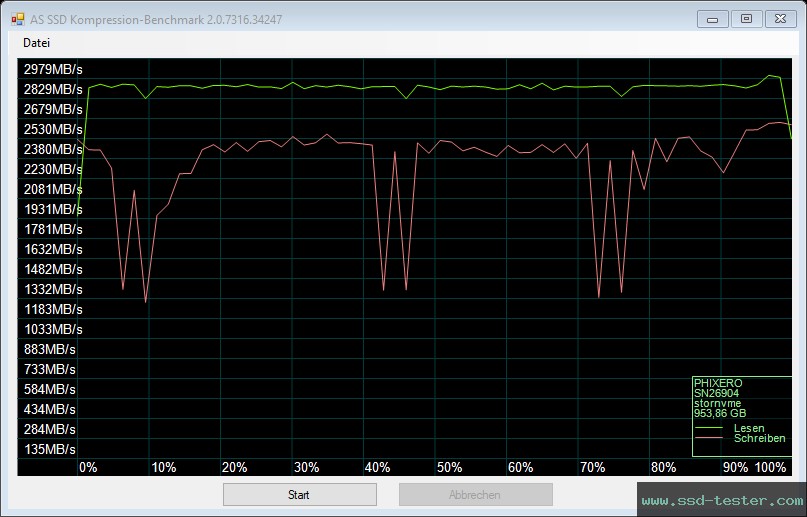

Compression performance test
Here, speed is measured depending on how compressible the data is.

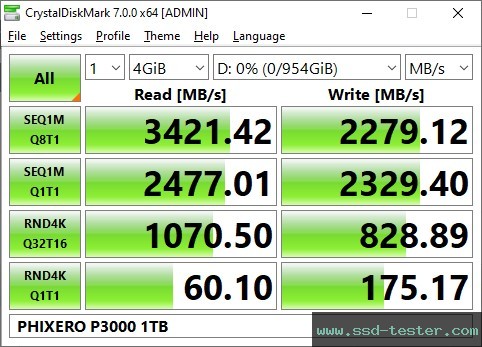

CrystalDiskMark Benchmark
Similar to AS SSD, two sequential and two random performance tests are carried out here and the write and read speed (manufacturer specs: 3000 MB/s and 1700 MB/s) the PHIXERO SSD is measured.
| CDM | Read [MB/s] | Write [MB/s] |
|---|---|---|
| SEQ1M Q8T1 |
3,421.42 |
2,279.12 |
| SEQ1M Q1T1 |
2,477.01 |
2,329.40 |
| RND4K Q32T16 |
1,070.50 |
828.89 |
| RND4K Q1T1 |
60.11 |
175.17 |
IOPS (Input/Output operations per second)
| CDM | Read [IOPS] | Write [IOPS] |
|---|---|---|
| SEQ1M Q8T1 |
3,262.90 |
2,173.50 |
| SEQ1M Q1T1 |
2,362.30 |
2,221.50 |
| RND4K Q32T16 |
261,354.00 |
202,367.00 |
| RND4K Q1T1 |
14,674.10 |
42,767.10 |
Average latency
| CDM | Read [µs] | Write [µs] |
|---|---|---|
| SEQ1M Q8T1 |
2,449.98 |
3,673.60 |
| SEQ1M Q1T1 |
423.13 |
448.46 |
| RND4K Q32T16 |
1,956.58 |
2,526.73 |
| RND4K Q1T1 |
68.03 |
23.25 |

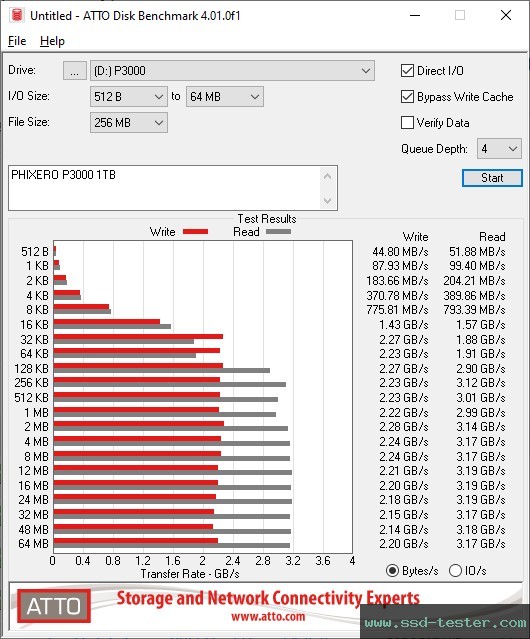

ATTO Disk Benchmark
Here, a 256 MB file is written to the PHIXERO NVMe M.2 SSD multiple times. The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster writing and reading usually becomes.

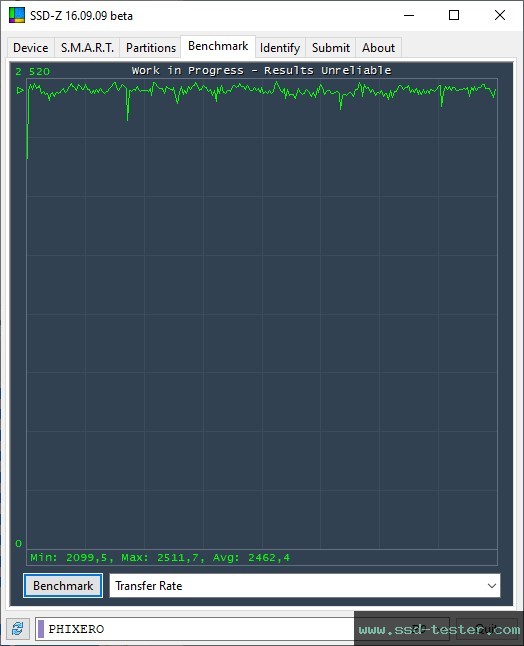

SSD-Z Benchmark
Similar to HD Tune, a 500 MB file is written to the PHIXERO NVMe M.2 SSD here. The transfer data is displayed. The more consistent the line, the better. Unfortunately, the tool no longer works correctly from around 4,000 MB/s and no line is displayed (and sometimes incorrect min/max data is shown).
You can find information about the test system at the bottom of the homepage.
