Timetec MS47 2TB M.2 SSD
Here you will find a detailed speed, performance and benchmark test review. Tested was the M.2 NVMe SSD MS47 with 2TB (35TTNGE4NVME-2TBPH) from the brand Timetec.
| Technical specifications (manufacturer information) | |
| Product image |
|
| Manufacturer | Timetec |
| Model number | 35TTNGE4NVME-2TBPH |
| Capacity | 2048 GB (1908 GiB) |
| pSLC cache | 46 GB approx. |
| Read speed | 7400 MB/s |
| Write speed | 6400 MB/s |
| Interface | PCIe 4.0 x4 |
| Connector | M.2 2280 |
| Memory module (NAND) | TLC |
| DRAM cache | No |
| TBW (Total Bytes Written) | 2000 terabyte |
| Warranty | 5 Years |
| Controller | Phison PS5027-E27T |
Compare product Compared to the test winner*
v0.393a OS: 10.0 build 19045 Drive : 0(NVME) Driver : W10(0:3) Model : PCIe SSD Fw : ERFM11.0 HMB : 65536 - 65536 KB (Enabled, 64 M) Size : 1953514 MB [2048.4 GB] LBA Size: 512 AdminCmd: 0x00 0x01 0x02 0x04 0x05 0x06 0x08 0x09 0x0A 0x0C 0x10 0x11 0x14 0x80 0x81 0x82 0x84 0xD0 0xD1 0xD2 0xE0 0xE1 0xE2 I/O Cmd : 0x00 0x01 0x02 0x04 0x09 Firmware lock supported [03 01] [P007] [0100] Drive unlocked [03 03] F/W : ERFM11.0 00 P/N : 00000000 Bank00: 0x98,0x48,0xa8,0x3,0x7a,0xe5,0x0,0x0 - Toshiba 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die Bank01: 0x98,0x48,0xa8,0x3,0x7a,0xe5,0x0,0x0 - Toshiba 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die Bank02: 0x98,0x48,0xa8,0x3,0x7a,0xe5,0x0,0x0 - Toshiba 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die Bank03: 0x98,0x48,0xa8,0x3,0x7a,0xe5,0x0,0x0 - Toshiba 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die Bank04: 0x98,0x48,0xa8,0x3,0x7a,0xe5,0x0,0x0 - Toshiba 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die Bank05: 0x98,0x48,0xa8,0x3,0x7a,0xe5,0x0,0x0 - Toshiba 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die Bank06: 0x98,0x48,0xa8,0x3,0x7a,0xe5,0x0,0x0 - Toshiba 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die Bank07: 0x98,0x48,0xa8,0x3,0x7a,0xe5,0x0,0x0 - Toshiba 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die Bank08: 0x98,0x48,0xa8,0x3,0x7a,0xe5,0x0,0x0 - Toshiba 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die Bank09: 0x98,0x48,0xa8,0x3,0x7a,0xe5,0x0,0x0 - Toshiba 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die Bank10: 0x98,0x48,0xa8,0x3,0x7a,0xe5,0x0,0x0 - Toshiba 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die Bank11: 0x98,0x48,0xa8,0x3,0x7a,0xe5,0x0,0x0 - Toshiba 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die Bank12: 0x98,0x48,0xa8,0x3,0x7a,0xe5,0x0,0x0 - Toshiba 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die Bank13: 0x98,0x48,0xa8,0x3,0x7a,0xe5,0x0,0x0 - Toshiba 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die Bank14: 0x98,0x48,0xa8,0x3,0x7a,0xe5,0x0,0x0 - Toshiba 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die Bank15: 0x98,0x48,0xa8,0x3,0x7a,0xe5,0x0,0x0 - Toshiba 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die Controller : PS5027-E27 Clk : 1200-600-600-2400-2400 Flash CE : 16 Flash Channel : 4 Interleave : 4 Flash CE Mask : [++++++++ ++++++++ -------- --------] ?Die per CE : 1 ?Block per CE : 2430 ?Page perBlock: 3660 ?Plane number : 4 ?Bit Per Cell : 3(TLC) ?PE CycleLimit: 3000
We put the Timetec NVMe M.2 SSD through a detailed test. You can find the test result / test report here:
AS SSD Benchmark

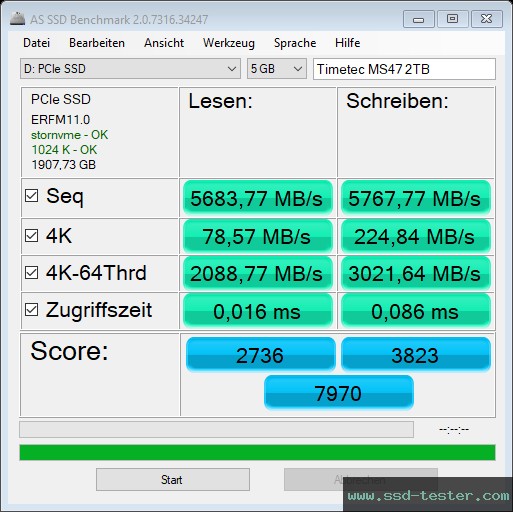

Standard performance test
The standard test was performed with a 5 GB file. A total score of 7970 points was achieved.

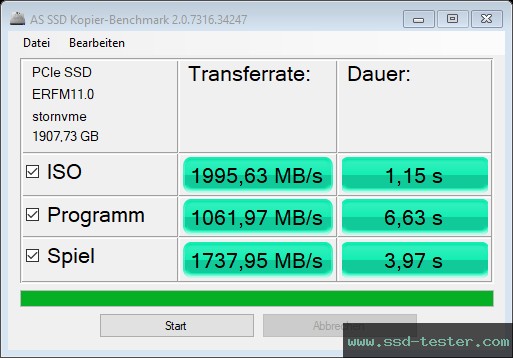

Copy performance test
A common everyday scenario is simulated here. Three test folders are created:
- ISO (folder with two large files)
- Program (folder with many small files)
- Game (folder with small and large files)
The three folders are copied using the Windows copy command (cache remains enabled). The real-world test from 28 July 2025 shows performance during simultaneous write and read operations. The lower the duration, the better.
| AS SSD Copy Benchmark | Transfer rate: | Duration: |
|---|---|---|
| ISO two large files |
1,995.63 MB/s |
1.15 s |
| Program typical program folder with many small files |
1,061.97 MB/s |
6.63 s |
| Game a game folder with small and large files |
1,737.95 MB/s |
3.97 s |

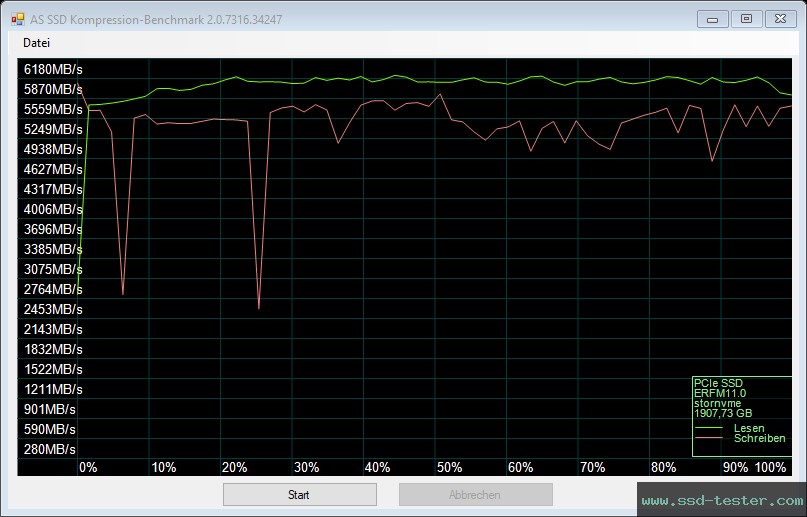

Compression performance test
Here, speed is measured depending on how compressible the data is.

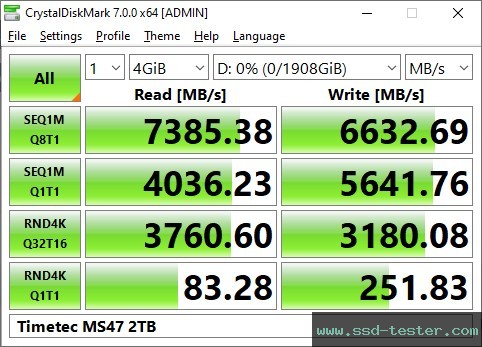

CrystalDiskMark Benchmark
Similar to AS SSD, two sequential and two random performance tests are carried out here and the write and read speed (manufacturer specs: 7400 MB/s and 6400 MB/s) the Timetec SSD is measured.
| CDM | Read [MB/s] | Write [MB/s] |
|---|---|---|
| SEQ1M Q8T1 |
7,385.38 |
6,632.69 |
| SEQ1M Q1T1 |
4,036.23 |
5,641.76 |
| RND4K Q32T16 |
3,760.60 |
3,180.08 |
| RND4K Q1T1 |
83.28 |
251.83 |
IOPS (Input/Output operations per second)
| CDM | Read [IOPS] | Write [IOPS] |
|---|---|---|
| SEQ1M Q8T1 |
7,043.30 |
6,325.40 |
| SEQ1M Q1T1 |
3,849.30 |
5,380.40 |
| RND4K Q32T16 |
918,115.00 |
776,387.00 |
| RND4K Q1T1 |
20,331.10 |
61,481.40 |
Average latency
| CDM | Read [µs] | Write [µs] |
|---|---|---|
| SEQ1M Q8T1 |
1,134.97 |
1,262.59 |
| SEQ1M Q1T1 |
259.60 |
185.71 |
| RND4K Q32T16 |
539.65 |
658.59 |
| RND4K Q1T1 |
49.07 |
16.15 |

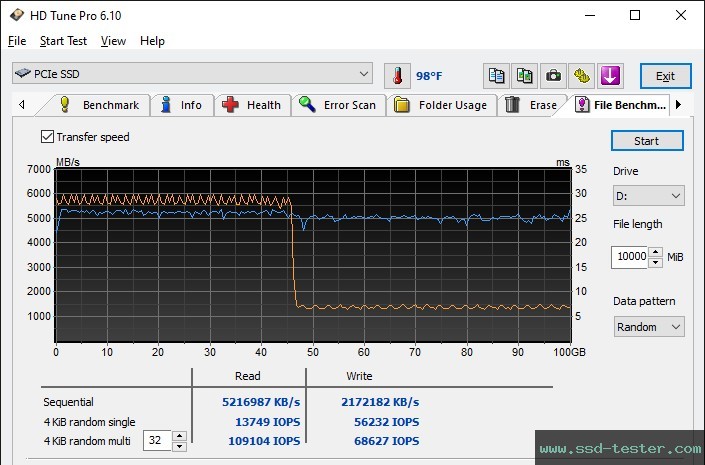

HD Tune Pro long-term test
A long-term test was performed to fully utilize the storage. You can see at what point the cache (if present) becomes full and write performance drops. A test file of 100 GB was written to the medium. After approx. 46 GB, the cache was full and performance was throttled.
The test file could at least be read with an average read speed of 5,217 MB/s and written at 2,172 MB/s.

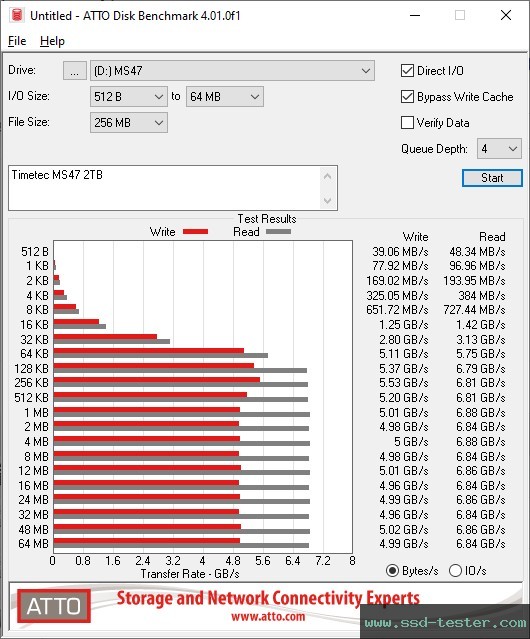

ATTO Disk Benchmark
Here, a 256 MB file is written to the Timetec NVMe M.2 SSD multiple times. The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster writing and reading usually becomes.

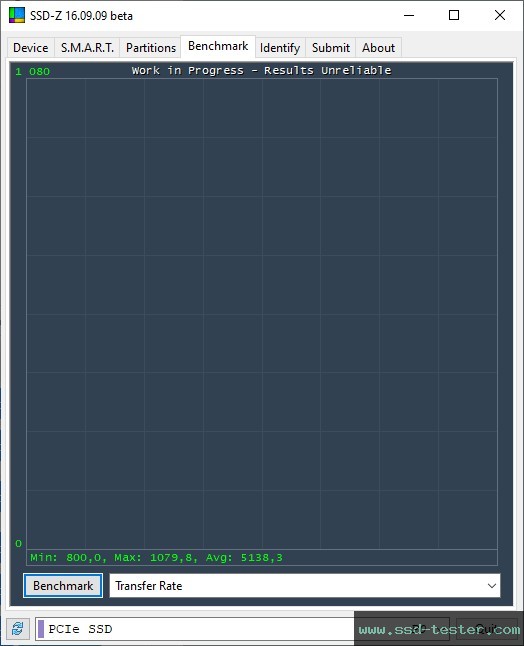

SSD-Z Benchmark
Similar to HD Tune, a 500 MB file is written to the Timetec NVMe M.2 SSD here. The transfer data is displayed. The more consistent the line, the better. Unfortunately, the tool no longer works correctly from around 4,000 MB/s and no line is displayed (and sometimes incorrect min/max data is shown).
You can find information about the test system at the bottom of the homepage.
