Verbatim Vi5000 2TB M.2 SSD

Here you will find a detailed speed, performance and benchmark test review. Tested was the M.2 NVMe SSD Vi5000 with 2TB (31827) from the brand Verbatim.

Performance score
7060
Price/GB
n/a
Read
5,000 MB/s
 Write
4,300 MB/s
Connector
M.2 2280
Interface
PCIe 4.0 x4
Technical specifications (manufacturer information)
Product image Product image Vi5000
Manufacturer Verbatim
Model number 31827
Capacity 2048 GB (1908 GiB)
pSLC cache 328 GB approx.
Read speed 5000 MB/s
Write speed 4300 MB/s
Interface PCIe 4.0 x4
Connector M.2 2280
Memory module (NAND) TLC
DRAM cache No
TBW (Total Bytes Written) 2500 terabyte
Warranty 3 Years
Controller Maxio MAP1602
  Current price
n/a
(= n/a / GB)
 Stock status unknown
Buy now
Retailer     #ad
Compare product Compared to the test winner*
Read speed
86 %
Write speed
82 %
*) Test result rated by AS SSD score within the same capacity.

v0.37a
OS: 10.0 build 19045
Drive   : 0(NVME)
Scsi    : 2
Driver  : W10
Model   : Vi5000 SSD
Fw      : V1.0.7
HMB     : 40960 - 40960 KB (Enabled, 40 M)
Size    : 1953514 MB [2048.4 GB]
LBA Size: 512
AdminCmd: 0x00 0x01 0x02 0x04 0x05 0x06 0x08 0x09 0x0A 0x0C 0x10 0x11 0x14 0x80 0x81 0x82 0x84 0xC1 0xC2
I/O Cmd : 0x00 0x01 0x02 0x04 0x05 0x08 0x09
Firmware id string[0C0]	: MKSSD_100000000b48ab3100,Mar  6 2024,23:29:59,MSD1602,9OD4CA4C
Project id string[080]	: d:/user/sheng.chen/project/0_FW_Totest/versionV1_0_3/mestor_1602MKSSD_100000000b48ab3100,Mar  6 2024,23:29:59,MSD1602,9OD4CA4C
Controller		: Unknown
NAND string		: SDUNFIAMAxx
Ch0CE0: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch3CE0: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch4CE0: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch5CE0: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch6CE0: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch7CE0: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch0CE1: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch1CE1: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch2CE1: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch3CE1: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch4CE1: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch5CE1: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch6CE1: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch7CE1: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch0CE2: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch1CE2: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch2CE2: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch3CE2: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch4CE2: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch5CE2: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch6CE2: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch7CE2: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch0CE3: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch1CE3: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch2CE3: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch3CE3: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch4CE3: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch5CE3: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch6CE3: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch7CE3: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch0CE4: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch1CE4: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch2CE4: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch3CE4: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch4CE4: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch5CE4: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch6CE4: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch7CE4: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch0CE5: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch1CE5: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch2CE5: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch3CE5: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch4CE5: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch5CE5: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch6CE5: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch7CE5: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch0CE6: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch1CE6: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch2CE6: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch3CE6: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch4CE6: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch5CE6: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch6CE6: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch7CE6: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch0CE7: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch1CE7: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch2CE7: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch3CE7: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch4CE7: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch5CE7: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch6CE7: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die
Ch7CE7: 0x45,0x48,0xa8,0x3,0x7a,0xe5,0x0 - Sandisk 162L BiCS6 TLC 16k 1024Gb/CE 1024Gb/die 4Plane/die

We put the Verbatim NVMe M.2 SSD through a detailed test. You can find the test result / test report here:

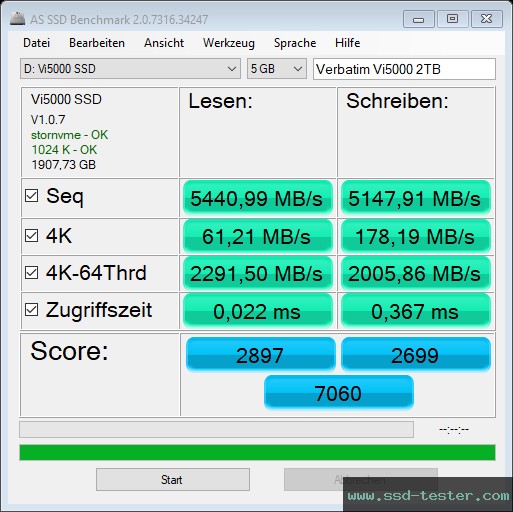

AS SSD Benchmark

Standard performance test

The standard test was performed with a 5 GB file. A total score of 7060 points was achieved.

AS SSD Benchmark Screenshot: TEST: Verbatim Vi5000 2TB M.2 SSD
AS SSD Read: Write:
Seq
in megabytes per second
5,440.99 MB/s
5,147.91 MB/s
4K
in megabytes per second
61.21 MB/s
178.19 MB/s
4K-64Thrd
in megabytes per second
2,291.50 MB/s
2,005.86 MB/s
Access time
in milliseconds
0.022 ms
0.367 ms
Score
2897
2699
Total score
7060

Copy performance test

A common everyday scenario is simulated here. Three test folders are created:

  • ISO (folder with two large files)
  • Program (folder with many small files)
  • Game (folder with small and large files)

The three folders are copied using the Windows copy command (cache remains enabled). The real-world test from 18 July 2025 shows performance during simultaneous write and read operations. The lower the duration, the better.

AS SSD TEST: Verbatim Vi5000 2TB M.2 SSD
AS SSD Copy Benchmark Transfer rate: Duration:
ISO
two large files
2,093.58 MB/s
1.10 s
Program
typical program folder with many small files
1,129.18 MB/s
6.23 s
Game
a game folder with small and large files
1,857.31 MB/s
3.72 s

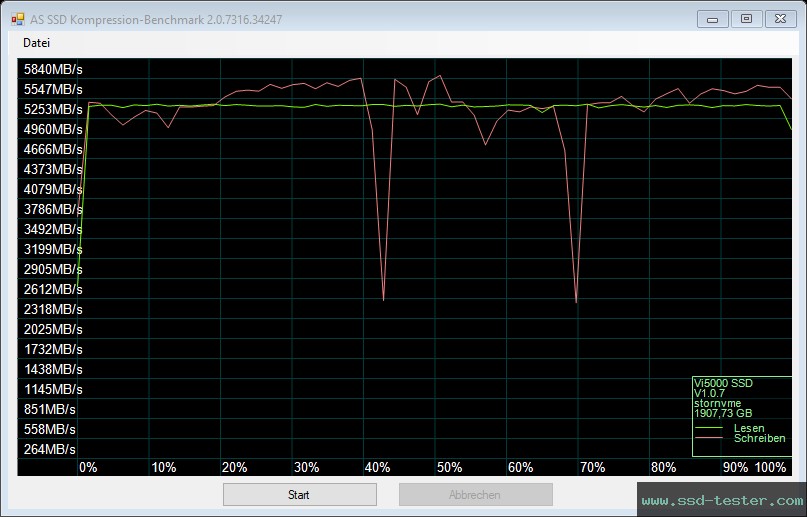

Compression performance test

Here, speed is measured depending on how compressible the data is.

AS SSD TEST: Verbatim Vi5000 2TB M.2 SSD

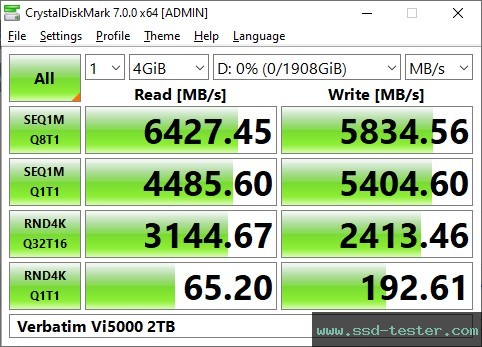

CrystalDiskMark Benchmark

Similar to AS SSD, two sequential and two random performance tests are carried out here and the write and read speed (manufacturer specs: 5000 MB/s and 4300 MB/s) the Verbatim SSD is measured.

CrystalDiskMark Benchmark Screenshot: TEST: Verbatim Vi5000 2TB M.2 SSD
CDM Read [MB/s] Write [MB/s]
SEQ1M
Q8T1
6,427.46
5,834.56
SEQ1M
Q1T1
4,485.60
5,404.60
RND4K
Q32T16
3,144.67
2,413.46
RND4K
Q1T1
65.20
192.61

IOPS (Input/Output operations per second)

CDM Read [IOPS] Write [IOPS]
SEQ1M
Q8T1
6,129.70
5,564.30
SEQ1M
Q1T1
4,277.80
5,154.20
RND4K
Q32T16
767,741.00
589,223.00
RND4K
Q1T1
15,917.20
47,023.40

Average latency

CDM Read [µs] Write [µs]
SEQ1M
Q8T1
1,304.29
1,434.95
SEQ1M
Q1T1
233.57
193.84
RND4K
Q32T16
665.41
868.06
RND4K
Q1T1
62.72
21.14

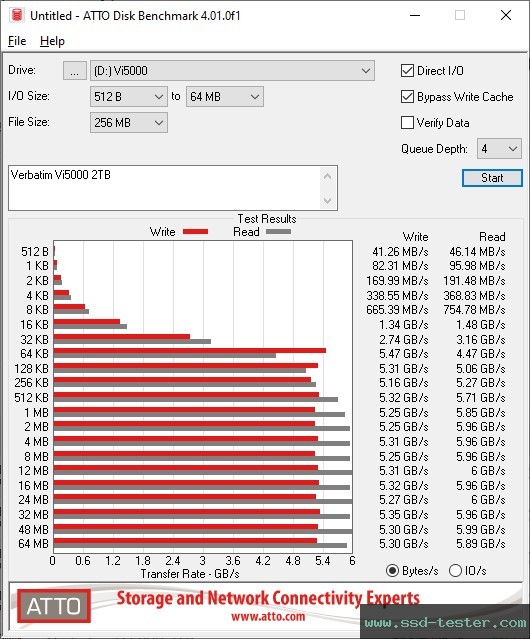

ATTO Disk Benchmark

Here, a 256 MB file is written to the Verbatim NVMe M.2 SSD multiple times. The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster writing and reading usually becomes.

ATTO Disk Benchmark TEST: Verbatim Vi5000 2TB M.2 SSD

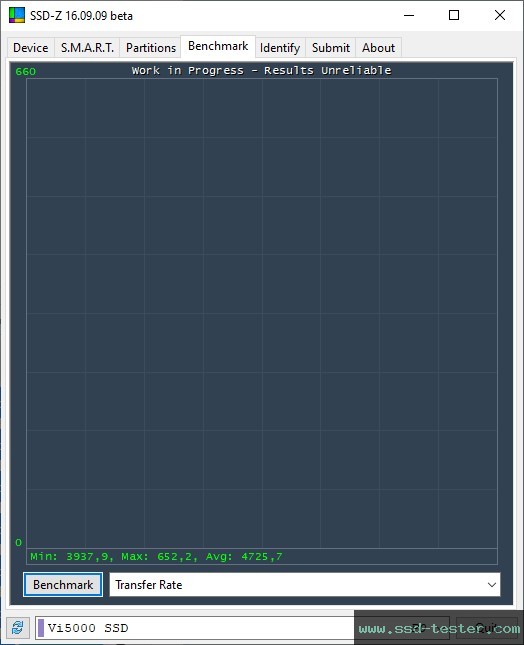

SSD-Z Benchmark

Similar to HD Tune, a 500 MB file is written to the Verbatim NVMe M.2 SSD here. The transfer data is displayed. The more consistent the line, the better. Unfortunately, the tool no longer works correctly from around 4,000 MB/s and no line is displayed (and sometimes incorrect min/max data is shown).

SSD-Z TEST: Verbatim Vi5000 2TB M.2 SSD


You can find information about the test system at the bottom of the homepage.
