TEST: Western Digital WD Red SA500 1TB SATA SSD

Here you can find a detailed performance and benchmark test of the SATA SSD WD Red SA500 with 1TB (WDS100T1R0A) from Western Digital.
Score
796
Price/GB
0,10 $


Technical data
Image WD Red SA500
Manufacturer Western Digital
Model number WDS100T1R0A
Storage capacity 1024 GB (932 GiB)
pSLC-Cache >400 GB approx.
Read speed 560 MB/s
Write speed 530 MB/s
Interface SATA 6 Gbps
Connection 2.5"
Memory module (NAND) TLC
TBW (Total Bytes Written) 600 Terabyte
Controller Silicon Motion SM2259H
Price ca. 104 USD (= 0,10 $ / GB)
Paid link Buy on Amazon
Compare Product
Compared to the top performer*
Read speed
83 %
Write speed
100 %

*) Test result evaluated according to AS SSD Score within the same size.

AS SSD Benchmark

Standard performance test

The standard test was performed using a 1 GB file. A total score of 796 points was achieved.

AS SSD TEST: Western Digital WD Red SA500 1TB

AS SSD Read: Write:
Seq
in megabytes per second
423,94 MB/s
455,18 MB/s
4K
in megabytes per second
37,13 MB/s
85,40 MB/s
4K-64Thrd
in megabytes per second
229,64 MB/s
181,67 MB/s
Access time
in milliseconds
0,040 ms
0,097 ms
Score
309
313
Total score
796

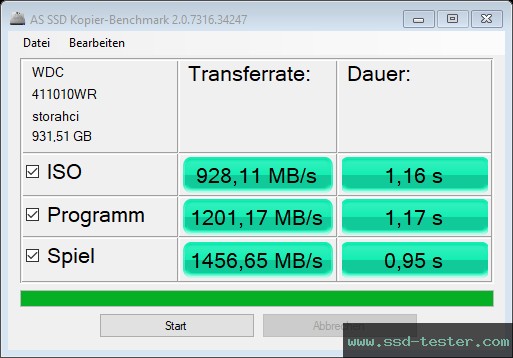

Copy Performance Test

A common everyday situation is simulated here. Three test folders are created:

  • ISO (folder with two large files)
  • Program (folder with many small files)
  • Game (folder with small and large files)

The three folders are copied using the Windows Copy command (the cache remains enabled). The practical test of July 22, 2025 shows the performance for simultaneous write and read operations. The lower the duration, the better the performance.

AS SSD TEST: Western Digital WD Red SA500 1TB
AS SSD Copy-Benchmark Transfer rate: Duration:
ISO
two large files
928,11 MB/s
1,16 s
Program
many small files
1201,17 MB/s
1,17 s
Game
small and large files
1456,65 MB/s
0,95 s

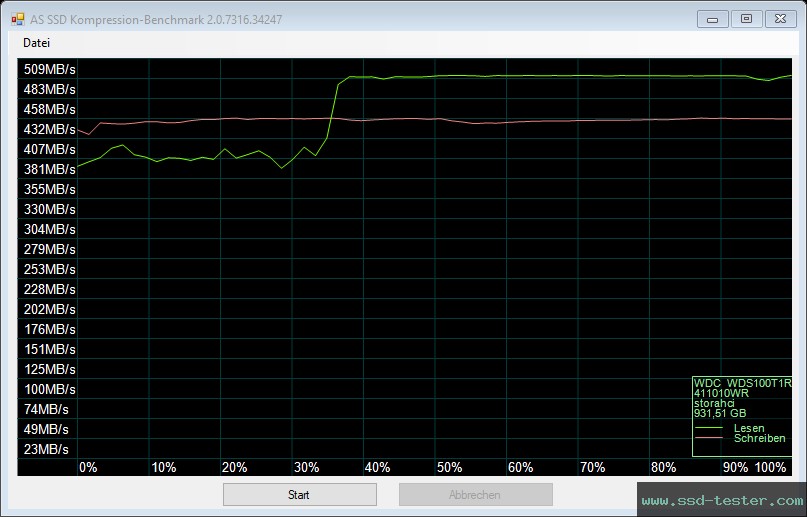

Compression Performance Test

This measures the write and read speed of the Western Digital SATA SSD, depending on the compressibility of the data (according to the manufacturer, these should be 560 MB/s and 530 MB/s respectively ).

AS SSD TEST: Western Digital WD Red SA500 1TB

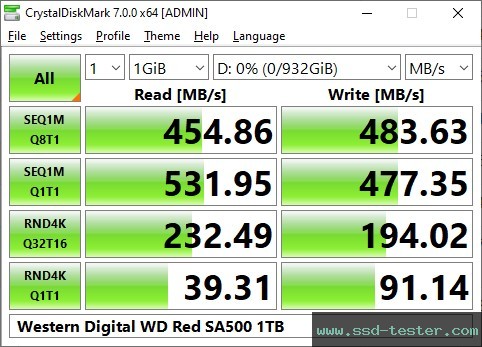

CrystalDiskMark Benchmark

Here, two sequential and two random performance tests are performed, similar to the ones performed on the AS SSD.

CrystalDiskMark Benchmark TEST: Western Digital WD Red SA500 1TB
CDM Read [MB/s] Write [MB/s]
SEQ1M
Q8T1
454,86
483,63
SEQ1M
Q1T1
531,95
477,35
RND4K
Q32T16
232,49
194,02
RND4K
Q1T1
39,31
91,14

Input/Output operations per second

CDM Read [IOPS] Write [IOPS]
SEQ1M
Q8T1
433,80
461,20
SEQ1M
Q1T1
507,30
455,20
RND4K
Q32T16
56.759,80
47.368,20
RND4K
Q1T1
9.597,20
22.251,70

Average latency

CDM Read [µs] Write [µs]
SEQ1M
Q8T1
18.394,70
17.286,50
SEQ1M
Q1T1
1.970,33
2.195,11
RND4K
Q32T16
9.009,01
10.792,20
RND4K
Q1T1
104,08
44,83

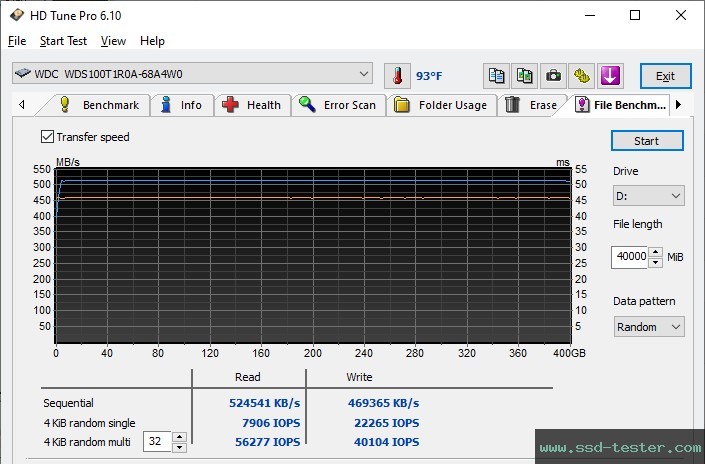

HD Tune Pro Endurance test

This is a long term test to make full use of the memory capacity. You can see when a cache is full and the writing performance decreases. A test file of 400 GB was written to the medium. The exact cache size could not be determined, because the test file did not exhaust the cache (brought it to the limit). At least the test file could be read with an average write speed of 525 MB/s and written with 469 MB/s.

HD Tune Endurance Test TEST: Western Digital WD Red SA500 1TB

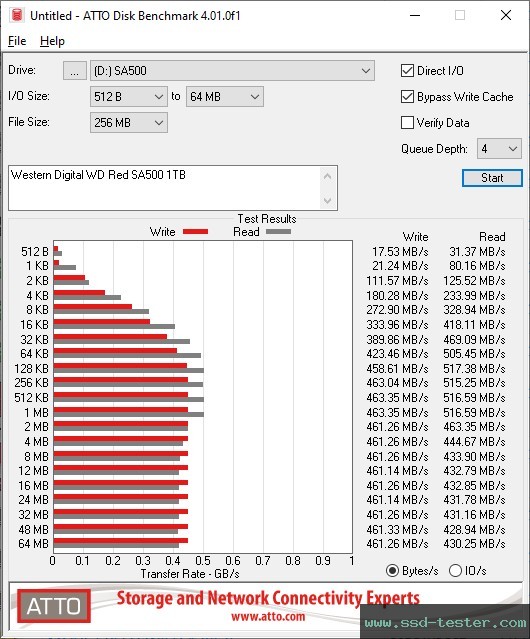

ATTO Disk Benchmark

Here, a 256 MB file is written several times to the Western Digital SATA SSD. The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster they were written and read.

ATTO Disk Benchmark TEST: Western Digital WD Red SA500 1TB

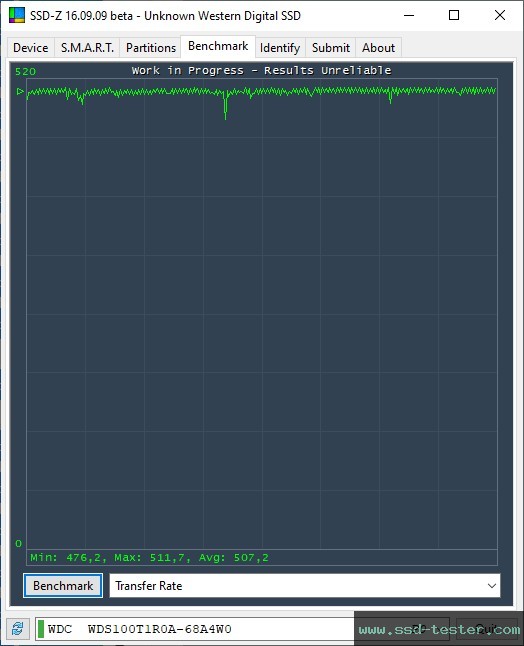

SSD-Z Benchmark

Similar to HD Tune, a 500 MB file is written to the Western Digital SATA SSD here. The transfer data is displayed. The more constant the line, the better.

SSD-Z TEST: Western Digital WD Red SA500 1TB


Information about the test system can be found at the bottom of the home page.
