TEST: Emtec X400 Power Pro 1TB M.2 SSD

Here you can find a detailed performance and benchmark test of the M.2 NVMe SSD X400 Power Pro with 1TB (ECSSD1TX400) from Emtec.
Score
3156
Price/GB
0,09 €


Technical data

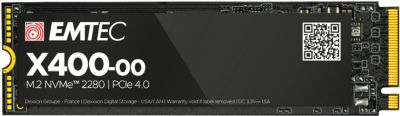

Image X400 Power Pro
Manufacturer Emtec
Model number ECSSD1TX400
Storage capacity 1024 GB (932 GiB)
pSLC-Cache 246 GB approx.
Read speed 5000 MB/s
Write speed 4400 MB/s
Interface PCIe 4.0 x4
Connection M.2 2280
Memory module (NAND) TLC
DRAM Cache ✓ yes
TBW (Total Bytes Written) 200 Terabyte
Controller Phison PS5016-E16
Price ca. 90 USD (= 0,09 $ / GB)
Paid link Buy on Amazon
Compare Product
Compared to the top performer*
Read speed
63 %
Write speed
30 %

*) Test result evaluated according to AS SSD Score within the same size.

AS SSD Benchmark

Standard performance test

The standard test was performed using a 5 GB file. A total score of 3156 points was achieved.

AS SSD TEST: Emtec X400 Power Pro 1TB

AS SSD Read: Write:
Seq
in megabytes per second
2694,86 MB/s
1967,38 MB/s
4K
in megabytes per second
58,09 MB/s
181,13 MB/s
4K-64Thrd
in megabytes per second
265,30 MB/s
1896,27 MB/s
Access time
in milliseconds
0,022 ms
0,105 ms
Score
593
2274
Total score
3156

Copy Performance Test

A common everyday situation is simulated here. Three test folders are created:

  • ISO (folder with two large files)
  • Program (folder with many small files)
  • Game (folder with small and large files)

The three folders are copied using the Windows Copy command (the cache remains enabled). The practical test of August 30, 2023 shows the performance for simultaneous write and read operations. The lower the duration, the better the performance.

AS SSD TEST: Emtec X400 Power Pro 1TB
AS SSD Copy-Benchmark Transfer rate: Duration:
ISO
two large files
1783,56 MB/s
1,29 s
Program
many small files
1136,83 MB/s
6,19 s
Game
small and large files
1894,86 MB/s
3,65 s

Compression Performance Test

This measures the write and read speed of the the Emtec SSDSSD is measured depending on the compressibility of the data (according to the manufacturer, these should be 5000MB/s and 4400MB/s respectively).

AS SSD TEST: Emtec X400 Power Pro 1TB

CrystalDiskMark Benchmark

Here, two sequential and two random performance tests are performed, similar to the ones performed on the AS SSD.

CrystalDiskMark Benchmark TEST: Emtec X400 Power Pro 1TB
CDM Read [MB/s] Write [MB/s]
SEQ1M
Q8T1
4727,03
2052,72
SEQ1M
Q1T1
2384,55
2033,74
RND4K
Q32T16
798,50
2075,08
RND4K
Q1T1
62,44
185,84

Input/Output operations per second

CDM Read [IOPS] Write [IOPS]
SEQ1M
Q8T1
4.508,00
1.957,60
SEQ1M
Q1T1
2.274,10
1.939,50
RND4K
Q32T16
194.945,00
506.612,00
RND4K
Q1T1
15.244,90
45.372,10

Average latency

CDM Read [µs] Write [µs]
SEQ1M
Q8T1
1.772,21
4.078,11
SEQ1M
Q1T1
439,57
514,93
RND4K
Q32T16
2.621,88
1.009,32
RND4K
Q1T1
65,47
21,85

HD Tune Pro Endurance test

This is a long term test to make full use of the memory capacity. You can see when a cache is full and the writing performance decreases. A test file of 300 GB was written to the medium. After approx. 246 GB, the pSLC-Cache was full and the performance was throttled.
At least the test file could be read with an average write speed of 1754 MB/s and written with 580 MB/s.

HD Tune Endurance Test TEST: Emtec X400 Power Pro 1TB

HD Tune Pro Benchmark

HD Tune writes a 5 GB file to the Emtec M.2 SSD. The transfer data of the read speed is displayed graphically. The minimum, maximum and average values are also determined. The determined access time and burst rate are also displayed.

HD Tune TEST: Emtec X400 Power Pro 1TB

ATTO Disk Benchmark

Here, a 256 MB file is written several times to the Emtec M.2 SSD. The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster they can be written and read.

ATTO Disk Benchmark TEST: Emtec X400 Power Pro 1TB

SSD-Z Benchmark

Similar to HD Tune, a 500 MB file is written to the Emtec M.2 SSD here. The transfer data is displayed. The more constant the line, the better.

SSD-Z TEST: Emtec X400 Power Pro 1TB


Information about the test system can be found at the bottom of the home page.
