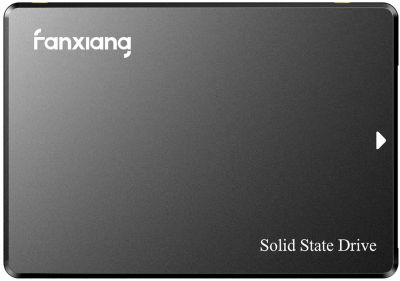

TEST: fanxiang S102 Pro 2TB SATA SSD

Technical data
Manufacturer	fanxiang
Model number	S102Pro-2TB
Storage capacity	2048 GB (1908 GiB)
pSLC-Cache	>300 GB approx.
Read speed	560 MB/s
Write speed	560 MB/s
Interface	SATA 6 Gbps
Connection	2.5"
Memory module (NAND)	TLC
Controller	Silicon Motion SM2259XT
Price	ca. 105 USD (= 0,05 $ / GB)
Paid link	Buy on Amazon

Compare Product

Compared to the top performer*

Read speed

95 %

Write speed

83 %

*) Test result evaluated according to AS SSD Score within the same size.

AS SSD Benchmark

Standard performance test

The standard test was performed using a 1 GB file. A total score of 738 points was achieved.

AS SSD	Read:	Write:
Seq in megabytes per second	498,55 MB/s	445,05 MB/s
4K in megabytes per second	28,48 MB/s	87,67 MB/s
4K-64Thrd in megabytes per second	207,35 MB/s	165,40 MB/s
Access time in milliseconds	0,044 ms	0,127 ms
Score	286	298
Total score	738

Copy Performance Test

A common everyday situation is simulated here. Three test folders are created:

• ISO (folder with two large files)
• Program (folder with many small files)
• Game (folder with small and large files)

The three folders are copied using the Windows Copy command (the cache remains enabled). The practical test of July 18, 2024 shows the performance for simultaneous write and read operations. The lower the duration, the better the performance.

AS SSD Copy-Benchmark	Transfer rate:	Duration:
ISO two large files	901,93 MB/s	1,19 s
Program many small files	1165,53 MB/s	1,21 s
Game small and large files	1426,68 MB/s	0,97 s

Compression Performance Test

This measures the write and read speed of the the fanxiang SATA SSDSSD is measured depending on the compressibility of the data (according to the manufacturer, these should be 560MB/s and 560MB/s respectively).

CrystalDiskMark Benchmark

Here, two sequential and two random performance tests are performed, similar to the ones performed on the AS SSD.

CDM	Read [MB/s]	Write [MB/s]
SEQ1M Q8T1	530,00	436,83
SEQ1M Q1T1	509,75	404,02
RND4K Q32T16	227,48	174,37
RND4K Q1T1	40,85	95,80

HD Tune Pro Endurance test

This is a long term test to make full use of the memory capacity. You can see when a cache is full and the writing performance decreases. A test file of 300 GB was written to the medium. The exact cache size could not be determined, because the test file did not exhaust the cache (brought it to the limit).At least the test file could be read with an average write speed of 502 MB/s and written with 427 MB/s.

HD Tune Pro Benchmark

HD Tune writes a 1 GB file to the fanxiang SATA SSD. The transfer data of the read speed is displayed graphically. The minimum, maximum and average values are also determined. The determined access time and burst rate are also displayed.

ATTO Disk Benchmark

Here, a 256 MB file is written several times to the fanxiang SATA SSD . The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster they can be written and read.

SSD-Z Benchmark

Similar to HD Tune, a 500 MB file is written to the fanxiang SATA SSD here. is written. The transfer data is displayed. The more constant the line, the better.

The benchmark test was performed on July 18, 2024.
Information about the test system can be found at the bottom of the home page.
