Gigabyte Gen4 4000E 1TB M.2 SSD
Here you will find a detailed speed, performance and benchmark test review. Tested was the M.2 NVMe SSD Gen4 4000E with 1TB (G440E1TB) from the brand Gigabyte.
| Technical specifications (manufacturer information) | |
| Product image |
|
| Manufacturer | Gigabyte |
| Model number | G440E1TB |
| Capacity | 1024 GB (932 GiB) |
| pSLC cache | 50 GB approx. |
| Read speed | 4000 MB/s |
| Write speed | 3900 MB/s |
| Interface | PCIe 4.0 x4 |
| Connector | M.2 2280 |
| Memory module (NAND) | TLC |
| DRAM cache | No |
| TBW (Total Bytes Written) | 320 terabyte |
| Warranty | 3 Years |
| Controller | Phison PS5021-E21 |
Compare product Compared to the test winner*
v0.393a OS: 10.0 build 19045 Drive : 0(NVME) Driver : W10(0:3) Model : GIGABYTE G440E1TB Fw : ELFMH0.1 HMB : 65536 - 65536 KB (Enabled, 64 M) Size : 953869 MB [1000.2 GB] LBA Size: 512 AdminCmd: 0x00 0x01 0x02 0x04 0x05 0x06 0x08 0x09 0x0A 0x0C 0x10 0x11 0x14 0x80 0x81 0x82 0x84 0xD0 0xD1 0xD2 0xE0 0xE1 0xE2 I/O Cmd : 0x00 0x01 0x02 0x04 0x05 0x08 0x09 0x0C Firmware lock supported [03 01] [P001] [0100] Drive unlocked [03 03] F/W : ELFMH0.1 P/N : 511-250402231 Bank00: 0xad,0x7e,0x28,0xb,0x0,0xc0,0x0,0x0 - Hynix 3dv7-176L TLC 16k 512Gb/CE 512Gb/die Bank01: 0xad,0x7e,0x28,0xb,0x0,0xc0,0x0,0x0 - Hynix 3dv7-176L TLC 16k 512Gb/CE 512Gb/die Bank02: 0xad,0x7e,0x28,0xb,0x0,0xc0,0x0,0x0 - Hynix 3dv7-176L TLC 16k 512Gb/CE 512Gb/die Bank03: 0xad,0x7e,0x28,0xb,0x0,0xc0,0x0,0x0 - Hynix 3dv7-176L TLC 16k 512Gb/CE 512Gb/die Bank04: 0xad,0x7e,0x28,0xb,0x0,0xc0,0x0,0x0 - Hynix 3dv7-176L TLC 16k 512Gb/CE 512Gb/die Bank05: 0xad,0x7e,0x28,0xb,0x0,0xc0,0x0,0x0 - Hynix 3dv7-176L TLC 16k 512Gb/CE 512Gb/die Bank06: 0xad,0x7e,0x28,0xb,0x0,0xc0,0x0,0x0 - Hynix 3dv7-176L TLC 16k 512Gb/CE 512Gb/die Bank07: 0xad,0x7e,0x28,0xb,0x0,0xc0,0x0,0x0 - Hynix 3dv7-176L TLC 16k 512Gb/CE 512Gb/die Bank08: 0xad,0x7e,0x28,0xb,0x0,0xc0,0x0,0x0 - Hynix 3dv7-176L TLC 16k 512Gb/CE 512Gb/die Bank09: 0xad,0x7e,0x28,0xb,0x0,0xc0,0x0,0x0 - Hynix 3dv7-176L TLC 16k 512Gb/CE 512Gb/die Bank10: 0xad,0x7e,0x28,0xb,0x0,0xc0,0x0,0x0 - Hynix 3dv7-176L TLC 16k 512Gb/CE 512Gb/die Bank11: 0xad,0x7e,0x28,0xb,0x0,0xc0,0x0,0x0 - Hynix 3dv7-176L TLC 16k 512Gb/CE 512Gb/die Bank12: 0xad,0x7e,0x28,0xb,0x0,0xc0,0x0,0x0 - Hynix 3dv7-176L TLC 16k 512Gb/CE 512Gb/die Bank13: 0xad,0x7e,0x28,0xb,0x0,0xc0,0x0,0x0 - Hynix 3dv7-176L TLC 16k 512Gb/CE 512Gb/die Bank14: 0xad,0x7e,0x28,0xb,0x0,0xc0,0x0,0x0 - Hynix 3dv7-176L TLC 16k 512Gb/CE 512Gb/die Bank15: 0xad,0x7e,0x28,0xb,0x0,0xc0,0x0,0x0 - Hynix 3dv7-176L TLC 16k 512Gb/CE 512Gb/die Controller : PS5021-E21 CPU Clk : 1000 Flash CE : 16 Flash Channel : 4 Interleave : 4 Flash CE Mask : [++++++++ ++++++++ -------- --------] Flash Clk,MT : 1600 Die per CE : 1 Block per CE : 1084 Page per Block: 4224 Bit Per Cell : 3(TLC) PMIC Type : PS6103 PE Cycle Limit: 30000/700 SLC cache : 0xC80000/0xB40000
We put the Gigabyte NVMe M.2 SSD through a detailed test. You can find the test result / test report here:
AS SSD Benchmark

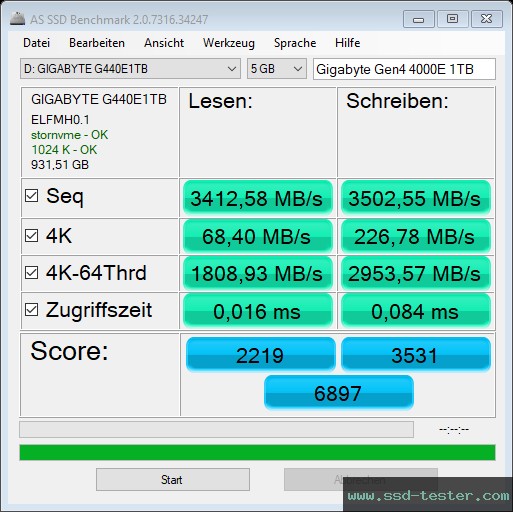

Standard performance test
The standard test was performed with a 5 GB file. A total score of 6897 points was achieved.

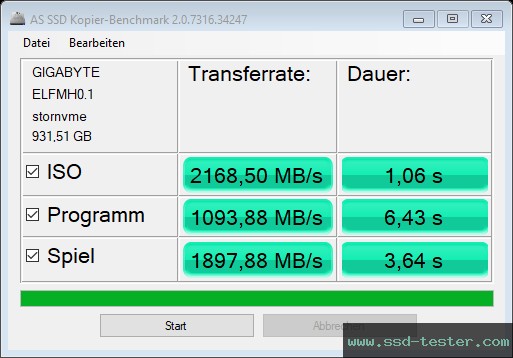

Copy performance test
A common everyday scenario is simulated here. Three test folders are created:
- ISO (folder with two large files)
- Program (folder with many small files)
- Game (folder with small and large files)
The three folders are copied using the Windows copy command (cache remains enabled). The real-world test from 16 September 2025 shows performance during simultaneous write and read operations. The lower the duration, the better.
| AS SSD Copy Benchmark | Transfer rate: | Duration: |
|---|---|---|
| ISO two large files |
2,168.50 MB/s |
1.06 s |
| Program typical program folder with many small files |
1,093.88 MB/s |
6.43 s |
| Game a game folder with small and large files |
1,897.88 MB/s |
3.64 s |

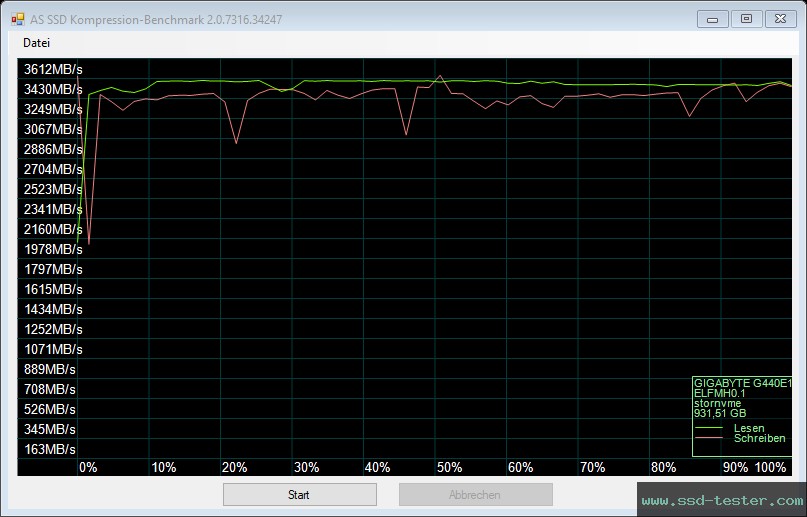

Compression performance test
Here, speed is measured depending on how compressible the data is.

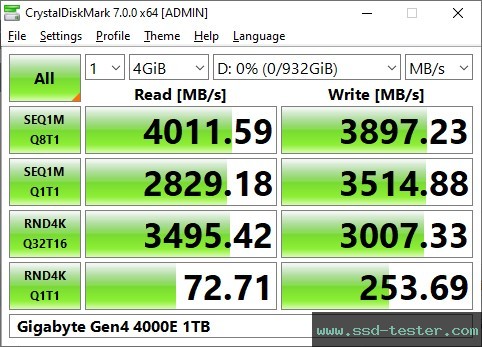

CrystalDiskMark Benchmark
Similar to AS SSD, two sequential and two random performance tests are carried out here and the write and read speed (manufacturer specs: 4000 MB/s and 3900 MB/s) the Gigabyte SSD is measured.
| CDM | Read [MB/s] | Write [MB/s] |
|---|---|---|
| SEQ1M Q8T1 |
4,011.59 |
3,897.23 |
| SEQ1M Q1T1 |
2,829.18 |
3,514.88 |
| RND4K Q32T16 |
3,495.42 |
3,007.33 |
| RND4K Q1T1 |
72.71 |
253.69 |
IOPS (Input/Output operations per second)
| CDM | Read [IOPS] | Write [IOPS] |
|---|---|---|
| SEQ1M Q8T1 |
3,825.80 |
3,716.70 |
| SEQ1M Q1T1 |
2,698.10 |
3,352.10 |
| RND4K Q32T16 |
853,373.00 |
734,212.00 |
| RND4K Q1T1 |
17,752.40 |
61,935.30 |
Average latency
| CDM | Read [µs] | Write [µs] |
|---|---|---|
| SEQ1M Q8T1 |
2,089.92 |
2,149.08 |
| SEQ1M Q1T1 |
370.46 |
298.09 |
| RND4K Q32T16 |
597.25 |
696.50 |
| RND4K Q1T1 |
56.20 |
16.01 |

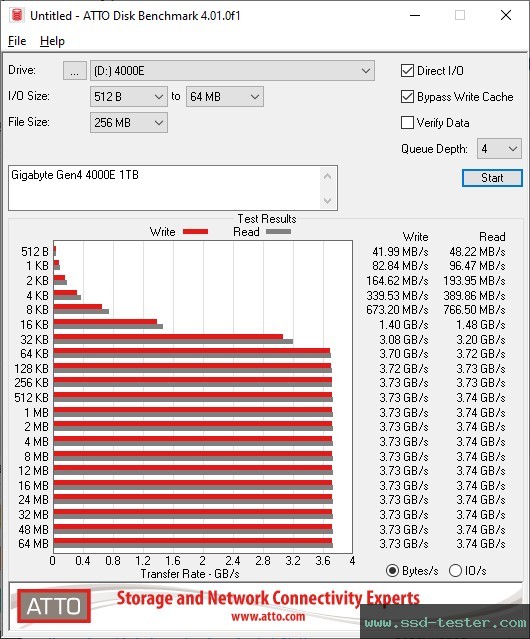

ATTO Disk Benchmark
Here, a 256 MB file is written to the Gigabyte NVMe M.2 SSD multiple times. The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster writing and reading usually becomes.

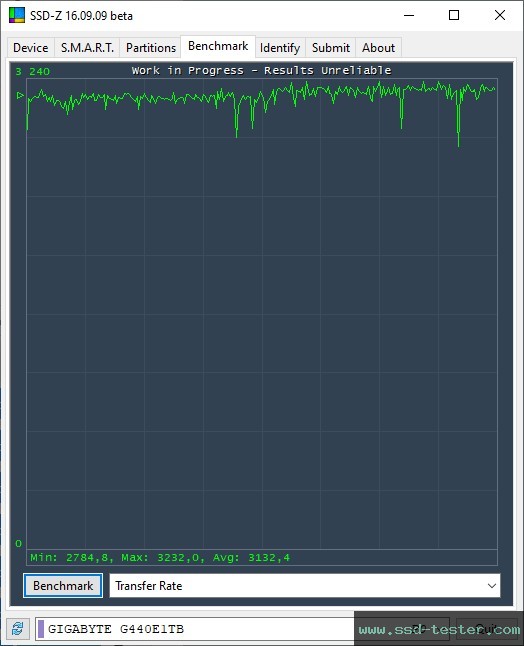

SSD-Z Benchmark
Similar to HD Tune, a 500 MB file is written to the Gigabyte NVMe M.2 SSD here. The transfer data is displayed. The more consistent the line, the better. Unfortunately, the tool no longer works correctly from around 4,000 MB/s and no line is displayed (and sometimes incorrect min/max data is shown).
You can find information about the test system at the bottom of the homepage.
