Integral V Series 2TB SATA SSD
Here you will find a detailed speed, performance and benchmark test review. Tested was the SATA SSD V Series with 2TB (INSSD2TS625V2X) from the brand Integral.
| Technical specifications (manufacturer information) | |
| Product image |
|
| Manufacturer | Integral |
| Model number | INSSD2TS625V2X |
| Capacity | 2048 GB (1863 GiB) |
| pSLC cache | >400 GB approx. |
| Read speed | 520 MB/s |
| Write speed | 470 MB/s |
| Interface | SATA 6 Gbps |
| Connector | 2.5" |
| Controller | Silicon Motion SM2259XT2 |
Compare product Compared to the test winner*
v0.567a Drive: 0(ATA) OS: 10.0 build 19045 Model: SSD 2000GB Fw : 1007B Size : 1907729 MB [2000.4 GB] From smart : [SMI2259XT] [1007B] [YMTC3] Controller : SM2259XA bufferless FlashID: 0x9b,0xc5,0x29,0x49,0x20,0x0,0x0,0x0 - YMTC 3dv3-128L(x2-9060) TLC 16k 1024Gb/CE 512Gb/die 4Plane/die Channel: 2 CE : 8 TotDie : 32 Plane : 4 Die/Ce : 2 Ch map : 0x03 CE map : 0xFF Inter. : 16 First Fblock : 2 Total Fblock : 495 Total Hblock : 29809 Fblock Per Ce : 495 Fblock Per Die: 495 Original Spare Block Count : 32 Vendor Marked Bad Block : 0 Bad Block From Pretest : 7
We put the Integral SATA SSD through a detailed test. You can find the test result / test report here:

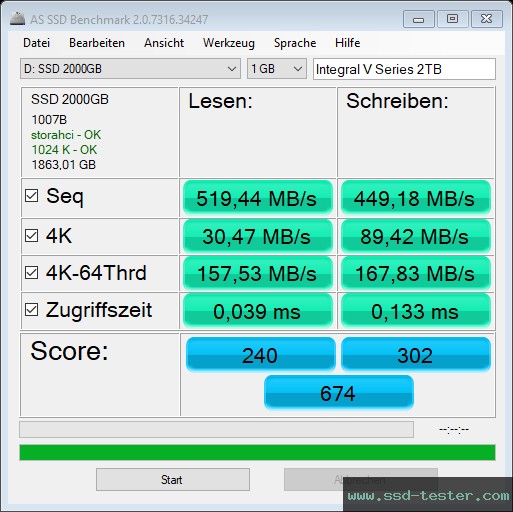

AS SSD Benchmark
Standard performance test
The standard test was performed with a 1 GB file. A total score of 674 points was achieved.
Copy performance test
A common everyday scenario is simulated here. Three test folders are created:
- ISO (folder with two large files)
- Program (folder with many small files)
- Game (folder with small and large files)
The three folders are copied using the Windows copy command (cache remains enabled). The real-world test from 26 June 2025 shows performance during simultaneous write and read operations. The lower the duration, the better.
| AS SSD Copy Benchmark | Transfer rate: | Duration: |
|---|---|---|
| ISO two large files |
941.04 MB/s |
1.14 s |
| Program typical program folder with many small files |
1,165.51 MB/s |
1.21 s |
| Game a game folder with small and large files |
1,615.58 MB/s |
0.85 s |

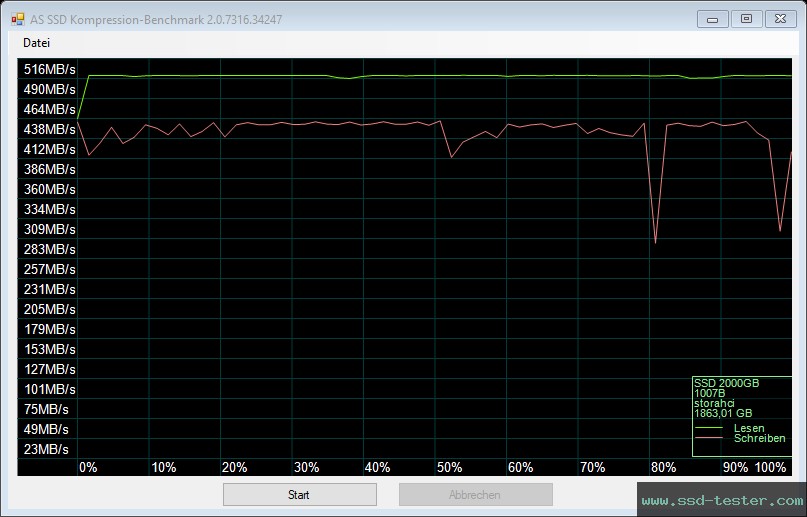

Compression performance test
Here, speed is measured depending on how compressible the data is.

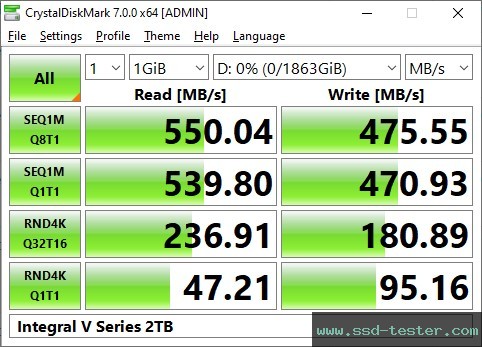

CrystalDiskMark Benchmark
Similar to AS SSD, two sequential and two random performance tests are carried out here and the write and read speed (manufacturer specs: 520 MB/s and 470 MB/s) the Integral SATA SSD is measured.
| CDM | Read [MB/s] | Write [MB/s] |
|---|---|---|
| SEQ1M Q8T1 |
550.04 |
475.55 |
| SEQ1M Q1T1 |
539.80 |
470.93 |
| RND4K Q32T16 |
236.91 |
180.89 |
| RND4K Q1T1 |
47.21 |
95.16 |
IOPS (Input/Output operations per second)
| CDM | Read [IOPS] | Write [IOPS] |
|---|---|---|
| SEQ1M Q8T1 |
524.60 |
453.50 |
| SEQ1M Q1T1 |
514.80 |
449.10 |
| RND4K Q32T16 |
57,839.10 |
44,162.80 |
| RND4K Q1T1 |
11,526.10 |
23,232.70 |
Average latency
| CDM | Read [µs] | Write [µs] |
|---|---|---|
| SEQ1M Q8T1 |
15,218.00 |
17,578.00 |
| SEQ1M Q1T1 |
1,942.03 |
2,225.82 |
| RND4K Q32T16 |
8,836.71 |
11,570.60 |
| RND4K Q1T1 |
86.63 |
42.93 |

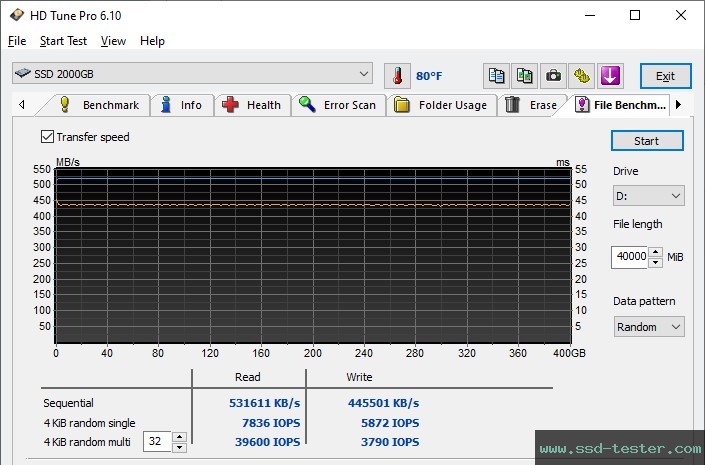

HD Tune Pro long-term test
A long-term test was performed to fully utilize the storage. You can see at what point the cache (if present) becomes full and write performance drops. A test file of 400 GB was written to the medium. The exact cache size could not be determined because the test file did not exhaust (push to the limit) the cache. The test file could at least be read with an average read speed of 532 MB/s and written at 446 MB/s.

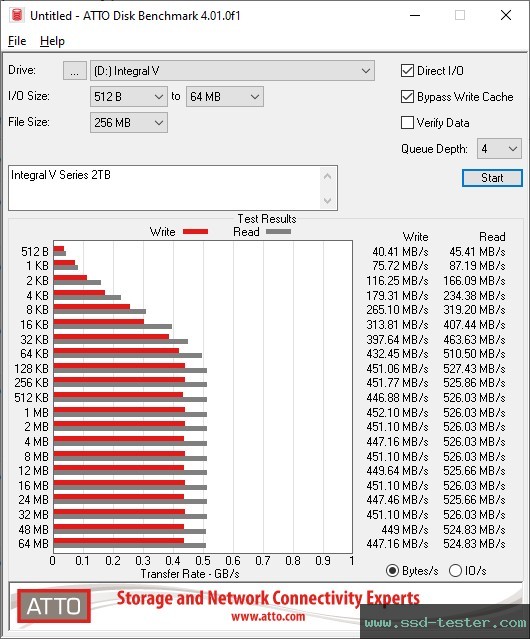

ATTO Disk Benchmark
Here, a 256 MB file is written to the Integral SATA SSD multiple times. The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster writing and reading usually becomes.

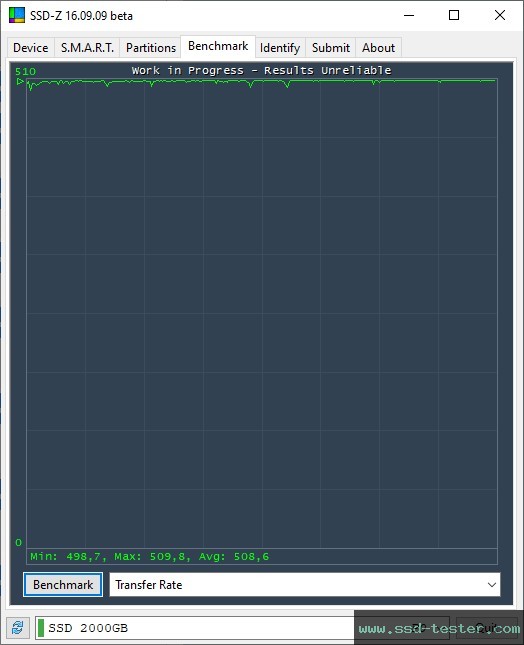

SSD-Z Benchmark
Similar to HD Tune, a 500 MB file is written to the Integral SATA SSD here. The transfer data is displayed. The more consistent the line, the better. Unfortunately, the tool no longer works correctly from around 4,000 MB/s and no line is displayed (and sometimes incorrect min/max data is shown).
You can find information about the test system at the bottom of the homepage.
