KIOXIA EXCERIA PLUS G3 1TB M.2 SSD

Here you will find a detailed speed, performance and benchmark test review. Tested was the M.2 NVMe SSD EXCERIA PLUS G3 with 1TB (LSD10Z001TG8) from the brand KIOXIA.

Performance score
6695
Price/GB
0.28 $
Read
5,000 MB/s
 Write
3,900 MB/s
Connector
M.2 2280
Interface
PCIe 4.0 x4
Technical specifications (manufacturer information)

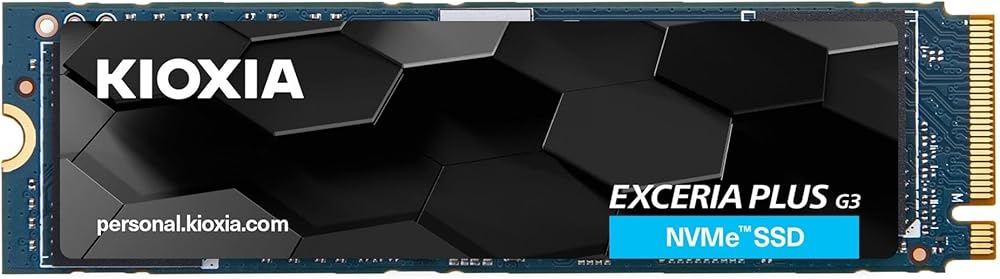

Product image Product image EXCERIA PLUS G3
Manufacturer KIOXIA
Model number LSD10Z001TG8
Capacity 1024 GB (932 GiB)
pSLC cache 225 GB approx.
Read speed 5000 MB/s
Write speed 3900 MB/s
Interface PCIe 4.0 x4
Connector M.2 2280
Memory module (NAND) TLC
DRAM cache No
TBW (Total Bytes Written) 600 terabyte
Warranty 5 Years
Controller Phison PS5021-E21T

Product
Score
Price
KIOXIA EXCERIA PLUS G3 2TB
6251
402 $
  Current price
~ 286 $
(= 0.28 $ / GB)
In stock
Buy now
Retailer     #ad
Compare product Compared to the test winner*
Read speed
68 %
Write speed
58 %
*) Test result rated by AS SSD score within the same capacity.
v0.386a
OS: 10.0 build 19045
Drive   : 0(NVME)
Driver  : W10(0:3)
Model   : KIOXIA-EXCERIA PLUS G3 SSD
Fw      : ELFA01.2
HMB     : 65536 - 65536 KB (Enabled, 64 M)
Size    : 953869 MB [1000.2 GB]
LBA Size: 512
AdminCmd: 0x00 0x01 0x02 0x04 0x05 0x06 0x08 0x09 0x0A 0x0C 0x10 0x11 0x14 0x80 0x81 0x82 0xD0 0xD1 0xD2 0xE0 0xE1 0xE2
I/O Cmd : 0x00 0x01 0x02 0x04 0x05 0x08 0x09
F/W     : ELFA01.2
P/N     :
Bank00: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x0,0x0 - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank01: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x0,0x0 - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank02: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x0,0x0 - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank03: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x0,0x0 - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank04: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x0,0x0 - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank05: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x0,0x0 - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank06: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x0,0x0 - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank07: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x0,0x0 - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank08: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x0,0x0 - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank09: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x0,0x0 - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank10: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x0,0x0 - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank11: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x0,0x0 - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank12: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x0,0x0 - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank13: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x0,0x0 - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank14: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x0,0x0 - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Bank15: 0x98,0x3e,0x98,0x3,0x76,0xe4,0x0,0x0 - Toshiba 112L BiCS5 TLC 16k 512Gb/CE 512Gb/die 2Plane/die
Controller    : PS5021-E21
CPU Clk       : 1000
Flash CE      : 16
Flash Channel : 4
Interleave    : 4
Flash CE Mask : [++++++++ ++++++++ -------- --------]
Flash Clk,MT  : 1600
Die per CE    : 1
Block per CE  : 3324
Page per Block: 1344
Bit Per Cell  : 3(TLC)
PMIC Type     : PS6103
PE Cycle Limit: 50000/1630
SLC cache     : 0x3700000/0x1E00000

JEDEC     : KIOXIA       TH58LKT1T25BA8C      [C63E]
Page size : 18336 (16384+1952)
Page/Block: 1344
Block/LUN : 3324
LUN/Chip  : 1
Bit/Cell  : 3 (TLC)
PlanAdrBit: 1 (2 plane)
Endurance : 0

We put the KIOXIA NVMe M.2 SSD through a detailed test. You can find the test result / test report here:

AS SSD Benchmark

Standard performance test

The standard test was performed with a 5 GB file. A total score of 6695 points was achieved.

AS SSD Benchmark Screenshot: TEST: KIOXIA EXCERIA PLUS G3 1TB M.2 SSD
AS SSD Read: Write:
Seq
in megabytes per second
4,309.08 MB/s
3,638.50 MB/s
4K
in megabytes per second
67.39 MB/s
221.49 MB/s
4K-64Thrd
in megabytes per second
1,771.53 MB/s
2,704.27 MB/s
Access time
in milliseconds
0.016 ms
0.086 ms
Score
2270
3290
Total score
6695

Copy performance test

A common everyday scenario is simulated here. Three test folders are created:

  • ISO (folder with two large files)
  • Program (folder with many small files)
  • Game (folder with small and large files)

The three folders are copied using the Windows copy command (cache remains enabled). The real-world test from 24 January 2024 shows performance during simultaneous write and read operations. The lower the duration, the better.

AS SSD TEST: KIOXIA EXCERIA PLUS G3 1TB M.2 SSD
AS SSD Copy Benchmark Transfer rate: Duration:
ISO
two large files
1,948.00 MB/s
1.18 s
Program
typical program folder with many small files
1,143.55 MB/s
6.16 s
Game
a game folder with small and large files
1,935.31 MB/s
3.57 s

Compression performance test

Here, speed is measured depending on how compressible the data is.

AS SSD TEST: KIOXIA EXCERIA PLUS G3 1TB M.2 SSD

CrystalDiskMark Benchmark

Similar to AS SSD, two sequential and two random performance tests are carried out here and the write and read speed (manufacturer specs: 5000 MB/s and 3900 MB/s) the KIOXIA SSD is measured.

CrystalDiskMark Benchmark Screenshot: TEST: KIOXIA EXCERIA PLUS G3 1TB M.2 SSD
CDM Read [MB/s] Write [MB/s]
SEQ1M
Q8T1
5,062.90
3,948.74
SEQ1M
Q1T1
3,254.36
3,951.84
RND4K
Q32T16
3,199.74
3,107.48
RND4K
Q1T1
72.48
248.73

IOPS (Input/Output operations per second)

CDM Read [IOPS] Write [IOPS]
SEQ1M
Q8T1
4,828.40
3,765.80
SEQ1M
Q1T1
3,103.60
3,768.80
RND4K
Q32T16
781,187.00
758,661.00
RND4K
Q1T1
17,696.00
60,726.10

Average latency

CDM Read [µs] Write [µs]
SEQ1M
Q8T1
1,655.80
2,120.76
SEQ1M
Q1T1
322.01
265.10
RND4K
Q32T16
653.76
672.80
RND4K
Q1T1
56.40
16.36

HD Tune Pro long-term test

A long-term test was performed to fully utilize the storage. You can see at what point the cache (if present) becomes full and write performance drops. A test file of 300 GB was written to the medium. After approx. 225 GB, the cache was full and performance was throttled.
The test file could at least be read with an average read speed of 3,372 MB/s and written at 1,614 MB/s.

HD Tune endurance test TEST: KIOXIA EXCERIA PLUS G3 1TB M.2 SSD

HD Tune Pro Benchmark

HD Tune writes a 5 GB file to the KIOXIA NVMe M.2 SSD. The transfer data of the read speed is displayed graphically. The minimum, maximum and average values are also determined. The measured access time and burst rate are also shown.

HD Tune TEST: KIOXIA EXCERIA PLUS G3 1TB M.2 SSD

ATTO Disk Benchmark

Here, a 256 MB file is written to the KIOXIA NVMe M.2 SSD multiple times. The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster writing and reading usually becomes.

ATTO Disk Benchmark TEST: KIOXIA EXCERIA PLUS G3 1TB M.2 SSD

SSD-Z Benchmark

Similar to HD Tune, a 500 MB file is written to the KIOXIA NVMe M.2 SSD here. The transfer data is displayed. The more consistent the line, the better. Unfortunately, the tool no longer works correctly from around 4,000 MB/s and no line is displayed (and sometimes incorrect min/max data is shown).

SSD-Z TEST: KIOXIA EXCERIA PLUS G3 1TB M.2 SSD


You can find information about the test system at the bottom of the homepage.
