ORICO i560 2TB SATA SSD

Here you will find a detailed speed, performance and benchmark test review. Tested was the SATA SSD i560 with 2TB (NEWi560-2TB-GY-BP) from the brand ORICO.

Performance score
699
Price/GB
n/a
Read
550 MB/s
Write
500 MB/s
Connector
2.5"
Interface
SATA 6 Gbps
Technical specifications (manufacturer information)

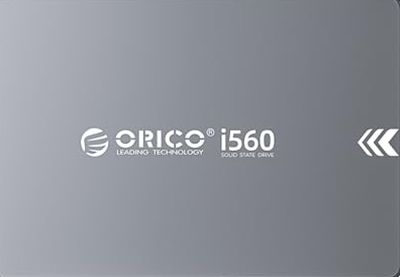

Product image Product image i560
Manufacturer ORICO
Model number NEWi560-2TB-GY-BP
Capacity 2048 GB (1908 GiB)
pSLC cache >300 GB approx.
Read speed 550 MB/s
Write speed 500 MB/s
Interface SATA 6 Gbps
Connector 2.5"
Memory module (NAND) TLC
TBW (Total Bytes Written) 800 terabyte
Controller Silicon Motion SM2259XT
  Current price
n/a
(= n/a / GB)
Stock status unknown
Buy now
Retailer     #ad
Compare product Compared to the test winner*
Read speed
99 %
Write speed
89 %
*) Test result rated by AS SSD score within the same capacity.
   v0.567a
Drive: 0(ATA)
OS: 10.0 build 19045
Model: ORICO
Fw   : X1113A0
Size : 1953514 MB [2048.4 GB]
From smart : [SMI2259XT] [X1113A0 00] [N4PA0]
Controller : SM2259XA bufferless
FlashID: 0x89,0x9,0x28,0x32,0xc2,0x0,0x0,0x0 - Intel TLC
Channel: 2
CE     : 6
TotDie : 12
Plane  : 4
Die/Ce : 1
Ch map : 0x03
CE map : 0x77
Inter. : 6
First Fblock  :    2
Total Fblock  :  254
Total Hblock  : 30524
Fblock Per Ce :  254
Fblock Per Die:  254
Original Spare Block Count :    15
Vendor Marked Bad Block    :     0
Bad Block From Pretest     :     8

We put the ORICO SATA SSD through a detailed test. You can find the test result / test report here:

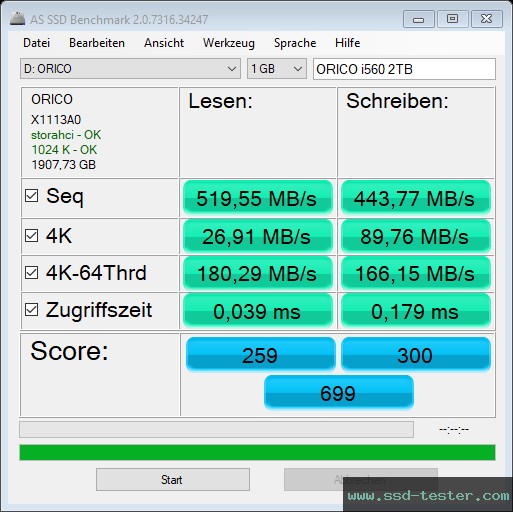

AS SSD Benchmark

Standard performance test

The standard test was performed with a 1 GB file. A total score of 699 points was achieved.

AS SSD Benchmark Screenshot: TEST: ORICO i560 2TB
AS SSD Read: Write:
Seq
in megabytes per second
519.55 MB/s
443.77 MB/s
4K
in megabytes per second
26.91 MB/s
89.76 MB/s
4K-64Thrd
in megabytes per second
180.29 MB/s
166.15 MB/s
Access time
in milliseconds
0.039 ms
0.179 ms
Score
259
300
Total score
699

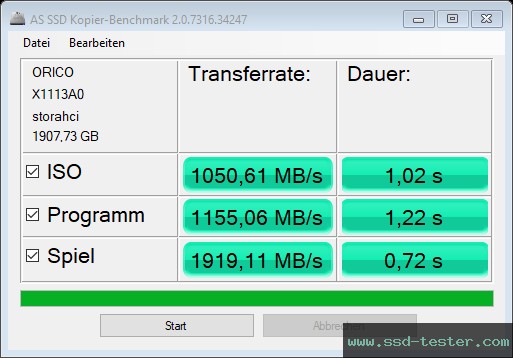

Copy performance test

A common everyday scenario is simulated here. Three test folders are created:

  • ISO (folder with two large files)
  • Program (folder with many small files)
  • Game (folder with small and large files)

The three folders are copied using the Windows copy command (cache remains enabled). The real-world test from 26 June 2025 shows performance during simultaneous write and read operations. The lower the duration, the better.

AS SSD TEST: ORICO i560 2TB
AS SSD Copy Benchmark Transfer rate: Duration:
ISO
two large files
1,050.61 MB/s
1.02 s
Program
typical program folder with many small files
1,155.06 MB/s
1.22 s
Game
a game folder with small and large files
1,919.11 MB/s
0.72 s

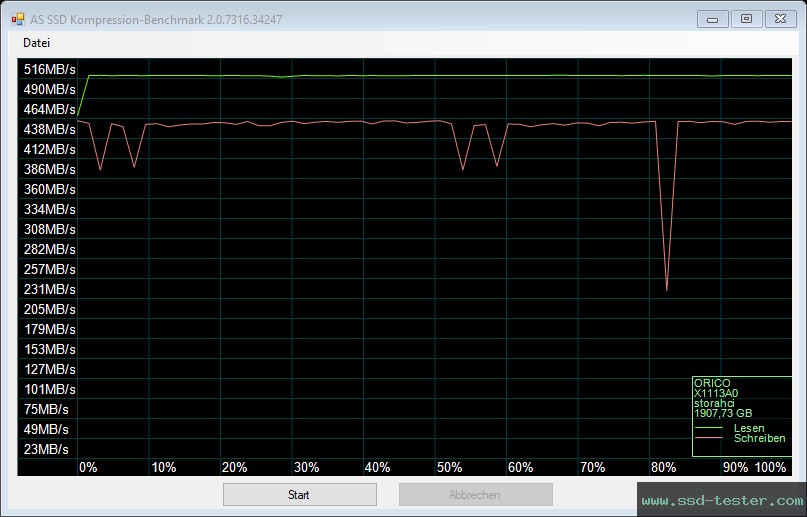

Compression performance test

Here, speed is measured depending on how compressible the data is.

AS SSD TEST: ORICO i560 2TB

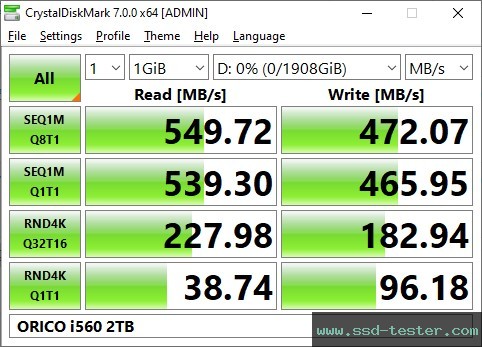

CrystalDiskMark Benchmark

Similar to AS SSD, two sequential and two random performance tests are carried out here and the write and read speed (manufacturer: 550 MB/s and 500 MB/s) the ORICO SATA SSD is determined.

CrystalDiskMark Benchmark Screenshot: TEST: ORICO i560 2TB
CDM Read [MB/s] Write [MB/s]
SEQ1M
Q8T1
549.72
472.07
SEQ1M
Q1T1
539.30
465.95
RND4K
Q32T16
227.98
182.94
RND4K
Q1T1
38.74
96.18

IOPS (Input/Output operations per second)

CDM Read [IOPS] Write [IOPS]
SEQ1M
Q8T1
524.30
450.20
SEQ1M
Q1T1
514.30
444.40
RND4K
Q32T16
55,658.40
44,663.60
RND4K
Q1T1
9,458.70
23,481.90

Average latency

CDM Read [µs] Write [µs]
SEQ1M
Q8T1
15,228.90
17,705.70
SEQ1M
Q1T1
1,943.89
2,249.13
RND4K
Q32T16
9,182.25
11,446.10
RND4K
Q1T1
105.60
42.47

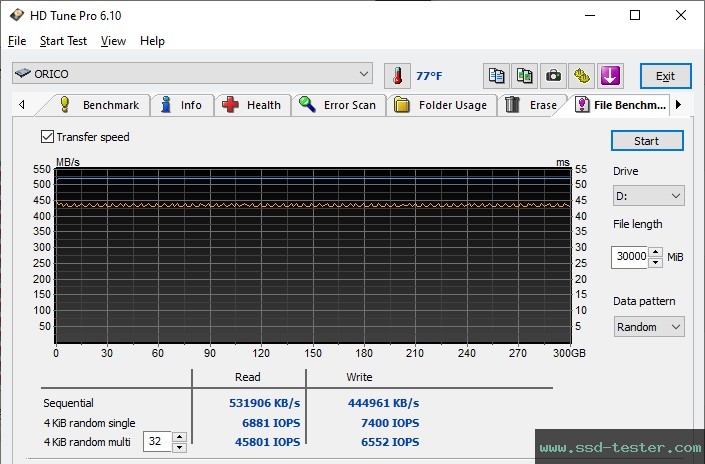

HD Tune Pro long-term test

A long-term test was performed to fully utilize the storage. You can see from when a possible cache is full and write performance drops. A test file of 300 GB was written to the medium. The exact cache size could not be determined because the test file did not exhaust (push to the limit) the cache. The test file could at least be read with an average read speed of 532 MB/s and written at 445 MB/s.

HD Tune endurance test TEST: ORICO i560 2TB

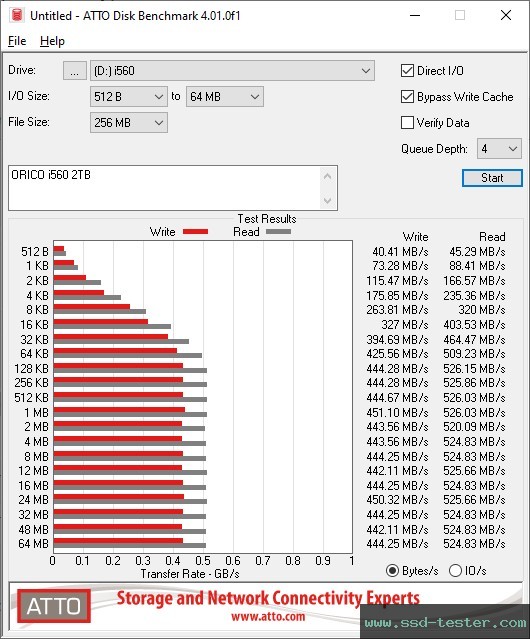

ATTO Disk Benchmark

Here, a 256 MB file is written to the ORICO SATA SSD multiple times. The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster writing and reading usually becomes.

ATTO Disk Benchmark TEST: ORICO i560 2TB

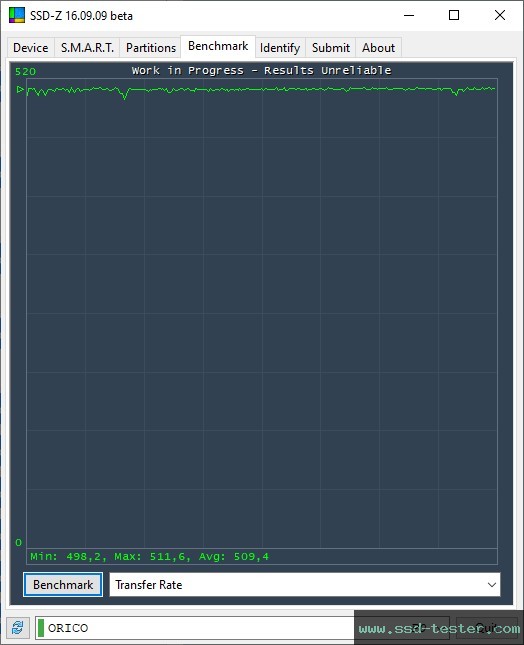

SSD-Z Benchmark

Similar to HD Tune, a 500 MB file is written to the ORICO SATA SSD here. The transfer data is displayed. The more consistent the line, the better. Unfortunately, the tool no longer works correctly from around 4,000 MB/s and no line is displayed (and sometimes incorrect min/max data is shown).

SSD-Z TEST: ORICO i560 2TB


You can find information about the test system at the bottom of the homepage.
