Patriot P400 Lite 1TB M.2 SSD

Here you will find a detailed speed, performance and benchmark test review. Tested was the M.2 NVMe SSD P400 Lite with 1TB (P400LP1KGM28H) from the brand Patriot.

Performance score
5823
Price/GB
0.14 $
Read
3,500 MB/s
 Write
2,700 MB/s
Connector
M.2 2280
Interface
PCIe 4.0 x4
Technical specifications (manufacturer information)
Product image Product image P400 Lite
Manufacturer Patriot
Model number P400LP1KGM28H
Capacity 1024 GB (932 GiB)
pSLC cache 94 GB approx.
Read speed 3500 MB/s
Write speed 2700 MB/s
Interface PCIe 4.0 x4
Connector M.2 2280
Memory module (NAND) TLC
DRAM cache No
TBW (Total Bytes Written) 560 terabyte
Warranty 5 Years
Controller Maxio MAP1602

Product
Score
Price
Patriot P400 Lite 2TB
4405
275 $
  Current price
~ 145 $
(= 0.14 $ / GB)
In stock
Buy now
Retailer     #ad
Compare product Compared to the test winner*
Read speed
53 %
Write speed
51 %
*) Test result rated by AS SSD score within the same capacity.
v0.37a
OS: 10.0 build 19045
Drive   : 0(NVME)
Scsi    : 2
Driver  : W10
Model   : Patriot P400L 1000GB
Fw      : SN11778
HMB     : 40960 - 40960 KB (Enabled, 40 M)
Size    : 953869 MB [1000.2 GB]
LBA Size: 512
AdminCmd: 0x00 0x01 0x02 0x04 0x05 0x06 0x08 0x09 0x0A 0x0C 0x10 0x11 0x14 0x80 0x81 0x82 0x84 0xC1 0xC2 0xC5 0xC6 0xFC
I/O Cmd : 0x00 0x01 0x02 0x04 0x05 0x08 0x09 0x80
Firmware id string[0C0]	: MKSSD_101000000117783100,Jun 26 2023,16:46:24,MAP1602,YIQZAA4C
Project id string[080]	: r:/code/SKV7T/outputCS
Controller		: MAP1602
NAND string		: H25G9TC18488
NAND MaxPE cycles	: 1500
NAND Freq		: 1200
Channel number		: 4
CE number		: 4
Total bank		: 16
Flash type		: TLC
Blocks/CE		: 1084
Pages/Block		: 4224
Page size		: 16
Planes(?)		: 4
Die/CE			: 1
HSPD capacity		: 187
HSPD blocks		: 12
Normal blocks		: 259
List may not be complete
Ch0CE0: 0xad,0x7e,0x28,0xb,0x0,0xc0,0x0 - Hynix 3dv7-176L TLC 16k 512Gb/CE 512Gb/die
Ch1CE0: 0xad,0x7e,0x28,0xb,0x0,0xc0,0x0 - Hynix 3dv7-176L TLC 16k 512Gb/CE 512Gb/die
Ch2CE0: 0xad,0x7e,0x28,0xb,0x0,0xc0,0x0 - Hynix 3dv7-176L TLC 16k 512Gb/CE 512Gb/die
Ch3CE0: 0xad,0x7e,0x28,0xb,0x0,0xc0,0x0 - Hynix 3dv7-176L TLC 16k 512Gb/CE 512Gb/die

We put the Patriot NVMe M.2 SSD through a detailed test. You can find the test result / test report here:

AS SSD Benchmark

Standard performance test

The standard test was performed with a 5 GB file. A total score of 5823 points was achieved.

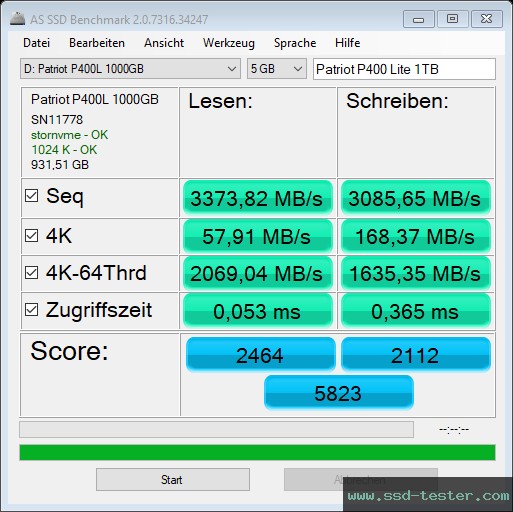

AS SSD Benchmark Screenshot: TEST: Patriot P400 Lite 1TB M.2 SSD
AS SSD Read: Write:
Seq
in megabytes per second
3,373.82 MB/s
3,085.65 MB/s
4K
in megabytes per second
57.91 MB/s
168.37 MB/s
4K-64Thrd
in megabytes per second
2,069.04 MB/s
1,635.35 MB/s
Access time
in milliseconds
0.053 ms
0.365 ms
Score
2464
2112
Total score
5823

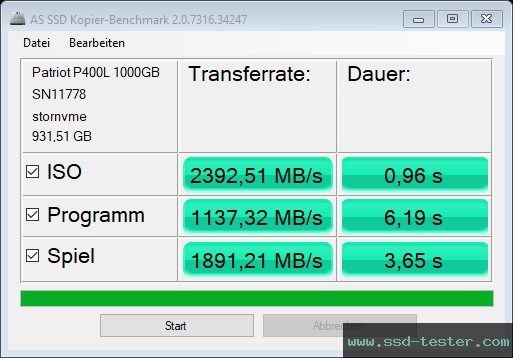

Copy performance test

A common everyday scenario is simulated here. Three test folders are created:

  • ISO (folder with two large files)
  • Program (folder with many small files)
  • Game (folder with small and large files)

The three folders are copied using the Windows copy command (cache remains enabled). The real-world test from 18 July 2025 shows performance during simultaneous write and read operations. The lower the duration, the better.

AS SSD TEST: Patriot P400 Lite 1TB M.2 SSD
AS SSD Copy Benchmark Transfer rate: Duration:
ISO
two large files
2,392.51 MB/s
0.96 s
Program
typical program folder with many small files
1,137.32 MB/s
6.19 s
Game
a game folder with small and large files
1,891.21 MB/s
3.65 s

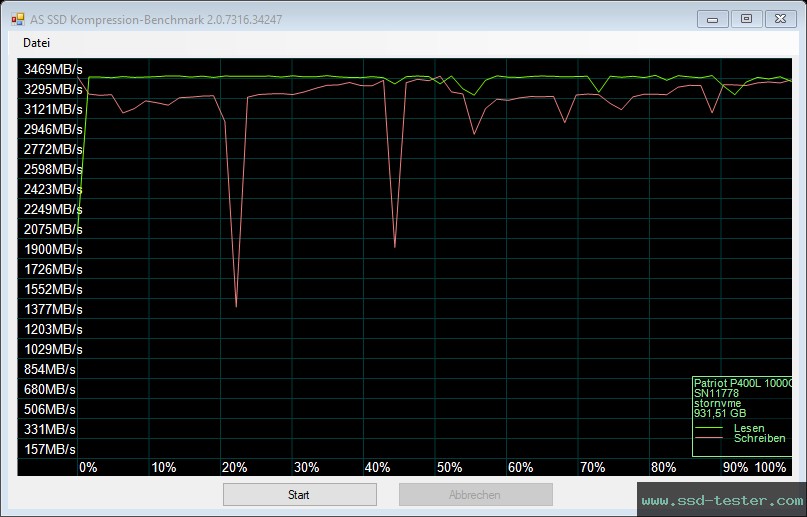

Compression performance test

Here, speed is measured depending on how compressible the data is.

AS SSD TEST: Patriot P400 Lite 1TB M.2 SSD

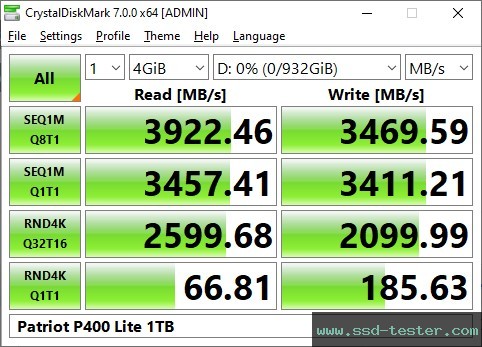

CrystalDiskMark Benchmark

Similar to AS SSD, two sequential and two random performance tests are carried out here and the write and read speed (manufacturer specs: 3500 MB/s and 2700 MB/s) the Patriot SSD is measured.

CrystalDiskMark Benchmark Screenshot: TEST: Patriot P400 Lite 1TB M.2 SSD
CDM Read [MB/s] Write [MB/s]
SEQ1M
Q8T1
3,922.46
3,469.59
SEQ1M
Q1T1
3,457.41
3,411.21
RND4K
Q32T16
2,599.68
2,099.99
RND4K
Q1T1
66.81
185.63

IOPS (Input/Output operations per second)

CDM Read [IOPS] Write [IOPS]
SEQ1M
Q8T1
3,740.80
3,308.90
SEQ1M
Q1T1
3,297.20
3,253.20
RND4K
Q32T16
634,688.00
512,693.00
RND4K
Q1T1
16,311.80
45,319.80

Average latency

CDM Read [µs] Write [µs]
SEQ1M
Q8T1
2,137.02
2,413.46
SEQ1M
Q1T1
303.10
306.72
RND4K
Q32T16
804.66
997.24
RND4K
Q1T1
61.19
21.93

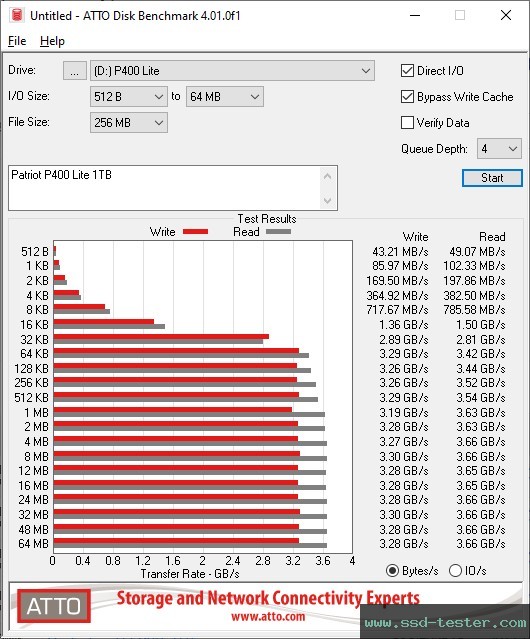

ATTO Disk Benchmark

Here, a 256 MB file is written to the Patriot NVMe M.2 SSD multiple times. The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster writing and reading usually becomes.

ATTO Disk Benchmark TEST: Patriot P400 Lite 1TB M.2 SSD

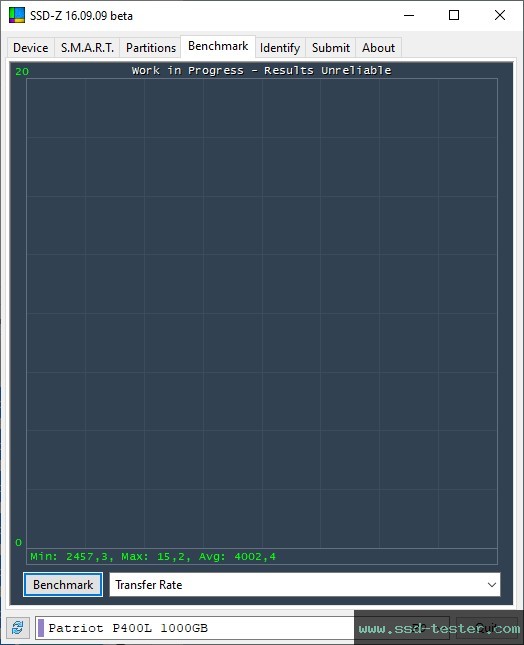

SSD-Z Benchmark

Similar to HD Tune, a 500 MB file is written to the Patriot NVMe M.2 SSD here. The transfer data is displayed. The more consistent the line, the better. Unfortunately, the tool no longer works correctly from around 4,000 MB/s and no line is displayed (and sometimes incorrect min/max data is shown).

SSD-Z TEST: Patriot P400 Lite 1TB M.2 SSD


You can find information about the test system at the bottom of the homepage.
