PHIXERO P3000 512GB M.2 SSD

Here you will find a detailed speed, performance and benchmark test review. Tested was the M.2 NVMe SSD P3000 with 512GB (P3000-512GB-GR-BP) from the brand PHIXERO.

Performance score
1913
Price/GB
n/a
Read
3,000 MB/s
 Write
1,300 MB/s
Connector
M.2 2280
Interface
PCIe 3.0 x4
Technical specifications (manufacturer information)
Product image Product image P3000
Manufacturer PHIXERO
Model number P3000-512GB-GR-BP
Capacity 512 GB (477 GiB)
pSLC cache 130 GB approx.
Read speed 3000 MB/s
Write speed 1300 MB/s
Interface PCIe 3.0 x4
Connector M.2 2280
Memory module (NAND) QLC
DRAM cache No
Controller Maxio MAP1202

Product
Score
Price
PHIXERO P3000 1TB
3073
n/a
  Current price
n/a
(= n/a / GB)
 Stock status unknown
Buy now
Retailer     #ad
Compare product Compared to the test winner*
Read speed
100 %
Write speed
100 %
*) Test result rated by AS SSD score within the same capacity.
v0.37a
OS: 10.0 build 19045
Drive   : 0(NVME)
Scsi    : 2
Driver  : W10
Model   : PHIXERO
Fw      : SN19644
HMB     : 16384 - 16384 KB (Enabled, 16 M)
Size    : 488386 MB [512.1 GB]
LBA Size: 512
AdminCmd: 0x00 0x01 0x02 0x04 0x05 0x06 0x08 0x09 0x0A 0x0C 0x10 0x11 0x14 0x80 0x81 0x82 0x84 0xC1 0xC2
I/O Cmd : 0x00 0x01 0x02 0x04 0x05 0x08 0x09
Firmware id string[0C0]	: MKSSD_101000000018563100,Aug 24 2023,11:49:28,MAP1202,KC1UCA2H
Project id string[080]	: r:/01_FW3.1/branch_QLC_Solution
Controller		: MAP1202
NAND string		: PF29Fxx2AxCQK1
NAND MaxPE cycles	: 257
NAND Freq		: 5251
Channel number		: 0
CE number		: 132
Total bank		: 171
Flash type		: (32)
Blocks/CE		: 58832
Pages/Block		: 257
Page size		: 160
Planes(?)		: 10
Die/CE			: 226
HSPD capacity		: 58272
HSPD blocks		: 2703
Normal blocks		: 58783
Ch0CE0: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch1CE0: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch2CE0: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch3CE0: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch4CE0: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch5CE0: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch6CE0: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch7CE0: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch0CE1: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch1CE1: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch2CE1: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch3CE1: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch4CE1: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch5CE1: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch6CE1: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch7CE1: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch0CE2: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch1CE2: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch2CE2: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch3CE2: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch4CE2: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch5CE2: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch6CE2: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch7CE2: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch0CE3: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch3CE3: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch4CE3: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch5CE3: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch6CE3: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch7CE3: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch0CE4: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch1CE4: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch2CE4: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch3CE4: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch4CE4: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch5CE4: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch6CE4: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch7CE4: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch0CE5: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch1CE5: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch2CE5: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch3CE5: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch4CE5: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch5CE5: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch6CE5: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch7CE5: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch0CE6: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch1CE6: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch2CE6: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch3CE6: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch4CE6: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch5CE6: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch6CE6: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch7CE6: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch0CE7: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch1CE7: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch2CE7: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch3CE7: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch4CE7: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch5CE7: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch6CE7: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die
Ch7CE7: 0x89,0xd3,0xac,0x32,0xc6,0x0,0x0 - Intel 144L(N38A) QLC 1024Gb/CE 1024Gb/die

We put the PHIXERO NVMe M.2 SSD through a detailed test. You can find the test result / test report here:

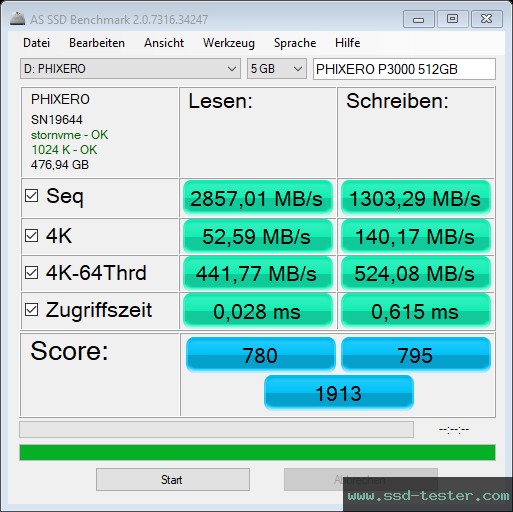

AS SSD Benchmark

Standard performance test

The standard test was performed with a 5 GB file. A total score of 1913 points was achieved.

AS SSD Benchmark Screenshot: TEST: PHIXERO P3000 512GB M.2 SSD
AS SSD Read: Write:
Seq
in megabytes per second
2,857.01 MB/s
1,303.29 MB/s
4K
in megabytes per second
52.59 MB/s
140.17 MB/s
4K-64Thrd
in megabytes per second
441.77 MB/s
524.08 MB/s
Access time
in milliseconds
0.028 ms
0.615 ms
Score
780
795
Total score
1913

Copy performance test

A common everyday scenario is simulated here. Three test folders are created:

  • ISO (folder with two large files)
  • Program (folder with many small files)
  • Game (folder with small and large files)

The three folders are copied using the Windows copy command (cache remains enabled). The real-world test from 26 September 2025 shows performance during simultaneous write and read operations. The lower the duration, the better.

AS SSD TEST: PHIXERO P3000 512GB M.2 SSD
AS SSD Copy Benchmark Transfer rate: Duration:
ISO
two large files
1,613.93 MB/s
1.42 s
Program
typical program folder with many small files
1,056.82 MB/s
6.66 s
Game
a game folder with small and large files
1,211.52 MB/s
5.70 s

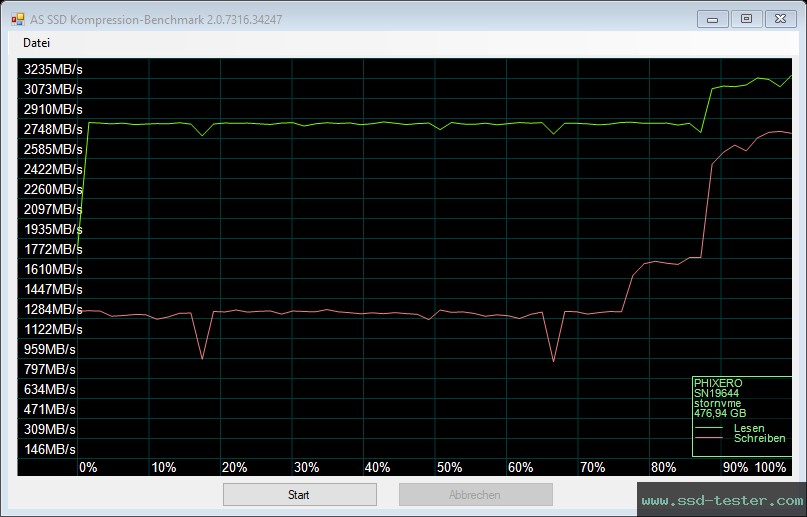

Compression performance test

Here, speed is measured depending on how compressible the data is.

AS SSD TEST: PHIXERO P3000 512GB M.2 SSD

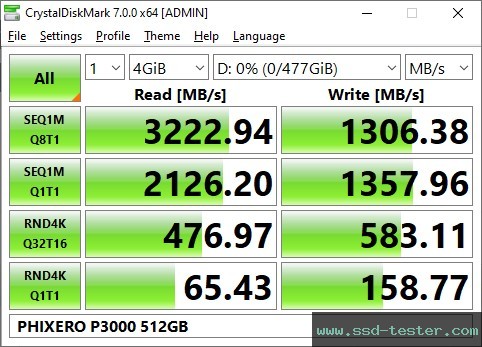

CrystalDiskMark Benchmark

Similar to AS SSD, two sequential and two random performance tests are carried out here and the write and read speed (manufacturer specs: 3000 MB/s and 1300 MB/s) the PHIXERO SSD is measured.

CrystalDiskMark Benchmark Screenshot: TEST: PHIXERO P3000 512GB M.2 SSD
CDM Read [MB/s] Write [MB/s]
SEQ1M
Q8T1
3,222.94
1,306.38
SEQ1M
Q1T1
2,126.20
1,357.96
RND4K
Q32T16
476.97
583.11
RND4K
Q1T1
65.43
158.77

IOPS (Input/Output operations per second)

CDM Read [IOPS] Write [IOPS]
SEQ1M
Q8T1
3,073.60
1,245.90
SEQ1M
Q1T1
2,027.70
1,295.10
RND4K
Q32T16
116,449.00
142,362.00
RND4K
Q1T1
15,975.10
38,762.50

Average latency

CDM Read [µs] Write [µs]
SEQ1M
Q8T1
2,601.27
6,408.06
SEQ1M
Q1T1
492.95
771.63
RND4K
Q32T16
4,391.90
3,593.38
RND4K
Q1T1
62.48
25.65

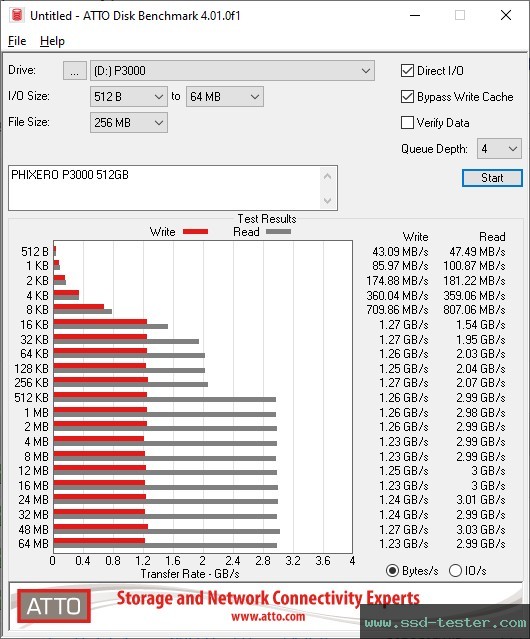

ATTO Disk Benchmark

Here, a 256 MB file is written to the PHIXERO NVMe M.2 SSD multiple times. The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster writing and reading usually becomes.

ATTO Disk Benchmark TEST: PHIXERO P3000 512GB M.2 SSD

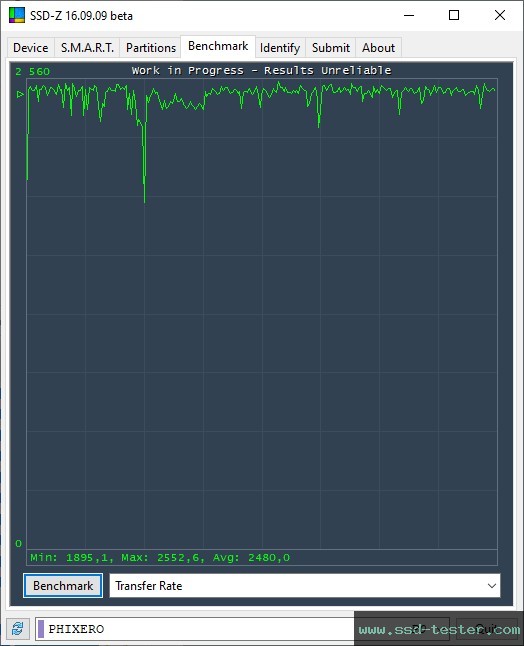

SSD-Z Benchmark

Similar to HD Tune, a 500 MB file is written to the PHIXERO NVMe M.2 SSD here. The transfer data is displayed. The more consistent the line, the better. Unfortunately, the tool no longer works correctly from around 4,000 MB/s and no line is displayed (and sometimes incorrect min/max data is shown).

SSD-Z TEST: PHIXERO P3000 512GB M.2 SSD


You can find information about the test system at the bottom of the homepage.
